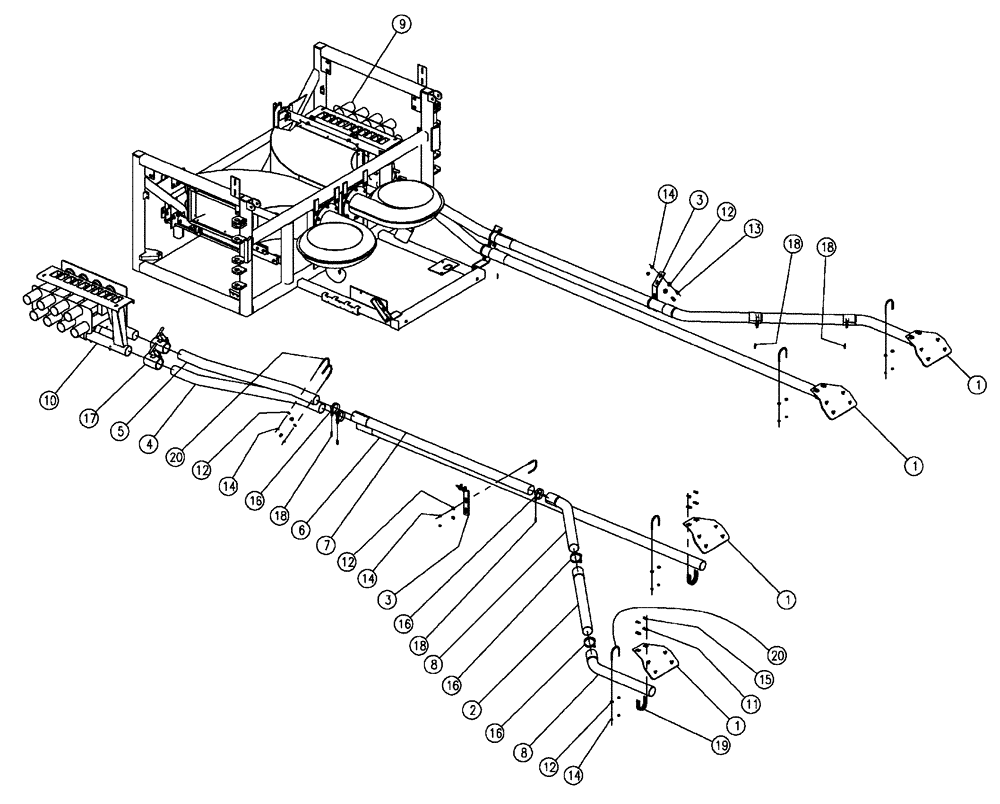

Запчасти Case IH 438 (04-023) - TUBES GROUP, MID, 2.5”, 60’ Boom Group

1

342226A1

DEFLECTOR

Assembly-Rear SS INS

4шт.

2

BN300746

TUBE

Swedged, 2.50 X 25.00

2шт.

3

BN300747

BRACKET

Tubes, Rear

2шт.

4

BN300749

TUBE

Formed, 2.5, 20~X 41.25

2шт.

5

BN300750

TUBE

Formed, 2.5, 10~X 41.25

2шт.

6

BN300755

RIGID TUBE

W/M, 2.50 X 110.25

2шт.

7

BN325223

TUBE

Weldment, 2.5" DIA.SS

2шт.

8

BN300794

TUBE

Formed, 2.5, 45 X 19.68

4шт.

9

BN303277

VENTURI

Group, Mid, 2.5, RH, See Fig 04-038

1шт.

10

BN322583

SENSOR

Venturi Group, Mid, 2.5, LH, See Fig 04-039

1шт.

11

BN50138

WASHER,1/4", SS

16шт.

12

BN50146

WASHER,3/8", Stainless

24шт.

13

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

14

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

24шт.

15

BN55359

LOCK NUT,1/4"-20, SS

16шт.

16

87271751

CLAMP

Hi-Torque

10шт.

17

BN67489

CLAMP,63.5mm ID

Pneumatic, 2.50

4шт.

18

BN68086

CAP

RND, Rubber, .25 ID x 1.00

10шт.

19

BN311494

U-BOLT

1/4 - 20 UNC, 2.5" SS

8шт.

20

BN21276

CLAMP

2 1/2" Muffler

10шт.
