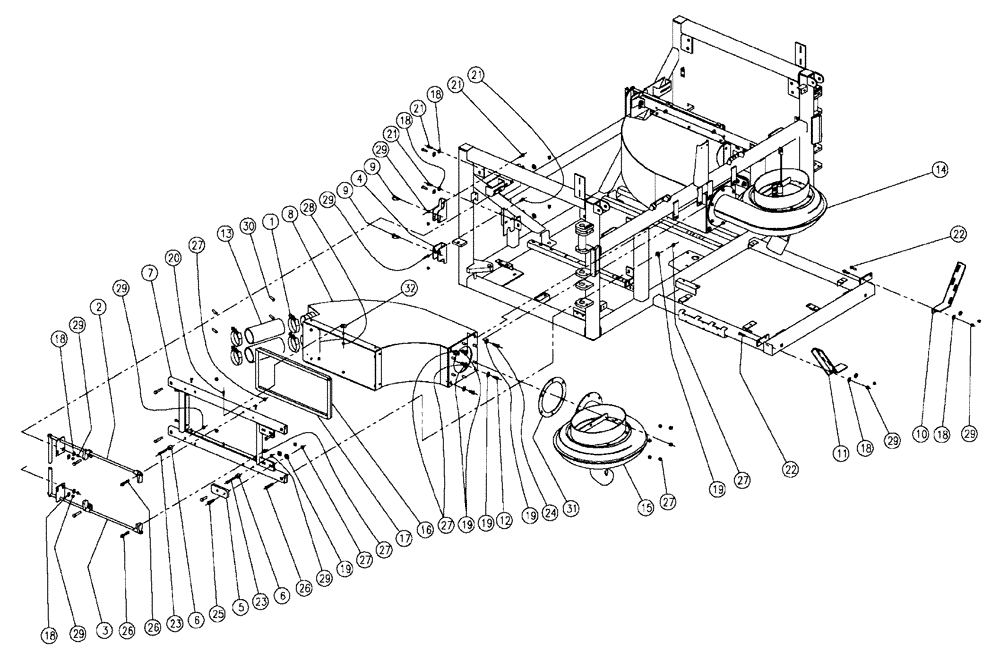

Запчасти Case IH 438 (04-018) - AIR SYSTEM GROUP, MID, 60’ & 70’ Boom Group

1

BN15497

CLAMP,76.2mm - 82.55mm

3 1/4", SS, T-Bolt

8шт.

2

BN300688

HANDLE

Lock, RH

2шт.

3

BN300689

HANDLE

Lock, LH

2шт.

4

BN300696

STOP

Handle Lock

4шт.

5

BN300697

STOP

Venturi, Side

2шт.

6

BN300698

STOP

Venturi, Bottom

4шт.

7

BN300699

FRAME

Airway Mount

2шт.

8

343300A1

AIR CHANNEL

Way

2шт.

9

BN15717

PIN

Snap, 1/4" x 1 3/4"

4шт.

10

86986587

BRACKET

Tubes, Rear, RH

1шт.

11

BN300741

BRACKET

W/M, Tubes, Rear, LH

1шт.

12

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

13

BN302845

AIR HOSE,27.00"

4шт.

14

BN303290

6 Inch, CCW See Fig. 04-019

1шт.

15

BN303291

6 Inch, CW See Fig. 04-021

1шт.

16

BN303334

SEAL

Airway, Side

4шт.

17

BN303335

DOOR SEAL

Airway, Top & Bottom

4шт.

18

BN50142

WASHER,5/16", Stainless Steel

20шт.

19

BN50146

WASHER,3/8", Stainless

28шт.

20

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

20шт.

21

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

16шт.

22

BN50234

BOLT,5/16"-18 X 1-1/4", Stainless Steel

4шт.

23

BN50241

BOLT,5/16"-18 X 2-1/4", Stainless Steel

4шт.

24

BN50258

BOLT,3/8"-16 X 1.25", Stainless

4шт.

25

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

4шт.

26

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

16шт.

27

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

40шт.

28

BN55359

LOCK NUT,1/4"-20, SS

20шт.

29

BN55361

NUT,5/16"-18, Nylon, Stainless

24шт.

30

BN68086

CAP

RND, Rubber, .25 ID x 1.00

8шт.

31

BN68580

GASKET

Fan To Airway

2шт.

32

BN23452

WASHER,13/32" x 1.25 " OD x 12 GA, SS

20шт.
