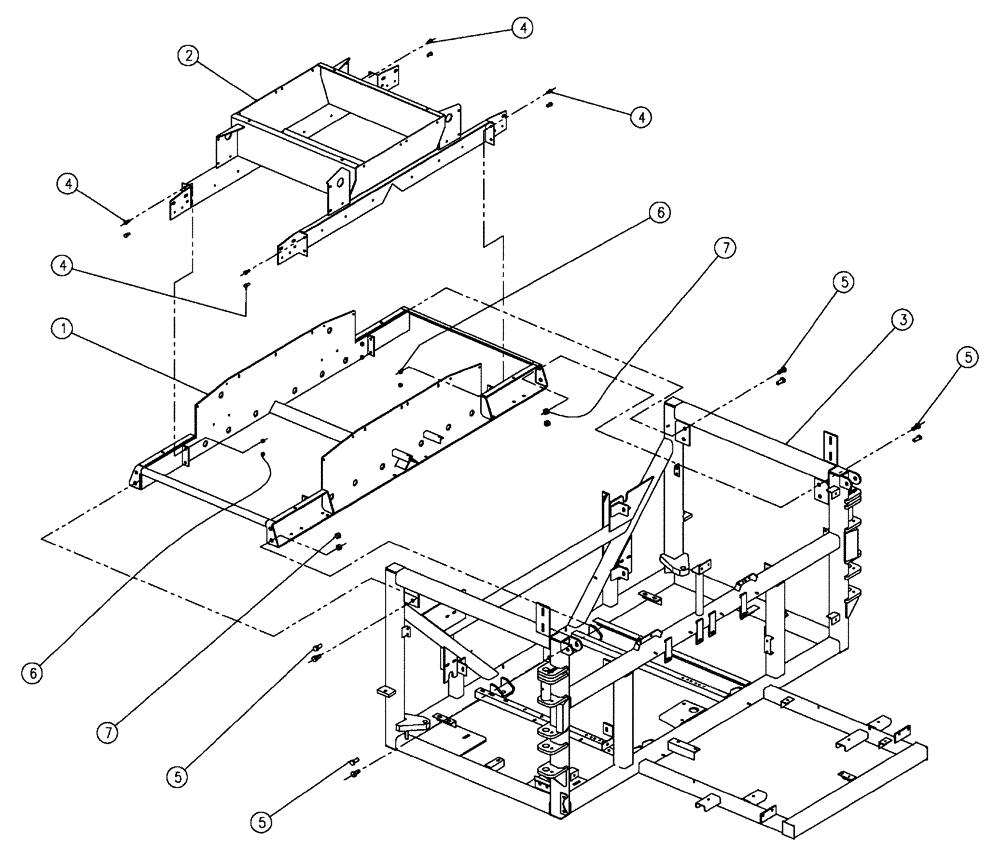

Запчасти Case IH 438 (04-016) - FRAME GROUP, FLEX, 60’ & 70’ Boom Group

1

BN307022

FRAME

W/M, Hopper Mount

1шт.

2

BN307023

FRAME

W/M, Gate Mount

1шт.

3

BN314172

FRAMEWORK

Meter W/M

1шт.

4

BN50476

BOLT,5/16"-18 x 0.75", Stainless

8шт.

5

BN50679

BOLT,1/2-13 X 1.25", Stainless

8шт.

6

BN55361

NUT,5/16"-18, Nylon, Stainless

8шт.

7

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

8шт.

8

88264

BOLT,Hex, 5/8" - 11 x 6", Gr 5

2шт.

9

85700693

NUT,5/8" - 11, Gr C

2шт.
