(04-013) - SKIRTING GROUP, FLEX, 60’ & 70’

Запчасти Case IH 438 (04-013) - SKIRTING GROUP, FLEX, 60’ & 70’ Boom Group

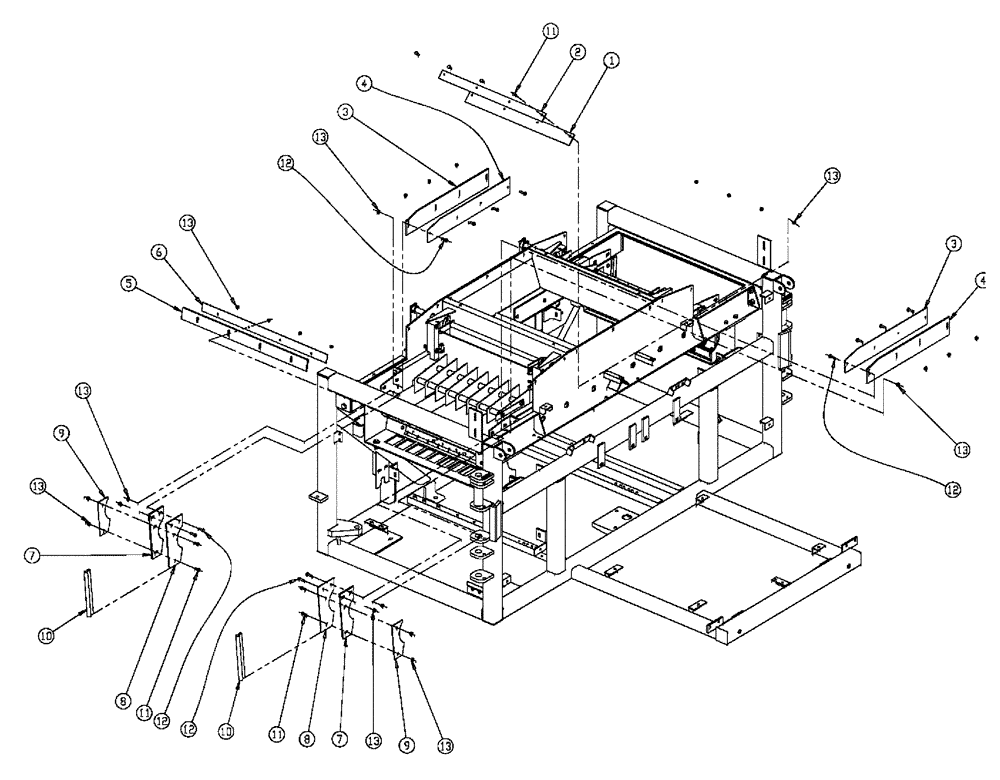

Схема запчастей Case IH 438 - (04-013) - SKIRTING GROUP, FLEX, 60’ & 70’ Boom Group
9
13
5
13
10
12
13
13
8
6
4
9
4
10
12
11
3
3
12
2
7
12
1
11
13
13
11
7
13
13
q8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN307227

SEAL

Center, Conveyor

2шт.

2

BN307228

STRAP

Seal, Center, Convey

2шт.

3

BN307229

SEAL

Side, Conveyor

4шт.

4

BN307230

STRAP

Seal, Side, Conveyor

4шт.

5

BN307231

SEAL

Belt, Bottom

2шт.

6

BN307232

STRAP

Seal, Belt, Bottom

2шт.

7

BN307233

SEAL

Belt, Side

4шт.

8

BN307234

STRAP

Seal, Belt, Side

4шт.

9

BN307235

SUPPORT

Seal, Belt, Side

4шт.

10

BN307236

DOOR SEAL

Divider Door

4шт.

11

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

16шт.

12

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

24шт.

13

BN55359

LOCK NUT,1/4"-20, SS

48шт.
