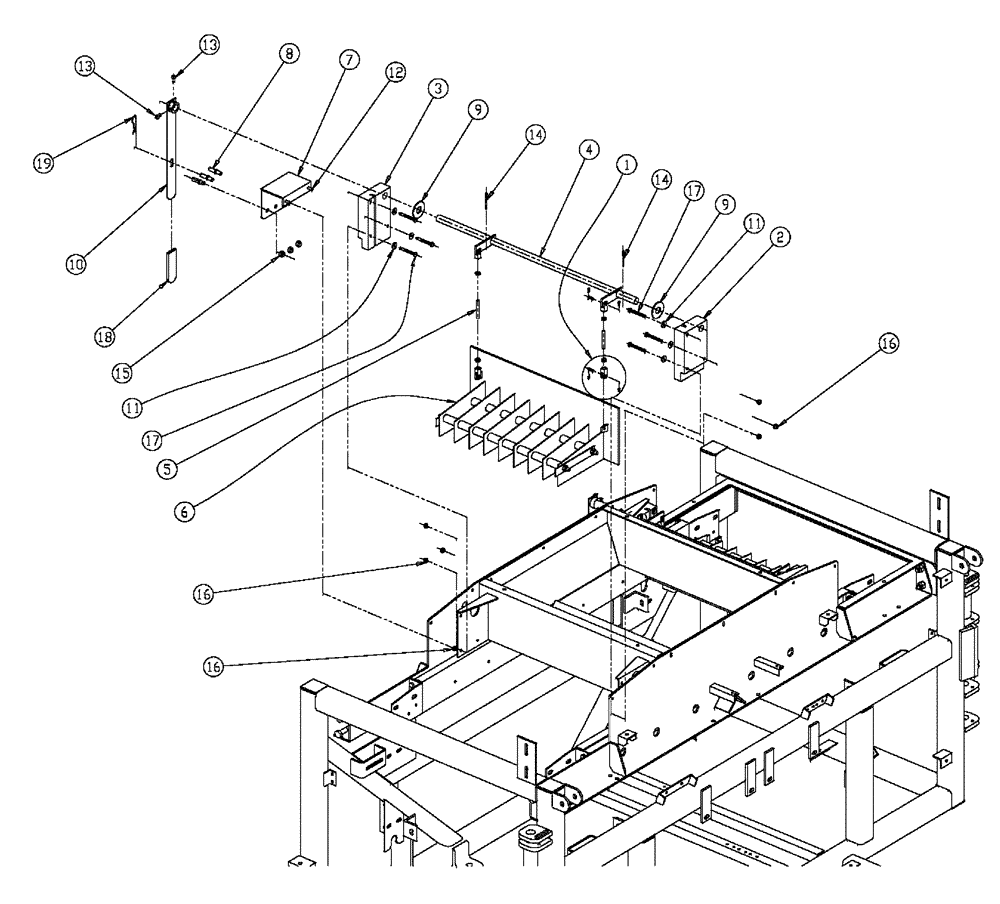

Запчасти Case IH 438 (04-012) - GATE GROUP, FLEX, 60’ & 70’ Boom Group

1

BN300254

KIT

Clevis, .31 Rod

8шт.

2

BN306615

SLIDE

Meter Gate, RH

2шт.

3

BN306616

SLIDE

Meter Gate, LH

2шт.

4

BN307008

SHAFT

W/M, Gate

2шт.

5

BN307011

ROD

Threaded, 5/16, SS

4шт.

6

BN307012

GATE ASSY

W/M

2шт.

7

BN307046

MOUNT

Mount, Gate Adjust

2шт.

8

BN307047

PIN

3/8 With Shoulder

6шт.

9

BN309412

WASHER,3/4, Stainless Steel

4шт.

10

BN35411

HANDLE

W/M, Gate, Conveyor

2шт.

11

BN50138

WASHER,1/4", SS

12шт.

12

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

13

BN50421

SET SCREW

5/16" - 18 X 1/2"

4шт.

14

BN50604

COTTER PIN

1/8 X 1 & 1/2

4шт.

15

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

6шт.

16

BN55359

LOCK NUT,1/4"-20, SS

16шт.

17

BN55379

BOLT,1/4"-20 X 2-1/4", Stainless Steel

12шт.

18

BN65711

CAP

RECT., 1.25 X .162 X 4.00

2шт.

19

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16"#8

2шт.
