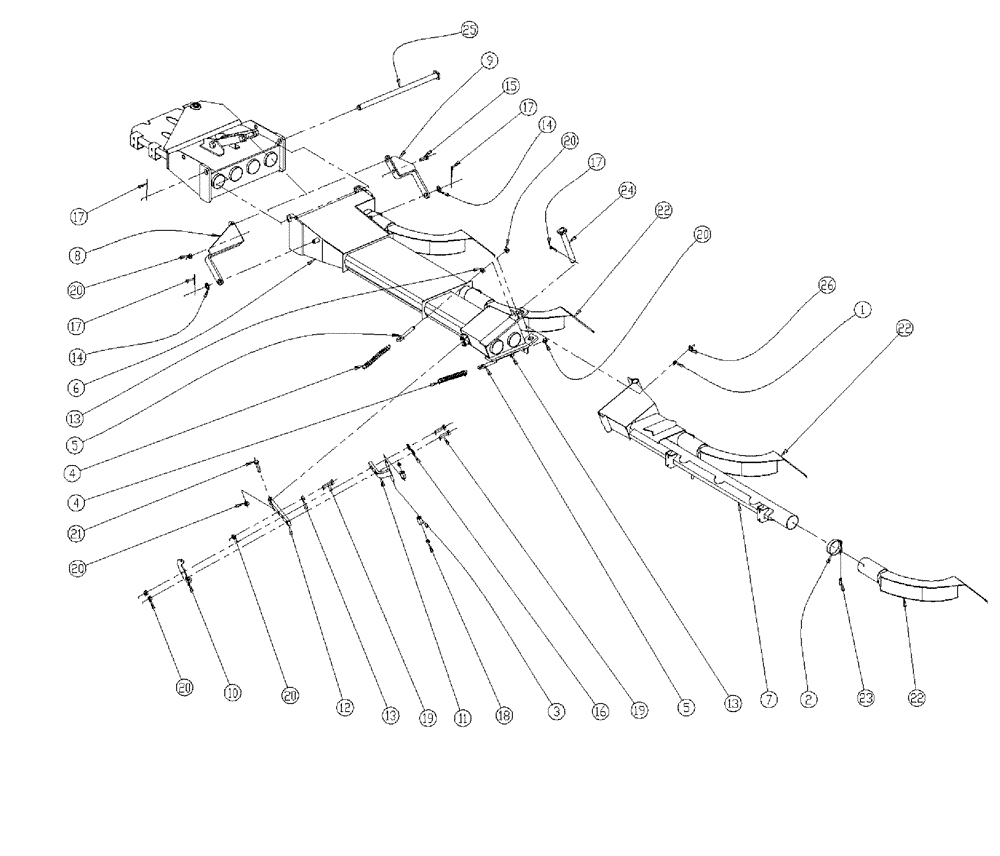

Запчасти Case IH 438 (08-006) - BOOM GROUP, 3.0, OUTER LH Boom Group

1

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

1шт.

2

BN15497

CLAMP,76.2mm - 82.55mm

3 1/4", SS, T-Bolt

4шт.

3

BN19820

SPACER,10.92mm ID x 22.1mm OD x 36.2mm L

plastic .37 id x 1.42

2шт.

4

BN24468

SPRING

tension 1.25" x 5.5"

2шт.

5

BN24504

LEVER

Takeup, Spring

2шт.

6

BN35537

BOOM

mid LH

1шт.

7

BN35538

BOOM

Breakaway RH

1шт.

8

BN35562

ARM

Fold, Front, LH

1шт.

9

BN35564

ARM

Fold, Rear, LH

1шт.

10

BN35850

BRACKET

Spring, breakaway

1шт.

11

BN35851

LATCH

breakaway

1шт.

12

BN35853

SUPPORT

Latch, breakaway

1шт.

13

BN50071

NUT,1/2"-13, Stainless

3шт.

14

BN50179

WASHER

1.25 OD X .75 ID X 14 GA

2шт.

15

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

1шт.

16

BN50595

WASHER,1/2", Stainless

2шт.

17

BN50604

COTTER PIN

1/8 X 1&1/2

4шт.

18

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

19

BN50786

BOLT,1/2"-13 x 2", Stainless

3шт.

20

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

7шт.

21

BN55368

BOLT,1/2"-13 X 2-1/2", Stainless Steel

1шт.

22

BN65386

DEFLECTOR

LH

4шт.

23

BN68086

CAP

RND, Rubber, .25 ID x 1.00

4шт.

24

BN69944

PIN

Breakaway

1шт.

25

BN69947

PIN

MID Section

1шт.

26

BN69951

CAP

Grease

1шт.
