Запчасти Case IH 438 (06-016) - LADDER & HANDRAIL GROUP, 50 Bin Group

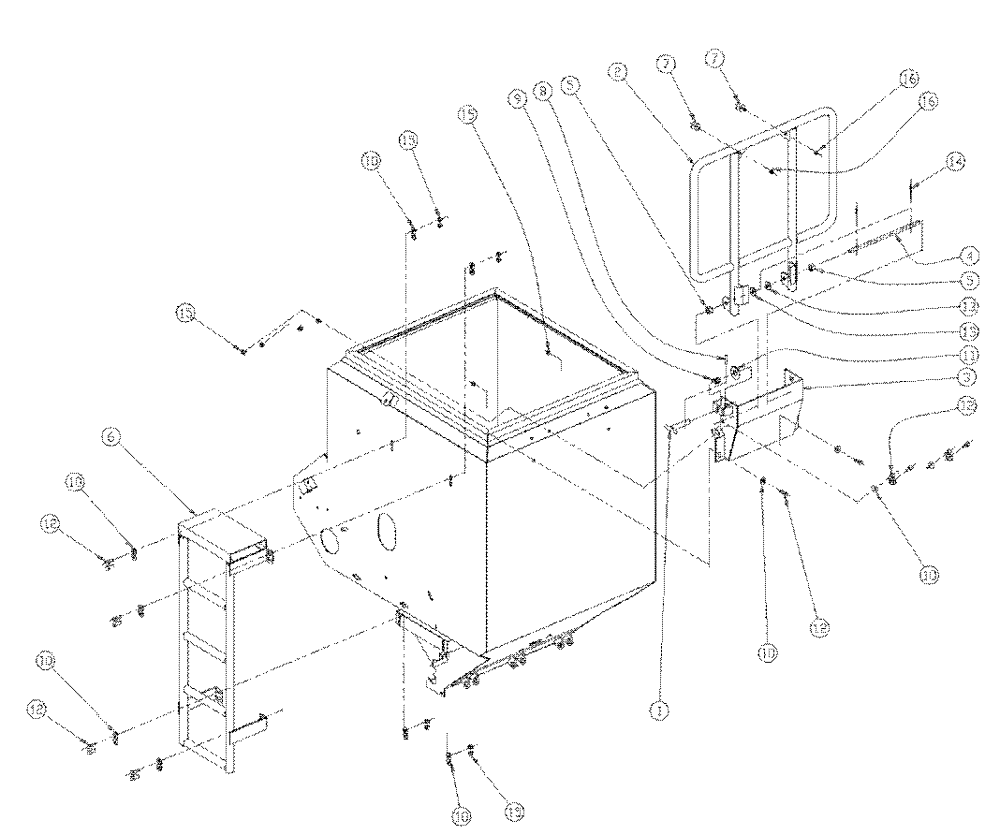

Схема запчастей Case IH 438 - (06-016) - LADDER & HANDRAIL GROUP, 50 Bin Group
16
12
10
13
1
13
14
12
16
10
5
15
15
15
11
12
10
15
10
6
8
7
3
5
7
9
10
12
10
2

Артикул

Название

Примечание

Количество

1

BN5412

Pin-Locking MW

1шт.

2

BN308099

HANDRAIL

CO-AP Bin

1шт.

3

BN308100

SUPPORT

CO-AP Handrail

1шт.

4

BN308104

PIN

Handrail Pivot

1шт.

5

BN308105

BUSHING

CO-AP Handrail

2шт.

6

BN308122

LADDER

CO-AP Bin

1шт.

7

BN310002

BUMPER

.1.00 OD x 1.0 H

2шт.

8

BN31444

PIN, ROLL

1/4 X 1-1/2

1шт.

9

BN31937

SPRING

Compression, .905 x .765

1шт.

10

BN50146

WASHER,3/8", Stainless

22шт.

11

BN50157

WASHER

3/4, G5

1шт.

12

BN50254

BOLT,3/8"-16 x 1", Stainless

14шт.

13

BN50595

WASHER,1/2", Stainless

2шт.

14

BN50602

COTTER PIN

Cotter-1/8" X 1.25

2шт.

15

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

14шт.

16

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.

Выбрано товаров: 16
