Запчасти Case IH 438 (06-010) - PARTS GROUP, TRIPLE BIN, RH, 50 Bin Group

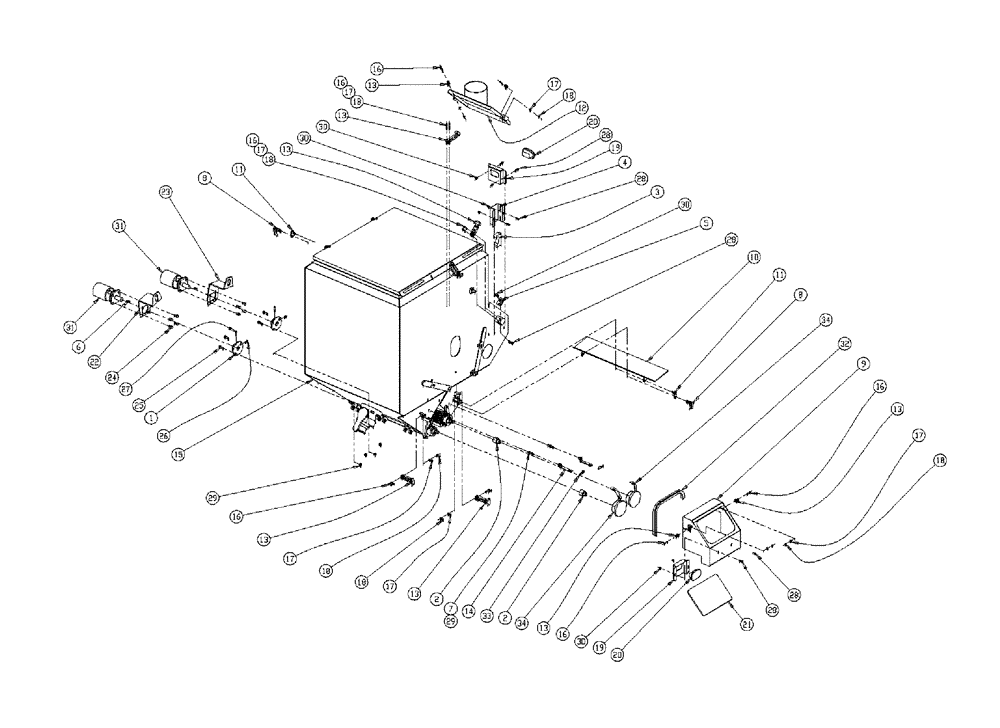

Схема запчастей Case IH 438 - (06-010) - PARTS GROUP, TRIPLE BIN, RH, 50 Bin Group
18
6
30
26
31
1
33
17
018
23
13
16
19
17
20
28
5
28
17
3
16
14
18
32
30
13
13
16
21
22
13
19
24
27
28
13
16
34
31
30
11
29
28
15
18
11
2
13
8
9
18
12
17
7
13
30
16
17
19
34
2
16
25
20
4
28
29
10
17
8

Артикул

Название

Примечание

Количество

1

BN21398A

COUPLING

Machined

2шт.

2

BN22884

KIT

Adaptor

2шт.

3

BN23002

SENSOR

Low Hopper - DJ100

1шт.

4

BN313507

MOUNTING PLATE

Sensor

1шт.

5

BN23298

COVER

14 GA 304 1.5 X 2.0

1шт.

6

BN30283

STOP

1/4 SQ Keystock x 1

2шт.

7

BN307047

PIN

3/8 With Shoulder

2шт.

8

342478A1

LATCH

Swell

2шт.

9

BN308143

COVER

Wind, RH

1шт.

10

BN308146

COVER

CO-AP, Lower

1шт.

11

BN308147

PIN

Lower Cover Pivot

2шт.

12

BN309278

COVER

SUPP, RH

1шт.

13

BN309337

LATCH

Flexible Draw

4шт.

14

BN312519

BRACKET

Bracket, Rate

2шт.

15

NSS

NOT SOLD SEPARAT

Group, Triple, RH, 50

1шт.

See Fig. 06-011

1шт.

16

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

12шт.

17

BN310265

WASHER

10, Stainless Steel

12шт.

18

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

12шт.

19

BN310644

MOUNTING PLATE

Bin Lights

2шт.

20

BN310648

LIGHT

2шт.

21

87265980

WINDOW

Hopper 12" x 8"

1шт.

22

BN35938

ARM

Torque, CO-AP, RH

1шт.

23

BN35939

ARM

Torque, CO-AP, LH

1шт.

24

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

8шт.

25

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

26

BN50421

SET SCREW

5/16"-18 X 1/2"

2шт.

27

BN50473

SET SCREW

5/16"-18 X 3/4"

2шт.

28

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

8шт.

29

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

6шт.

30

BN55359

LOCK NUT,1/4"-20, SS

8шт.

31

NSS

NOT SOLD SEPARAT

Hydro Motor, Ross MG12

2шт.

See Fig. 14-002

1шт.

32

BN67438

SEAL

Weather, Wind Cover

1шт.

33

BN71007

CLIP,3/16" Hairpin

Hairpin-3/16" #8

2шт.

34

BN95852

SENSOR

Application Rate D-J#CCS1

2шт.

Выбрано товаров: 36
