Запчасти Case IH 438 (06-009) - BIN MOUNT GROUP, TRIPLE BIN, 50 Bin Group

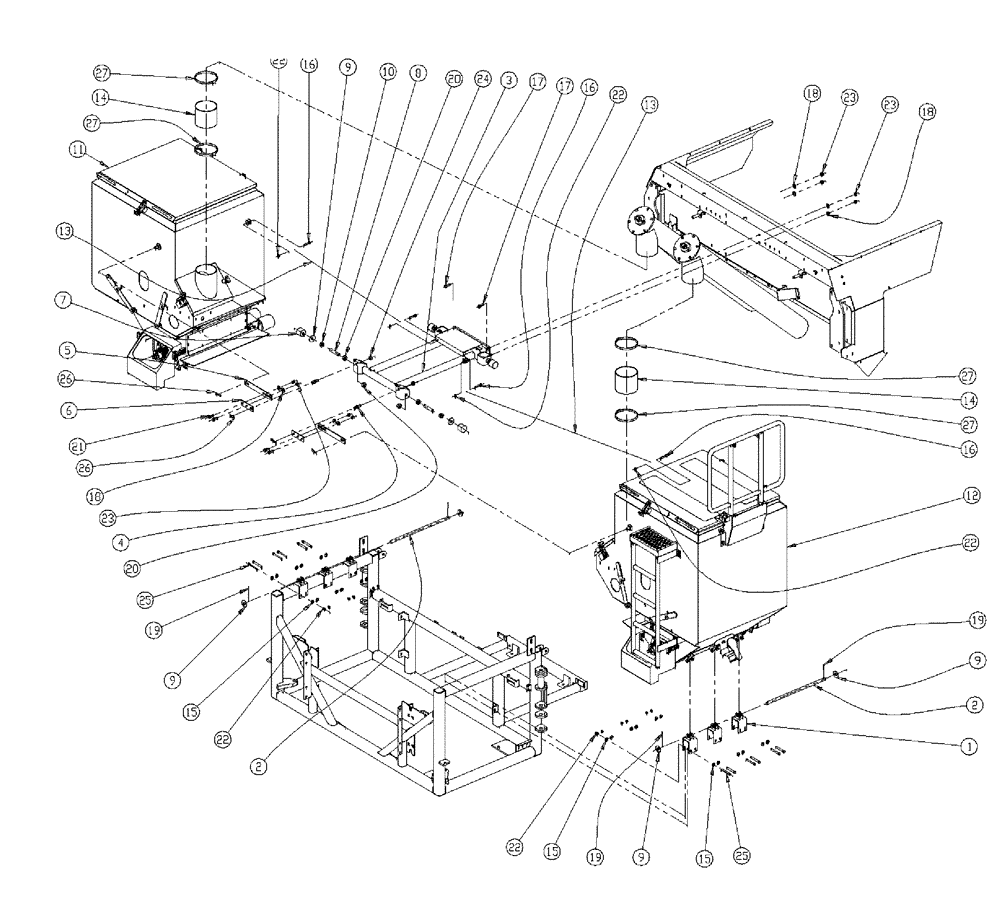

Схема запчастей Case IH 438 - (06-009) - BIN MOUNT GROUP, TRIPLE BIN, 50 Bin Group
16
16
21
17
13
27
13
23
26
19
19
22
16
22
27
14
9
23
15
8
26
10
9
19
27
6
24
17
9
20
15
25
2
22
23
2
4
1
7
25
22
15
18
5
27
20
12
3
14
9
22
18
18
11

Артикул

Название

Примечание

Количество

1

BN306377

HINGE

CO-AP Bin

6шт.

2

BN306380

HINGE

3/4" Rod, CO-AP

2шт.

3

BN308071

SUPPORT

Center, CO-AP

1шт.

4

BN309338

PIN

5/8 With Shoulder

2шт.

5

BN309339

BAR

Latch, Long

2шт.

6

BN309340

BAR

Latch, Short

2шт.

7

BN309409

BUMPER

2" DIA x 1-5/8" H, NPRN

4шт.

8

BN309410

THREADED ROD

3/4-10, Thread Rod

4шт.

9

BN309412

WASHER,3/4, Stainless Steel

8шт.

10

BN309413

SCREW,3/4" - 10, SST

3/4-10, HJN, SS

4шт.

11

NSS

NOT SOLD SEPARAT

Group, Triple, RH, 50

1шт.

See Fig. 06-010

1шт.

12

NSS

NOT SOLD SEPARAT

Group, Triple, LH, 50

1шт.

See Fig. 06-013

1шт.

13

BN310661

CABLE

CO-AP Bin

2шт.

14

BN310662

HOSE,6.00" ID x 6.00"

COAP Bin

2шт.

15

BN50146

WASHER,3/8", Stainless

24шт.

16

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

4шт.

17

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

4шт.

18

BN50595

WASHER,1/2", Stainless

8шт.

19

BN50600

COTTER PIN

3/16" X 1&1/2"

4шт.

20

BN50661

NUT,3/4"-10, Stainless Steel

8шт.

21

BN50679

BOLT,1/2-13 X 1.25", Stainless

4шт.

22

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

16шт.

23

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

8шт.

24

BN55365

LOCK NUT,5/8"-11, Nylon, Stainless

2шт.

25

BN55373

BOLT,3/8"-16 X 3-1/2", Stainless Steel

12шт.

26

BN71007

CLIP,3/16" Hairpin

Hairpin-3/16" #8

4шт.

27

BN85064

HOSE CLAMP

6" Bridge

4шт.

Выбрано товаров: 29
