Запчасти Case IH 438 (06-006) - BIN GROUP, DOUBLE BIN, RH, 50 Bin Group

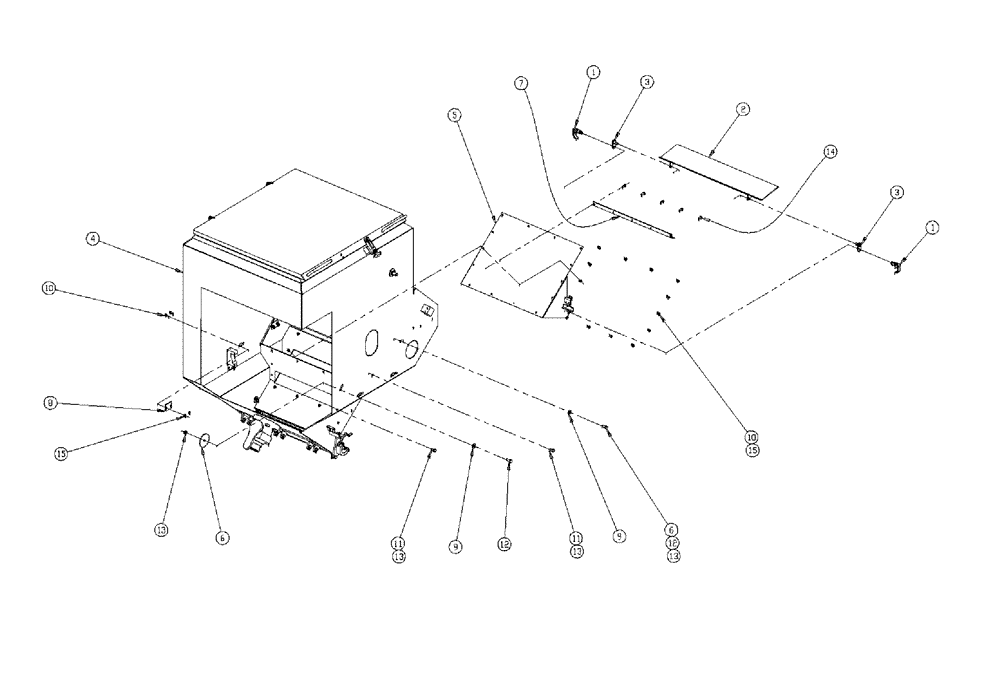

Схема запчастей Case IH 438 - (06-006) - BIN GROUP, DOUBLE BIN, RH, 50 Bin Group
12
10
2
6
11
3
13
15
13
13
10
14
1
9
8
5
3
1
11
7
4
9
6
15
12
13

Артикул

Название

Примечание

Количество

1

342478A1

LATCH

Swell

2шт.

2

BN308146

COVER

CO-AP, Lower

1шт.

3

BN308147

PIN

Lower Cover Pivot

2шт.

4

NSS

NOT SOLD SEPARAT

Group, RH, 50

1шт.

See Fig. 06-010

1шт.

5

BN310861

COVER

Support, RH

1шт.

6

BN310862

WASHER

CO-AP Bin

2шт.

7

BN310863

STRAP

Formed, CO-AP Cover

1шт.

8

BN35859

COVER

Shaft Hole, Co-Ap Bin

4шт.

9

BN50146

WASHER,3/8", Stainless

2шт.

10

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

22шт.

11

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

2шт.

12

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

13

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

14

BN50767

WASHER

1/4" X 3/4", HH, STP

5шт.

15

BN55359

LOCK NUT,1/4"-20, SS

22шт.

Выбрано товаров: 16
