Запчасти Case IH 438 (06-001) - BIN MOUNT, GROUP, DOUBLE BIN, 50 Bin Group

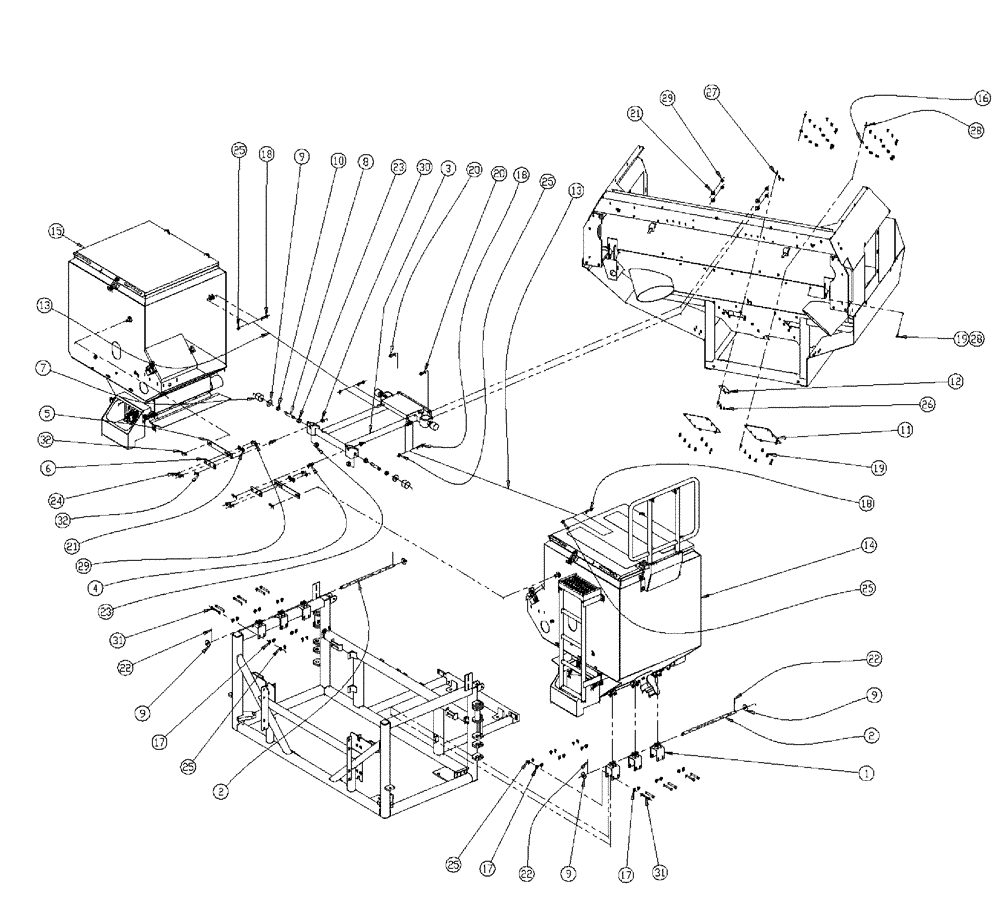

Схема запчастей Case IH 438 - (06-001) - BIN MOUNT, GROUP, DOUBLE BIN, 50 Bin Group
25
19
9
25
22
10
20
3
23
20
18
31
17
21
25
13
22
4
19
23
14
13
17
29
27
30
1
28
26
15
24
7
9
22
2
9
21
11
17
32
25
8
9
32
6
31
25
25
12
5
29
18
18
2
16

Артикул

Название

Примечание

Количество

1

BN306377

HINGE

CO-AP Bin

6шт.

2

BN306380

HINGE

3/4" Rod, CO-AP

2шт.

3

BN308071

SUPPORT

Center, CO-AP

1шт.

4

BN309338

PIN

5/8 With Shoulder

2шт.

5

BN309339

BAR

Latch, Long

2шт.

6

BN309340

BAR

Latch, Short

2шт.

7

BN309409

BUMPER

2" DIA x 1-5/8" H, NPRN

4шт.

8

BN309410

THREADED ROD

3/4-10, Thread Rod

4шт.

9

BN309412

WASHER,3/4, Stainless Steel

8шт.

10

BN309413

SCREW,3/4" - 10, SST

3/4-10, HJN, SS

4шт.

11

BN309886

COVER

Auxiliary Auger Hole

2шт.

12

BN309887

COVER

Sensor Hole

1шт.

13

BN310661

CABLE

CO-AP Bin

2шт.

14

NSS

NOT SOLD SEPARAT

Parts Group, Double, LH, 50

1шт.

See Fig. 06-003

1шт.

15

NSS

NOT SOLD SEPARAT

Parts Group, Double, RH, 50

1шт.

See Fig. 06-002

1шт.

16

BN50142

WASHER,5/16", Stainless Steel

16шт.

17

BN50146

WASHER,3/8", Stainless

24шт.

18

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

4шт.

19

BN50476

BOLT,5/16"-18 x 0.75", Stainless

20шт.

20

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

4шт.

21

BN50595

WASHER,1/2", Stainless

8шт.

22

BN50600

COTTER PIN

3/16" X 1&1/2"

4шт.

23

BN50661

NUT,3/4"-10, Stainless Steel

8шт.

24

BN50679

BOLT,1/2-13 X 1.25", Stainless

4шт.

25

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

16шт.

26

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

4шт.

27

BN55359

LOCK NUT,1/4"-20, SS

4шт.

28

BN55361

NUT,5/16"-18, Nylon, Stainless

20шт.

29

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

8шт.

30

BN55365

LOCK NUT,5/8"-11, Nylon, Stainless

2шт.

31

BN55373

BOLT,3/8"-16 X 3-1/2", Stainless Steel

12шт.

32

BN71007

CLIP,3/16" Hairpin

Hairpin - 3/16" #8

4шт.

Выбрано товаров: 34
