Запчасти Case IH 438 (05-009) - TRIPLE BIN GROUP, RH Bin Group

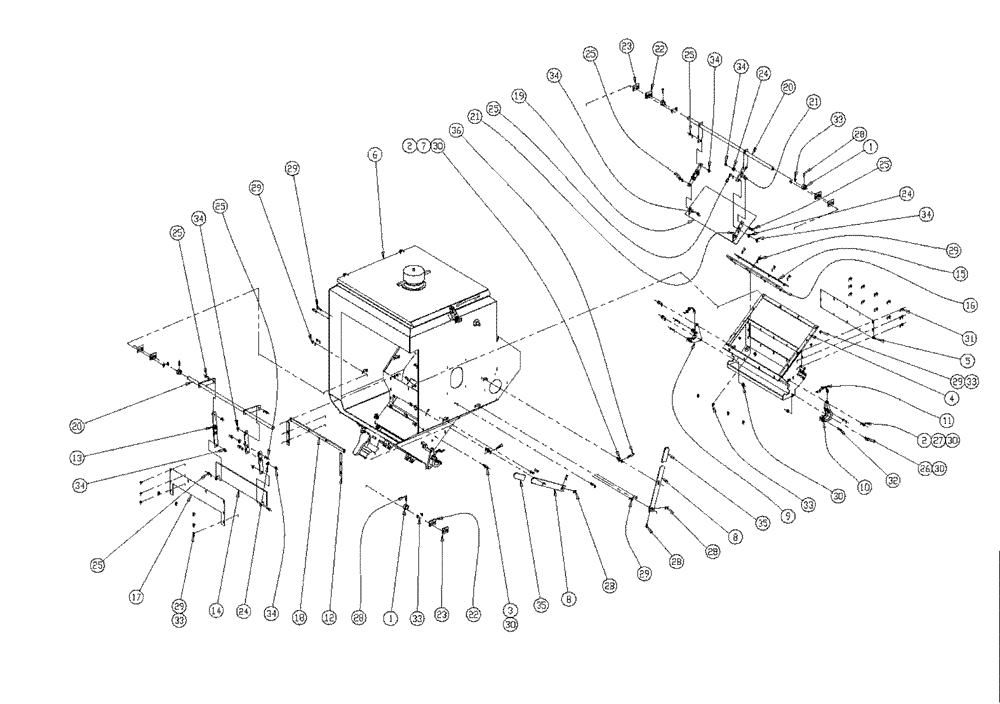

Схема запчастей Case IH 438 - (05-009) - TRIPLE BIN GROUP, RH Bin Group
25
19
18
33
24
16
35
1
12
30
25
25
30
6
30
8
36
20
28
30
13
3
26
34
33
33
8
25
34
25
33
17
27
20
23
24
28
24
2
30
25
9
25
14
34
29
35
22
34
28
21
23
29
32
22
11
28
28
29
2
34
34
33
7
29
4
21
5
10
15
1
31
29
34
29

Артикул

Название

Примечание

Количество

1

BN10054

COLLAR

1 1/4" od x 3/4" id HRST

4шт.

2

BN23452

WASHER,13/32" x 1.25 " OD x 12 GA, SS

4шт.

3

BN307047

PIN

3/8 With Shoulder

2шт.

4

BN308142

BRACKET, SUPPORTING

Supplemental

1шт.

5

BN309317

PANEL

SUPP Access

1шт.

6

NSS

NOT SOLD SEPARAT

Bin, RH

1шт.

See Fig. 06-006

1шт.

7

BN310283

PIN

3/8 With .75 Shoulder

2шт.

8

BN35411

HANDLE

Gate, Conveyor

2шт.

9

BN35705

BEARING HOUSING

Valmar, Housing, LH

1шт.

10

BN35706

BEARING HOUSING

Valmar RH

1шт.

11

BN35707

BEARING CAP

Valmar SS

2шт.

12

BN35785

SLIDE

CO-AP Gate

2шт.

13

BN35786

LINK

CO-AP Bin Gate

4шт.

14

BN35787

GATE ASSY

CO-AP Bin

1шт.

15

BN35788

SEAL

CO-AP Gates

2шт.

16

BN35789

SEAL

CO-AP Gates

1шт.

17

BN35790

COVER

CO-AP Bin Gate

1шт.

18

BN35791

SLIDE

HORIZ, CO-AP Gate

1шт.

19

BN35793

GATE ASSY

SUPP Bin

1шт.

20

BN35796

SHAFT

SUPP Gate

2шт.

21

BN35799

LINKAGE

SUPP Gate

4шт.

22

BN35800

BUSHING

Shaft, SUPP Gate

4шт.

23

BN35801

SEAL

SUPP Gate

4шт.

24

BN50142

WASHER,5/16", Stainless Steel

8шт.

25

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

16шт.

26

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

27

BN50258

BOLT,3/8"-16 X 1.25", Stainless

2шт.

28

BN50421

SET SCREW

5/16"-18 X 1/2"

8шт.

29

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

34шт.

30

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

31

BN50767

WASHER

1/4" X 3/4", HH, STP

12шт.

32

BN55216

ROLL PIN

5/32 X 1-1/2, SS

4шт.

33

BN55359

LOCK NUT,1/4"-20, SS

34шт.

34

BN55361

NUT,5/16"-18, Nylon, Stainless

16шт.

35

BN65711

CAP

RECT 1.25 X .162 X 4.00

2шт.

36

BN71007

CLIP,3/16" Hairpin

Hairpin - 3/16" #8

2шт.

Выбрано товаров: 37
