Запчасти Case IH 438 (05-006) - VALVE BLOCK TRIPLE BIN Bin Group

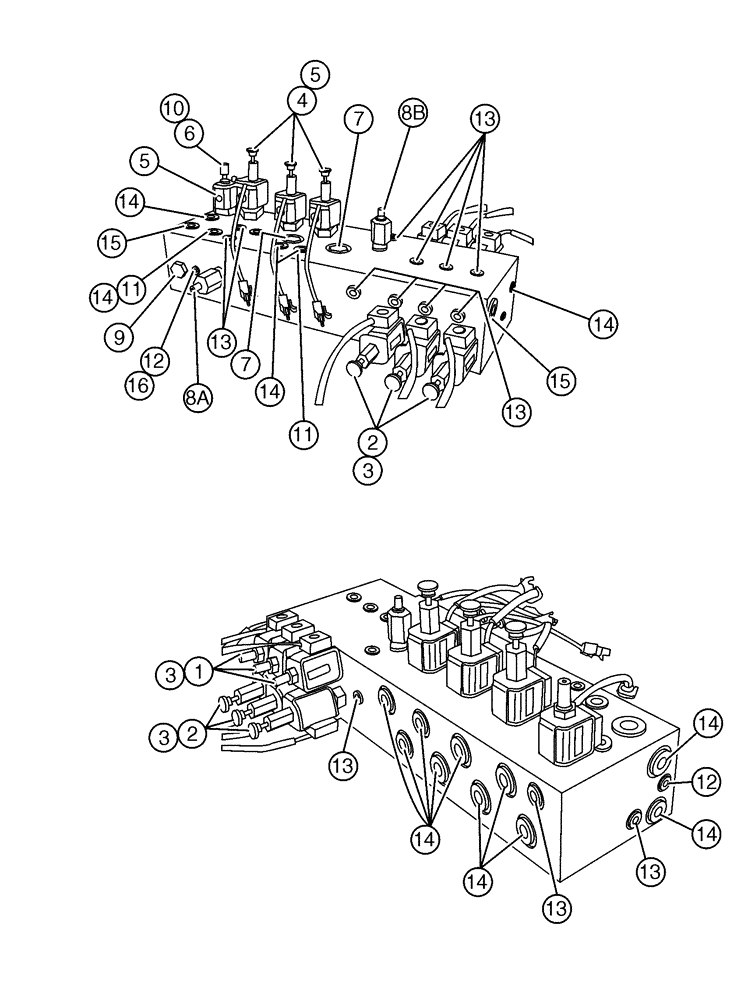

Схема запчастей Case IH 438 - (05-006) - VALVE BLOCK TRIPLE BIN Bin Group
9
11
5
11
14
14
14
2
14
14
13
6
3
16
12
12
7
1
13
15
8a
14
3
13
14
10
13
15
7
2
13
14
5
3
8b
13
4

Артикул

Название

Примечание

Количество

1

87270622

HYDRAULIC VALVE

Prop Flow Control

3шт.

2

BN303849

SOLENOID VALVE

2/3 Way

6шт.

3

BN300307

COIL

12 VDC, Traction

9шт.

4

BN303851

SOLENOID VALVE

2/2 Way

3шт.

5

BN300306

COIL

12VDC, Shift With Male Packard Connector

4шт.

6

BN303853

HYDRAULIC VALVE

2/2 Way Solenoid

1шт.

7

BN314658

CHECK VALVE

3шт.

8a

BN303855

VALVE PRESSURE RELIE

1шт.

8b

BN303856

VALVE PRESSURE RELIE

1шт.

9

BN303857

HYDRAULIC VALVE

Flow Control

1шт.

10

BN303859

PLUG

Orifice

1шт.

11

BN303860

SET SCREW

2шт.

12

86529630

PLUG,Hex Soc, 3/8"-24 ORB

8шт.

BN306437

O-RING

8шт.

Associated Part Of Plug, O - Ring, - 3, 3/8 - 24, P/N BN300310

1шт.

13

9625178

PLUG,9/16" - 18 ORB

14шт.

BN306438

O-RING

6 SAE 90 DUR NITR

14шт.

Associated Part Of Plug, O - Ring, - 6, 9/16 - 18, P/N BN300312

1шт.

14

BN303863

PLUG

Hollow Hex

15шт.

BN306439

O-RING

15шт.

Associated Part Of Plug, Hollowhex, P/N BN303863

1шт.

15

BN303864

PLUG

Hollow Hex

2шт.

BN98017

O-RING

SAE-12 Buna N

2шт.

Associated Part Of Plug, Hollowhex, P/N BN303864

1шт.

16

BN303865

PLUG

Orifice

1шт.

17

BN303847

BLOCK

Swiss Cheese, 3 Bin

1шт.

Выбрано товаров: 26
