(05-002) - TRIPLE BIN HYDRAULIC TUBES GROUP

Запчасти Case IH 438 (05-002) - TRIPLE BIN HYDRAULIC TUBES GROUP Bin Group

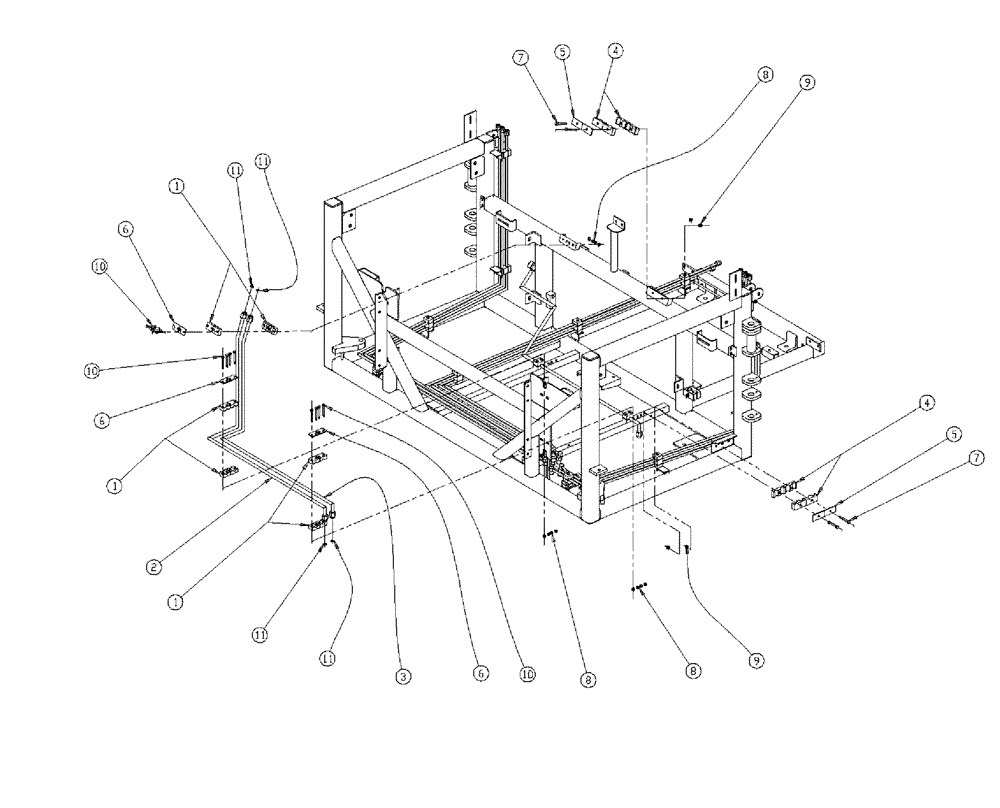

Схема запчастей Case IH 438 - (05-002) - TRIPLE BIN HYDRAULIC TUBES GROUP Bin Group
11
6
5
1
11
1
3
5
9
8
8
7
10
11
4
9
10
2
8
1
10
6
4
11
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN29783

CLAMP

Single, 1/2" Tube

6шт.

2

BN306982

TUBE

CO-AP, RH

1шт.

3

BN306983

TUBE

RH

1шт.

4

BN307913

CLAMP

Dual, 1/2 Pipe

4шт.

5

BN309484

PLATE

Dual, Size 3

4шт.

6

BN309485

PLATE

Single, Size 2

6шт.

7

BN50241

BOLT,5/16"-18 X 2-1/4", Stainless Steel

4шт.

8

BN55359

LOCK NUT,1/4"-20, SS

12шт.

9

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

10

BN55366

BOLT,1/4"-20 x 2.00", Stainless Steel

12шт.

11

BN305413

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

For -8 FFOR

4шт.
