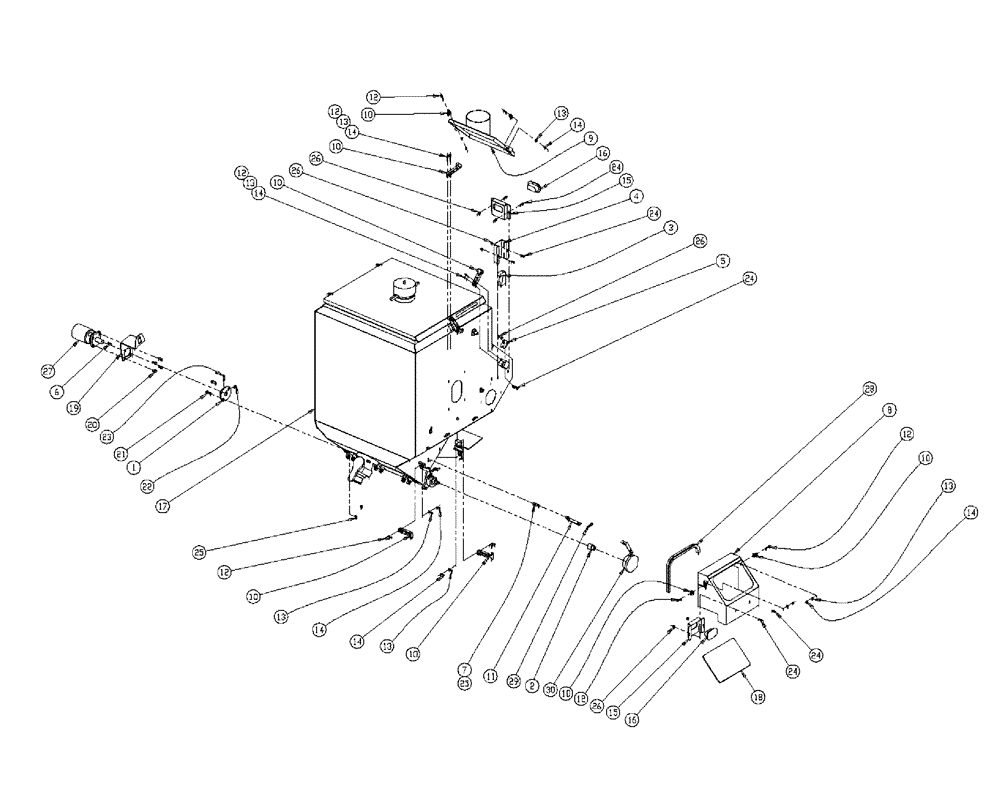

Запчасти Case IH 438 (04-011) - DOUBLE BIN W/AUGER PARTS GROUP, RH Bin Group

1

BN21398A

COUPLING

Machined

1шт.

2

BN22884

KIT

Adaptor

1шт.

3

BN23002

SENSOR

Low Hopper - DJ100

1шт.

4

BN313507

MOUNTING PLATE

Sensor

1шт.

5

BN23298

COVER

14 GA 304 1.5 X 2.0

1шт.

6

BN30283

STOP

1/4 SQ Keystock x 1

1шт.

7

BN307047

PIN

3/8 With Shoulder

1шт.

8

BN308143

COVER

Wind, RH

1шт.

9

BN309278

COVER

Supp, RH

1шт.

10

BN309337

LATCH

Flexible Draw

4шт.

11

BN312519

BRACKET

Rate

1шт.

12

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

12шт.

13

BN310265

WASHER

10, Stainless Steel

12шт.

14

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

12шт.

15

BN310644

MOUNTING PLATE

Bin Lights

2шт.

16

BN310648

LIGHT

2шт.

17

BN310826

Bin, Double, RH

1шт.

18

87265980

WINDOW

Hopper 12" x 8"

1шт.

19

BN35938

ARM

Torque-CO-AP, RH

1шт.

20

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

21

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

22

BN50421

SET SCREW

5/16"-18 X 1/2"

1шт.

23

BN50473

SET SCREW

5/16"-18 X 3/4"

1шт.

24

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

8шт.

25

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

3шт.

26

BN55359

LOCK NUT,1/4"-20, SS

8шт.

27

NSS

NOT SOLD SEPARAT

Hydro Motor, Ross MG12

1шт.

See Fig. 14-002

1шт.

28

BN67438

SEAL

Weather, Wind Cover

1шт.

29

BN71007

CLIP,3/16" Hairpin

Hairpin-3/16 #8

1шт.

30

BN95852

SENSOR

Application Rate D-J#CCS1

1шт.
