Запчасти Case IH 438 (04-007) - 6" PNEUMATIC GROUP Bin Group

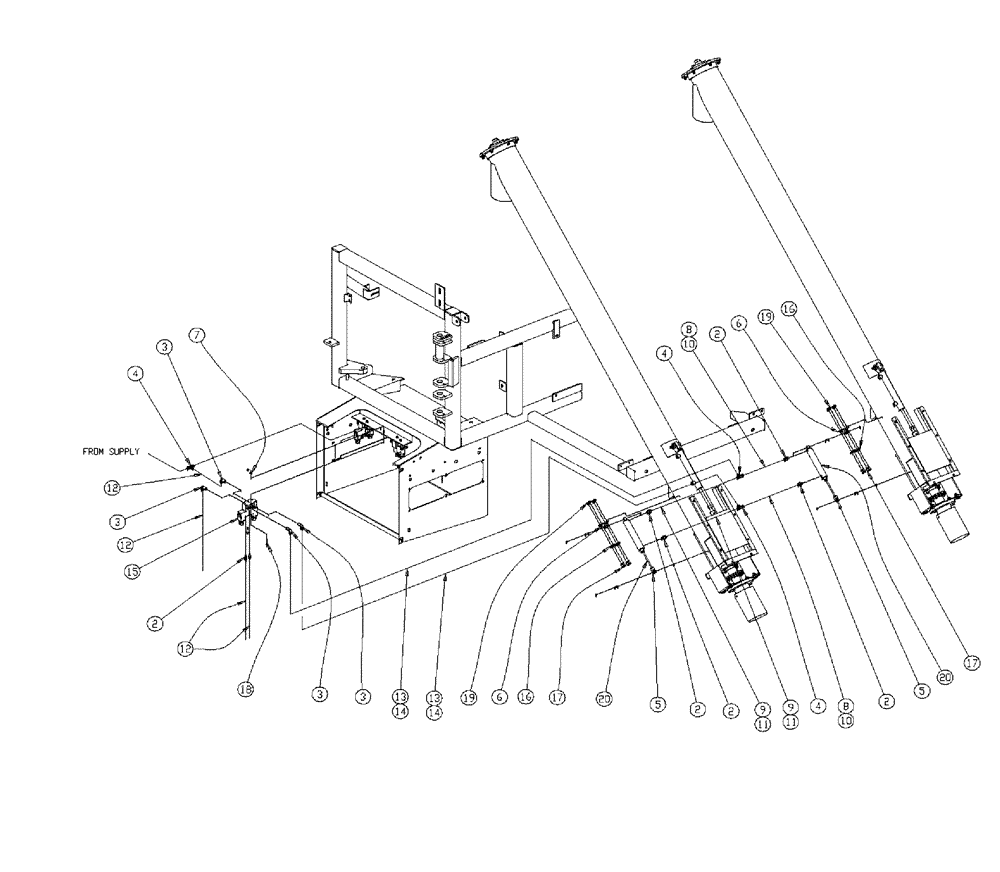

Схема запчастей Case IH 438 - (04-007) - 6" PNEUMATIC GROUP Bin Group
9
19
6
7
8
2
5
10
17
6
10
3
13
4
11
4
3
12
8
4
2
15
2
12
9
13
20
2
16
19
12
3
14
20
3
2
14
5
18
11
17
16

Артикул

Название

Примечание

Количество

2

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

6шт.

3

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

4шт.

4

BN2399408

UNION TEE

Tube UTC140

3шт.

5

BN300254

KIT

Clevis, .31 Rod

2шт.

6

BN300255

REPAIR KIT

Pivot Bracket, 1.06 Cylinder

2шт.

7

BN303136

NUT

10-32, NLN, G5

2шт.

8

BN303244

AIR HOSE,15.00"

1/4", Black

2шт.

9

BN303245

AIR HOSE,7.00"

1/4", Black

2шт.

10

BN303248

SLEEVE

Plastic, 1/4" X 15"

2шт.

11

BN303249

SLEEVE

Plastic, 1/4" X 7"

2шт.

12

BN303257

AIR HOSE,33.00"

1/4", Black

4шт.

13

BN303336

AIR HOSE,88.00"

1/4", Black

2шт.

14

BN303337

LOOM

Plastic-1/4" X 88"

2шт.

15

NSS

NOT SOLD SEPARAT

Valve, Air, Double Solenoid

1шт.

16

BN50138

WASHER,1/4", SS

8шт.

17

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

8шт.

18

BN50926

10-32 X 1.25, Phr, G5

2шт.

19

BN55359

LOCK NUT,1/4"-20, SS

8шт.

20

BN68384

CYLINDER,Double Acting, 7.87mm Rod, 127mm Stroke

1.06 X 4, Air

2шт.

Выбрано товаров: 19
