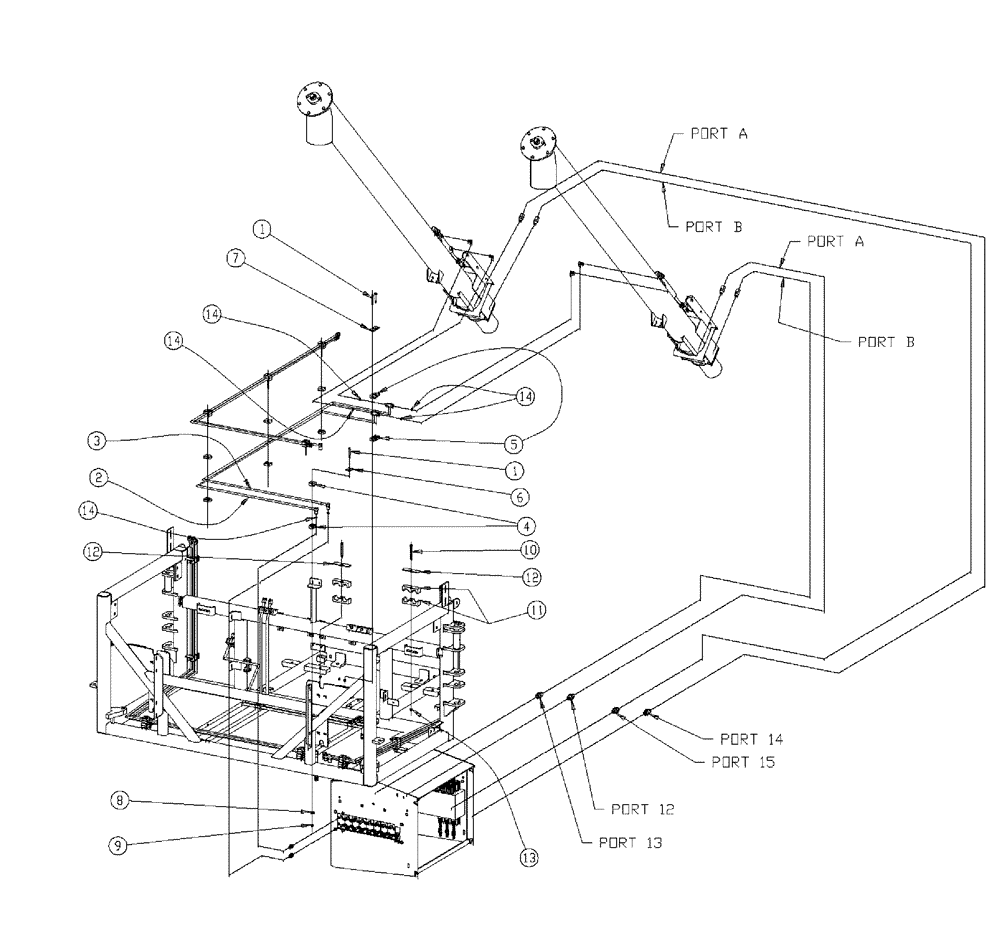

Запчасти Case IH 438 (04-006) - 6" AUGER HYDRAULIC TUBES GROUP Bin Group

1

BN300395

BOLT,1/4"-20 x 1-3/4", Stainless Steel

3шт.

2

BN306977

TUBE

4 Gate

1шт.

3

BN306978

TUBE

4 Gate, Rod

1шт.

4

BN307911

CLAMP

Dual, 3/8 Tube

1шт.

5

BN307915

CLAMP

Single, 3/8 Tube

2шт.

6

BN309486

PLATE

Dual, Size 1

1шт.

7

BN309487

PLATE

Single, Size 0

2шт.

8

BN50138

WASHER,1/4", SS

1шт.

9

BN55359

LOCK NUT,1/4"-20, SS

3шт.

10

BN309848

SCREW,Hex, 5/16" - 18 x 3", SST

2шт.

11

BN309849

CLAMP

Dual, 1.25 Tube

2шт.

12

BN309850

PLATE

Dual, Size 5

2шт.

13

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.

14

BN305412

O-RING

For -6 FFOR

6шт.
