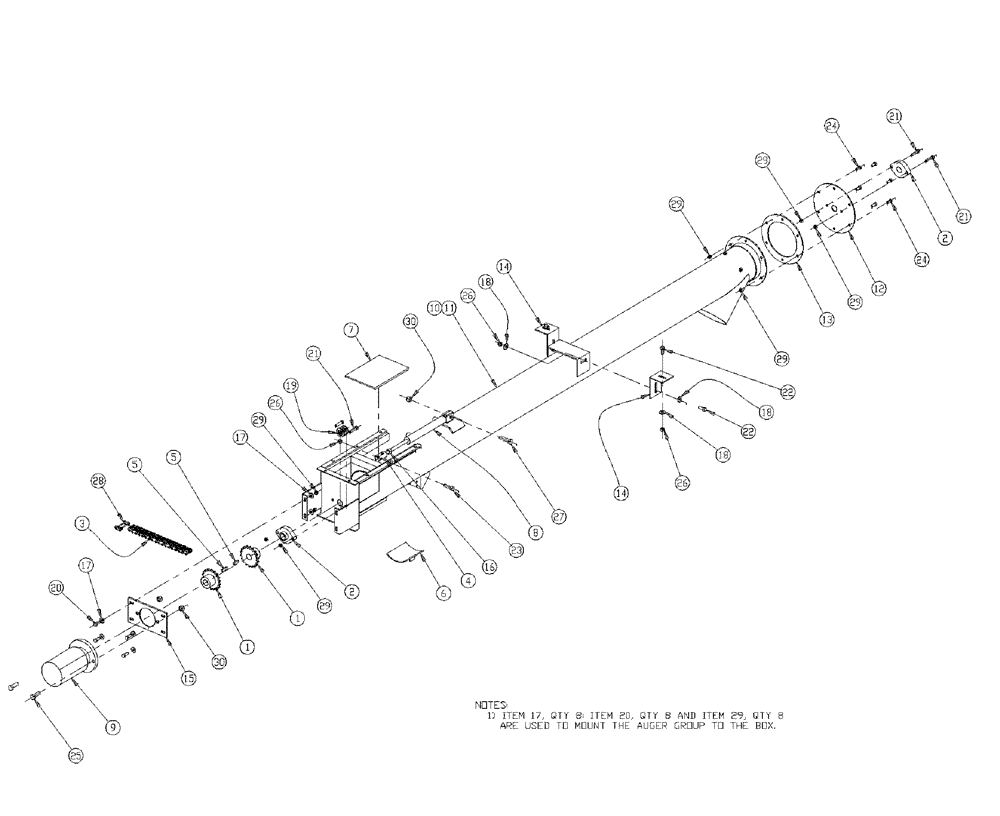

Запчасти Case IH 438 (04-004) - 6" AUGER TUBE GROUP Bin Group

1

BN10181

SPROCKET

50B18 With 1" Bore

2шт.

2

BN10500

FLANGED BEARING,25.4mm ID

Flange 1"

2шт.

3

BN17701

#50-2 DBL RLR x 18 LN

1шт.

4

BN21982

CLEVIS,1/2" - 20

1" Diameter CRS x 1.87

1шт.

5

BN23880

KEY

1/4" X 1/4" X 1.25

2шт.

6

BN304623

DOOR

Cleanout, 6"

1шт.

7

BN304625

PLATE

Gate, 6"

1шт.

8

NSS

NOT SOLD SEPARAT

Cylinder, 1 X 6, SAE Ports

1шт.

See Fig. 12-001

1шт.

9

NSS

NOT SOLD SEPARAT

Motor, HYD, 6" Auger, MF24

1шт.

See Fig. 14-003

1шт.

10

BN321067

AUGER

6"

1шт.

11

87528879

AUGER

6"

1шт.

12

BN308063

PLATE

6" Auger, Upper

1шт.

13

BN308067

GASKET

6" Auger, Upper

1шт.

14

BN309460

ANGLE

Brackets, 6" Auger

2шт.

15

BN35935

PLATE

MTR MNT, Auxiliary Auger

1шт.

16

BN50075

NUT

1/2-20 Hex SS

1шт.

17

BN50142

WASHER,5/16", Stainless Steel

16шт.

18

BN50146

WASHER,3/8", Stainless

6шт.

19

BN50168

WASHER,25.4mm ID x 38.1mm OD x 3.57mm Thk

1" ID x 1.5 OD x 10 Ga

3шт.

20

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

12шт.

21

BN50237

BOLT,5/16"-18 X 1-1/2", Stainless Steel

4шт.

22

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

23

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

1шт.

24

BN50476

BOLT,5/16"-18 x 0.75", Stainless

6шт.

25

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

2шт.

26

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

5шт.

27

BN50786

BOLT,1/2"-13 x 2", Stainless

1шт.

28

BN53159

LINK

50-2

1шт.

29

BN55361

NUT,5/16"-18, Nylon, Stainless

22шт.

30

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

3шт.
