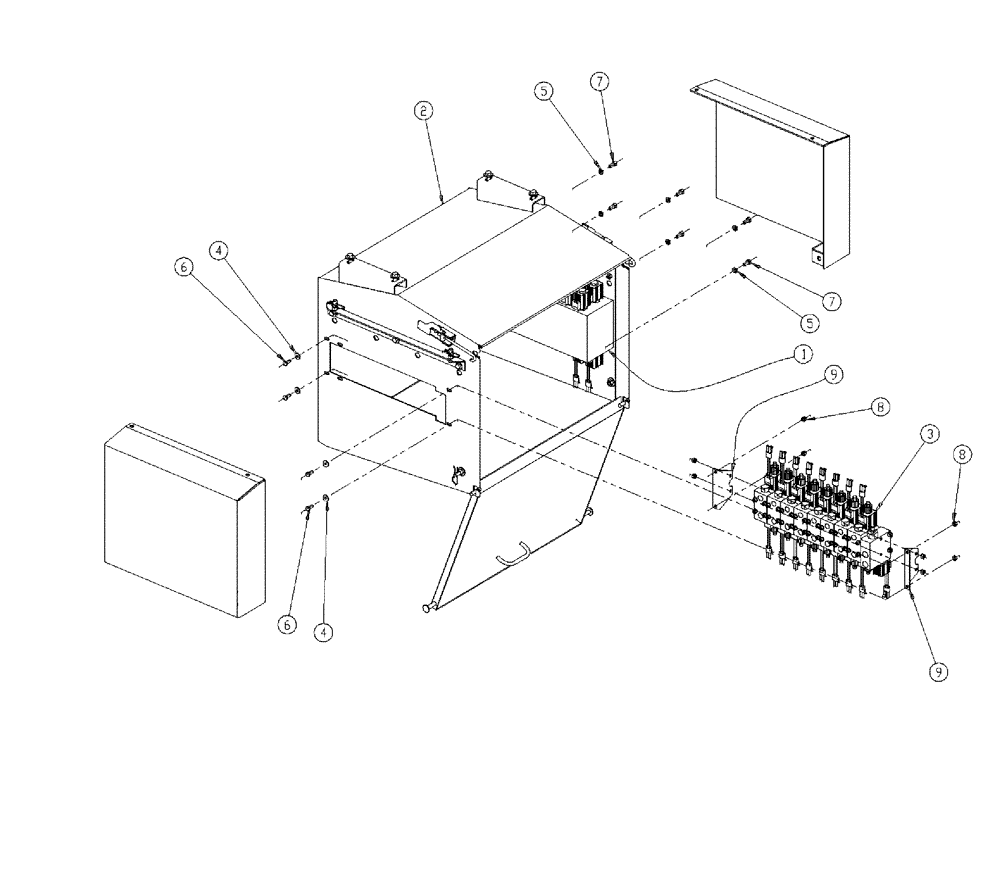

Запчасти Case IH 438 (04-001) - VALVE BOX GROUP, DOUBLE W/AUGER Bin Group

1

NSS

NOT SOLD SEPARAT

Valve Block, Double W/Aug

1шт.

See Fig. 04-002

1шт.

2

NSS

NOT SOLD SEPARAT

Valve Box Group

1шт.

See Fig. 02-003

1шт.

3

NSS

NOT SOLD SEPARAT

Valve - Waterman 8 Bank

1шт.

See Fig. 04-003

1шт.

4

BN50138

WASHER,1/4", SS

4шт.

5

BN50144

LOCK WASHER

5/16" SS Lock

6шт.

6

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

7

BN50476

BOLT,5/16"-18 x 0.75", Stainless

6шт.

8

BN55359

LOCK NUT,1/4"-20, SS

4шт.

9

BN67858

MOUNTING PARTS

Waterman Valve

2шт.
