Запчасти Case IH 438 (03-010) - BIN GROUP, RH Bin Group

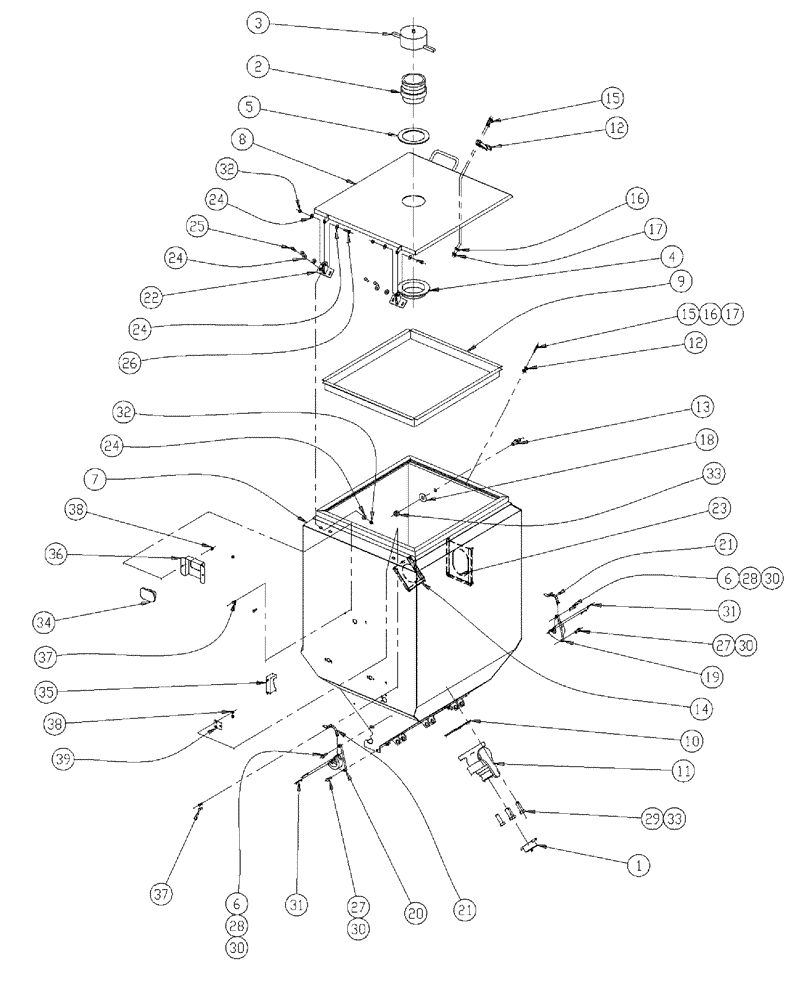

Схема запчастей Case IH 438 - (03-010) - BIN GROUP, RH Bin Group
20
38
28
26
24
16
9
21
19
23
17
15
7
34
8
31
22
25
14
24
29
24
16
18
31
1
37
30
3
6
6
13
36
11
39
4
28
33
17
38
27
32
2
5
30
30
15
37
33
24
35
12
1
27
30
32
21
10

Артикул

Название

Примечание

Количество

1

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

2

BN22944

ADAPTER

Male 4" Nyglass

1шт.

3

BN22945

CAP

4" DC Nyglass

1шт.

4

BN23309

PIPE UNION NUT

4" Pipe Thread

1шт.

5

BN23310

GASKET

4"

1шт.

6

BN23452

WASHER,13/32" x 1.25 " OD x 12 GA, SS

2шт.

7

BN308138

CO-AP, RH

1шт.

8

BN308140

COVER

CO-AP, Bin

1шт.

9

BN308141

SCREEN

CO-AP

1шт.

10

BN309335

FLANGE,2" ANSI Flange EPDM Gasket

2" ANSI Flange, EPDM

1шт.

11

BN309336

VALVE,2" Full Port Valve Male Adapter x 2" ANSI Flange

2" FP, ANSI Flange

1шт.

12

BN309337

LATCH

Flexible Draw

1шт.

13

BN309338

PIN

5/8 With Shoulder

1шт.

14

87265979

WINDOW

5.5 x 5.5, Supplemental Bin

1шт.

15

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

3шт.

16

BN310265

WASHER

10, Stainless Steel

3шт.

17

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

3шт.

18

BN310267

WASHER,5/8", Stainless Steel

1шт.

19

BN35705

BEARING HOUSING

Valmar, Housing, LH

1шт.

20

BN35706

BEARING HOUSING

Valmar, RH

1шт.

21

BN35707

BEARING CAP

Valmar, SS

2шт.

22

BN35761

HINGE

CO-AP Bin Cover

2шт.

23

87265978

WINDOW

Co-Ap Bin

1шт.

24

BN50142

WASHER,5/16", Stainless Steel

10шт.

25

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

4шт.

26

BN50234

BOLT,5/16"-18 X 1-1/4", Stainless Steel

2шт.

27

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

28

BN50258

BOLT,3/8"-16 X 1.25", Stainless

2шт.

29

BN50648

BOLT,5/8"-11 X 2.00", Stainless Steel

4шт.

30

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

31

BN55216

ROLL PIN

5/32 X 1-1/2, SS

4шт.

32

BN55361

NUT,5/16"-18, Nylon, Stainless

6шт.

33

BN55365

LOCK NUT,5/8"-11, Nylon, Stainless

5шт.

34

BN310648

LIGHT

1шт.

35

BN23002

SENSOR

Low Hopper - DJ100

1шт.

36

BN310644

MOUNTING PLATE

Bin Lights

1шт.

37

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

4шт.

38

BN55359

LOCK NUT,1/4"-20, SS

4шт.

39

BN23298

COVER

14 GA 304 1.5 X 2.0

1шт.

Выбрано товаров: 39
