Запчасти Case IH 438 (03-006) - VALVE BLOCK DOUBLE BIN Bin Group

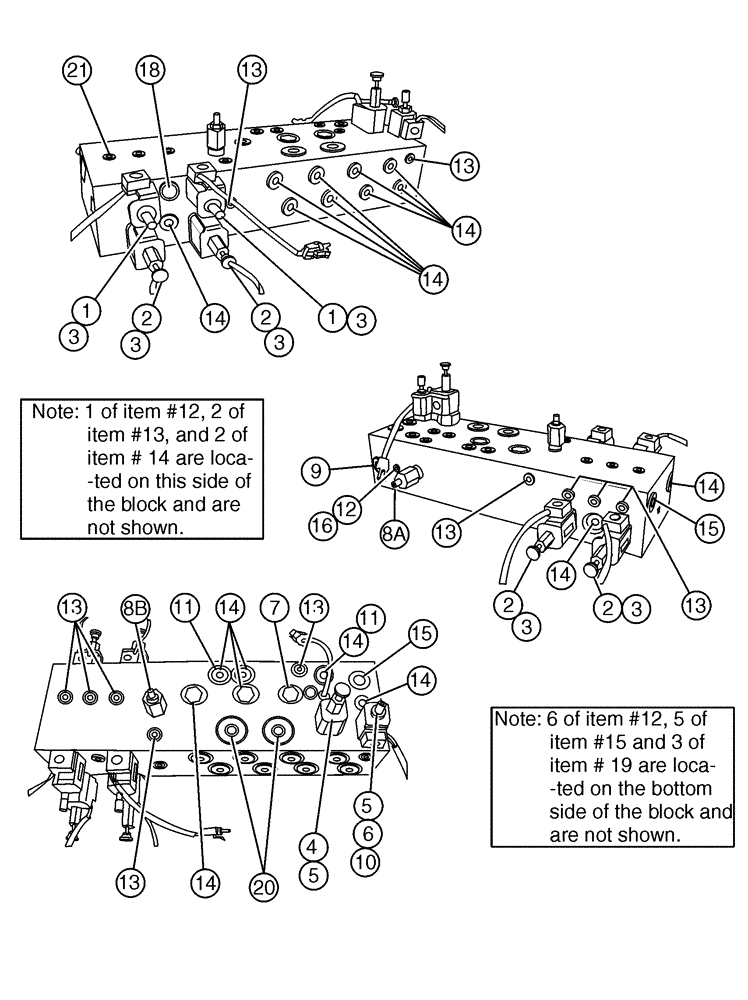

Схема запчастей Case IH 438 - (03-006) - VALVE BLOCK DOUBLE BIN Bin Group
18
14
3
14
6
14
14
13
14
3
3
14
8b
2
1
16
13
9
13
1
4
2
8a
15
3
13
15
13
13
10
11
2
11
14
2
14
5
12
5
7
13
14
20
21
3
3

Артикул

Название

Примечание

Количество

1

87270622

HYDRAULIC VALVE

Prop Flow Control

2шт.

2

BN303849

SOLENOID VALVE

2/3 Way

4шт.

3

BN300307

COIL

12 VDC, Traction

6шт.

4

BN303851

SOLENOID VALVE

2/2 Way

1шт.

5

BN300306

COIL

12VDC, Shift With Male Packard Connector

2шт.

6

BN303853

HYDRAULIC VALVE

2/2 Way Solenoid

1шт.

7

BN314658

CHECK VALVE

1шт.

8a

BN303855

VALVE PRESSURE RELIE

1шт.

8b

BN303856

VALVE PRESSURE RELIE

1шт.

9

BN303857

HYDRAULIC VALVE

Flow Control

1шт.

10

BN303859

PLUG

Orifice

1шт.

11

BN303860

SET SCREW

2шт.

12

86529630

PLUG,Hex Soc, 3/8"-24 ORB

8шт.

BN306437

O-RING

8шт.

Associated Part Of Plug, O-Ring, -3, 3/8-24, P/N BN300310

1шт.

13

9625178

PLUG,9/16" - 18 ORB

14шт.

BN306438

O-RING

6 SAE 90 DUR NITR

14шт.

Associated Part Of Plug, O-Ring, -6, 9/16-18, P/N BN300312

1шт.

14

BN303863

PLUG

Hollow Hex

19шт.

BN306439

O-RING

19шт.

Associated Part Of Plug, Hollow Hex, P/N BN303863

1шт.

15

BN303864

PLUG

Hollow Hex

7шт.

BN98017

O-RING

SAE-12 Buna N

7шт.

Associated Part Of Plug, Hollow Hex, P/N BN303864

1шт.

16

BN303865

PLUG

Orifice

1шт.

18

BN303867

PLUG

Cavity

1шт.

19

BN303868

PLUG

Hollow Hex

3шт.

BN306441

O-RING

3шт.

Associated Part Of Plug, Hollow Hex, P/N BN303868

1шт.

20

87363628

PLUG,1 - 5/16" - 12

fitting stl 1"mb skt hex

2шт.

BN306442

O-RING

2шт.

Associated Part Of Plug, Hollow Hex, P/N BN303869

1шт.

21

BN303847

BLOCK

Swiss Cheese, 3 Bin

1шт.

Выбрано товаров: 33
