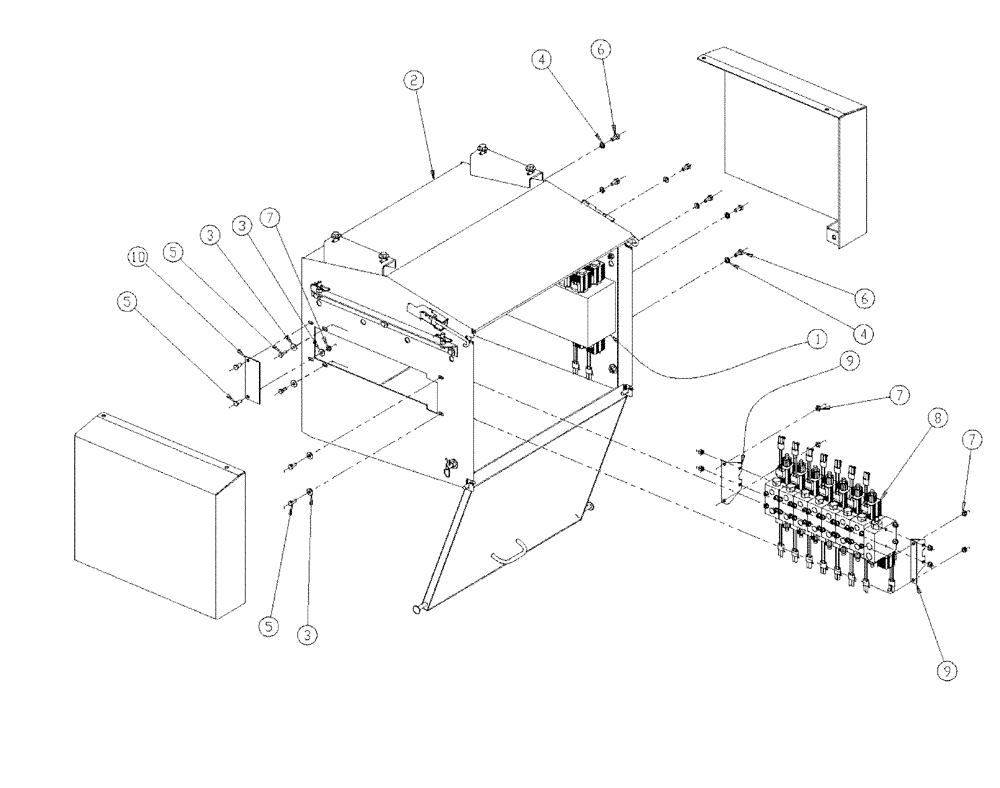

Запчасти Case IH 438 (03-005) - DOUBLE BIN - VALVE BOX GROUP Bin Group

1

NSS

NOT SOLD SEPARAT

Valve Block, Double

1шт.

See Fig. 03-006

1шт.

2

NSS

NOT SOLD SEPARAT

Valve Box Group

1шт.

See Fig. 02-003

1шт.

3

BN50138

WASHER,1/4", SS

6шт.

4

BN50144

LOCK WASHER

5/16" SS Lock

6шт.

5

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

6шт.

6

BN50476

BOLT,5/16"-18 x 0.75", Stainless

6шт.

7

BN55359

LOCK NUT,1/4"-20, SS

6шт.

8

NSS

NOT SOLD SEPARAT

Valve, 7 Bank

1шт.

See Fig. 02-005

1шт.

9

BN67858

MOUNTING PARTS

Waterman Valve

2шт.

10

BN67859

COVER

Waterman Valve

1шт.
