(02-005) - VALVE - WATERMAN 7 BANK

Запчасти Case IH 438 (02-005) - VALVE - WATERMAN 7 BANK Bin Group

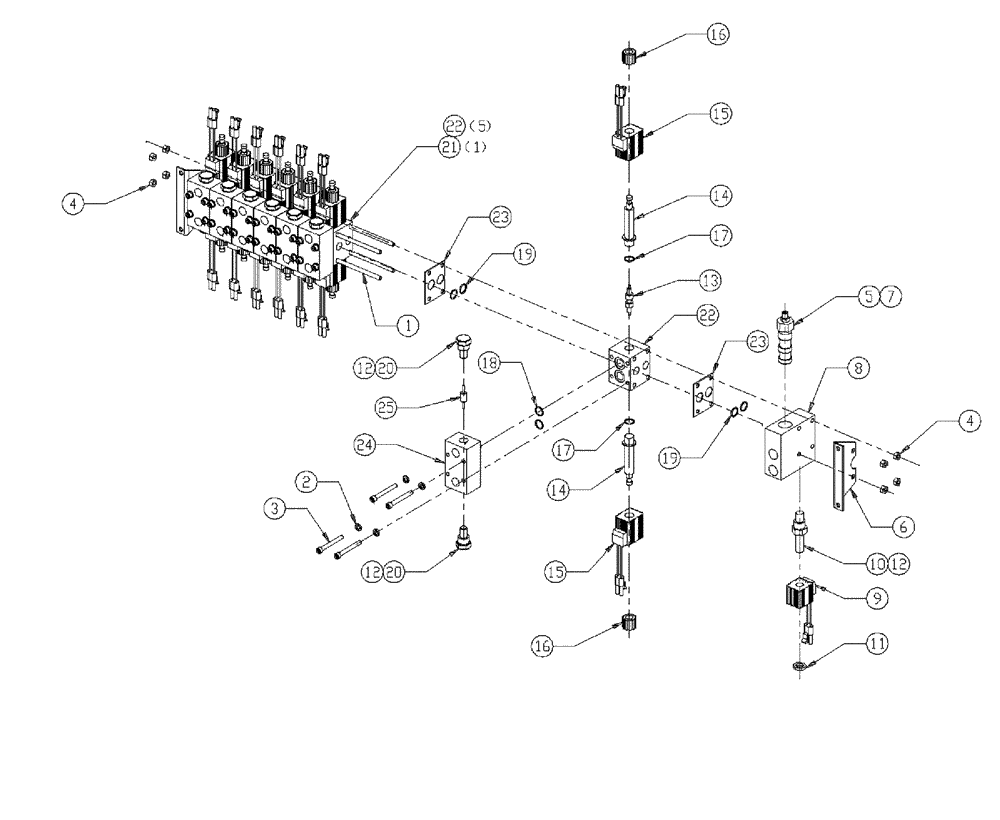

Схема запчастей Case IH 438 - (02-005) - VALVE - WATERMAN 7 BANK Bin Group
14
5
18
17
2
20
19
3
4
12
13
15
12
22
20
7
23
12
21
16
24
9
23
16
4
19
8
10
6
17
22
14
25
15
1
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN24141

THREADED TIE-ROD

1/4"-20 x 15-3/4"

4шт.

2

BN50139

WASHER

1/4" spring lock

28шт.

3

BN50799

SCREW,1/4" - 20 x 2 1/4", Stainless

1/4 - 20 X 2.25 SS

28шт.

4

280129

NUT,1/4"-20

4шт.

5

BN67314

VALVE

Flow Control, Waterman Stack

1шт.

6

BN67858

MOUNTING PARTS

Waterman Valve

2шт.

7

BN68208

SEAL

Kit, Flow Regulator

1шт.

8

BN68209

VALVE BLOCK

Body, Unloader

1шт.

9

BN98212

COIL

12 VDC Unloader Valve - W/Wire Leads & Packard Ends

1шт.

10

BN98217

CARTRIDGE

Unloader Valve #29345

1шт.

11

BN98218

NUT

Unloader Valve #29345

1шт.

12

BN98219

SEAL KIT

For Cartridge

15шт.

13

BN98220

SPOOL

Waterman Valve #29345

7шт.

14

BN98221

TUBE

Assy, Valve

14шт.

15

BN98222

COIL

W/Wire Lead & Pack-End

14шт.

16

BN98223

NUT

Waterman Valve #29345

14шт.

17

BN98224

O-RING

Tube Assy #98221

14шт.

18

BN98225

O-RING

Stacking Valve #29345

14шт.

19

BN98226

O-RING

Sandwich Valve #29345

14шт.

20

BN98227

VALVE

Check, 30 LB Waterman

14шт.

21

BN98324

BLOCK

End

1шт.

22

BN98325

BLOCK

(Center) 29345

6шт.

23

86986508

PLATE

Backing, Anodized

7шт.

24

BN98677

BLOCK

For 29345A (Dual)

7шт.

25

BN98679

CHECK VALVE

Piston, Dual, 29345

7шт.
