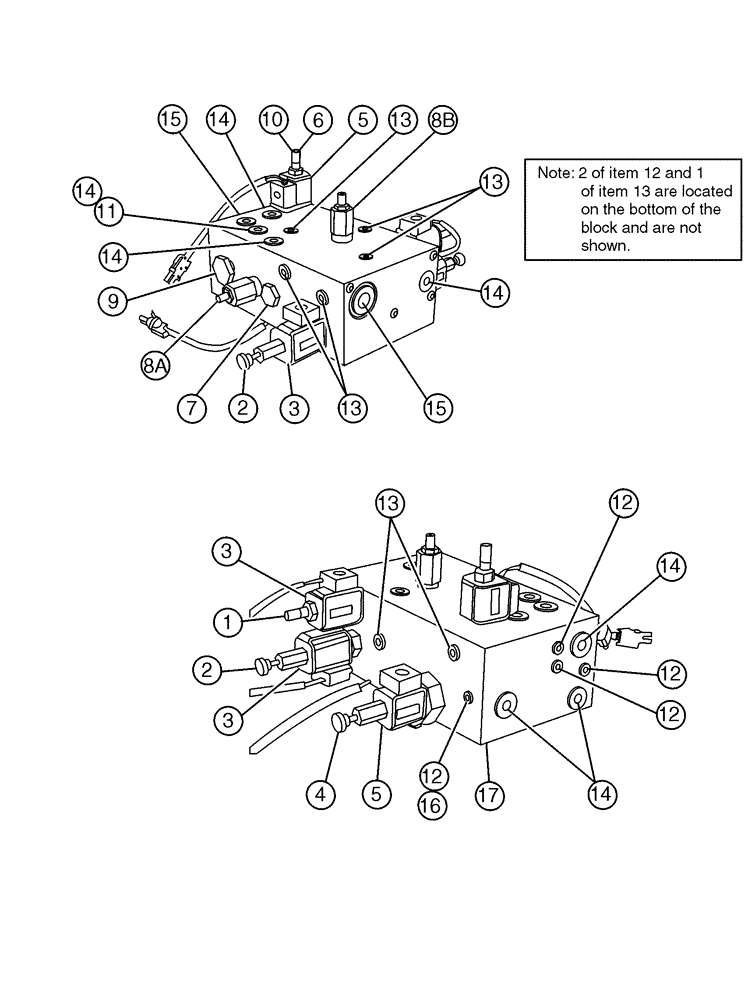

Запчасти Case IH 438 (02-004) - VALVE BLOCK, SINGLE Bin Group

1

87270622

HYDRAULIC VALVE

Prop Flow Control

1шт.

2

BN303849

SOLENOID VALVE

2/3 Way

2шт.

3

BN300307

COIL

12 VDC, Traction

3шт.

4

BN303851

SOLENOID VALVE

2/2 Way

1шт.

5

BN300306

COIL

12VDC, Shift With Male Packard Connector

2шт.

6

BN303853

HYDRAULIC VALVE

2/2 Way Solenoid

1шт.

7

BN314658

CHECK VALVE

1шт.

8a

BN303855

VALVE PRESSURE RELIE

1шт.

8b

BN303856

VALVE PRESSURE RELIE

1шт.

9

BN303857

HYDRAULIC VALVE

Flow Control

1шт.

10

BN303859

PLUG

Orfice

1шт.

11

BN303860

SET SCREW

1шт.

12

86529630

PLUG,Hex Soc, 3/8"-24 ORB

6шт.

BN306437

O-RING

6шт.

Associated Part Of Plug, O-Ring, -3, 3/8-24, P/N BN300310

1шт.

13

9625178

PLUG,9/16" - 18 ORB

8шт.

BN306438

O-RING

6 SAE 90 DUR NITR

8шт.

Associated Part Of Plug, O-Ring, -6, 9/16-18, P/N BN300312

1шт.

14

BN303863

PLUG

Hollow Hex

7шт.

BN306439

O-RING

7шт.

Associated Part Of Plug, O-Ring, -6, 9/16-18, P/N BN300312

1шт.

15

BN303864

PLUG

Hollow Hex

2шт.

BN98017

O-RING

SAE-12 Buna N

2шт.

Associated Part Of Plug, Hollow Hex, P/N BN303864

1шт.

16

BN303865

PLUG

Orifice

1шт.

17

BN303866

BLOCK

Swiss Cheese, S. Bin

1шт.
