Запчасти Case IH 438 (02-003) - VALVE BOX GROUP Bin Group

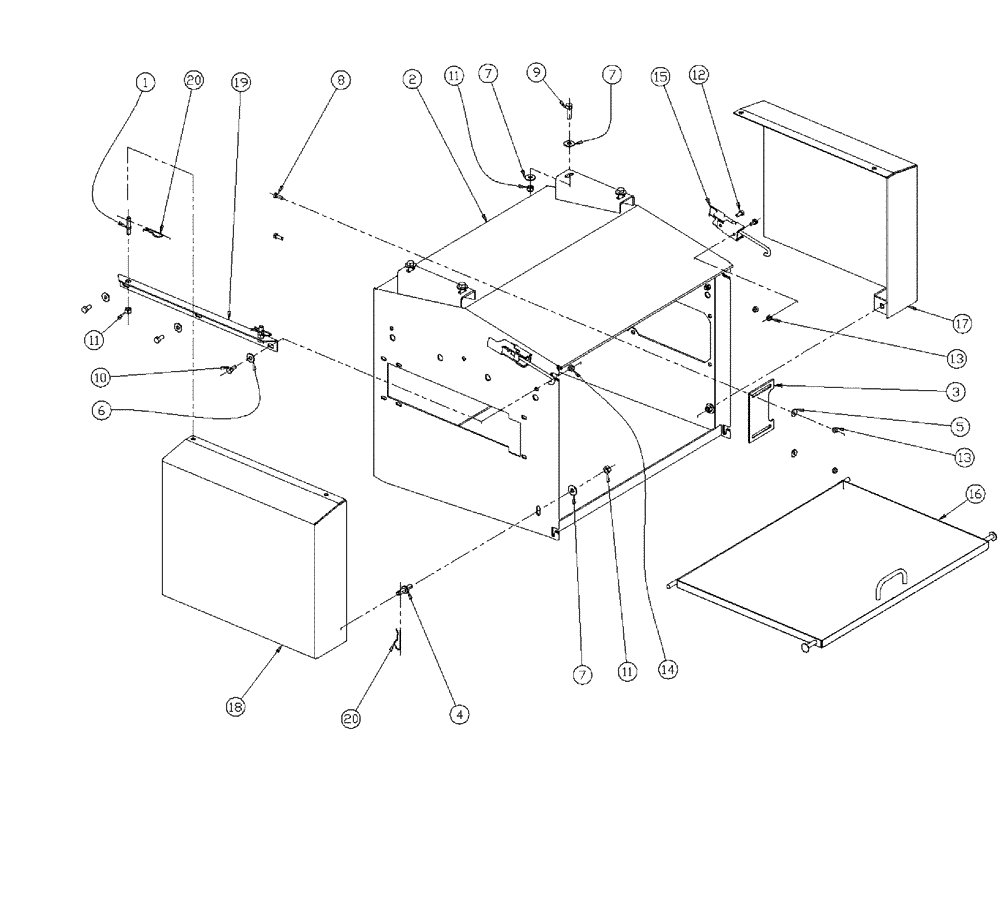

Схема запчастей Case IH 438 - (02-003) - VALVE BOX GROUP Bin Group
12
11
6
20
7
13
11
11
19
15
8
4
18
2
1
17
5
14
7
10
13
16
9
7
20
3

Артикул

Название

Примечание

Количество

1

BN307047

PIN

3/8 With Shoulder

4шт.

2

BN302773

HYDRAULIC VALVE

1шт.

3

BN306268

COVER

Access, Valve Box

1шт.

4

BN310283

PIN

3/8 With .75 Shoulder

2шт.

5

BN50138

WASHER,1/4", SS

2шт.

6

BN50142

WASHER,5/16", Stainless Steel

6шт.

7

BN50146

WASHER,3/8", Stainless

10шт.

8

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

9

BN50258

BOLT,3/8"-16 X 1.25", Stainless

4шт.

10

BN50476

BOLT,5/16"-18 x 0.75", Stainless

6шт.

11

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

10шт.

12

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

4шт.

13

BN55359

LOCK NUT,1/4"-20, SS

6шт.

14

BN55361

NUT,5/16"-18, Nylon, Stainless

6шт.

15

BN65808

LATCH

Adjustable Draw

2шт.

16

BN67849

DOOR

Valve Box

1шт.

17

BN67852

COVER

Side, RH

1шт.

18

BN67855

COVER

Side, LH

1шт.

19

BN67857

ANGLE

Mount, Side Cover

2шт.

20

BN71007

CLIP,3/16" Hairpin

3/16" #8

6шт.

Выбрано товаров: 20
