Запчасти Case IH 438 (02-001) - SINGLE BIN GROUP Bin Group

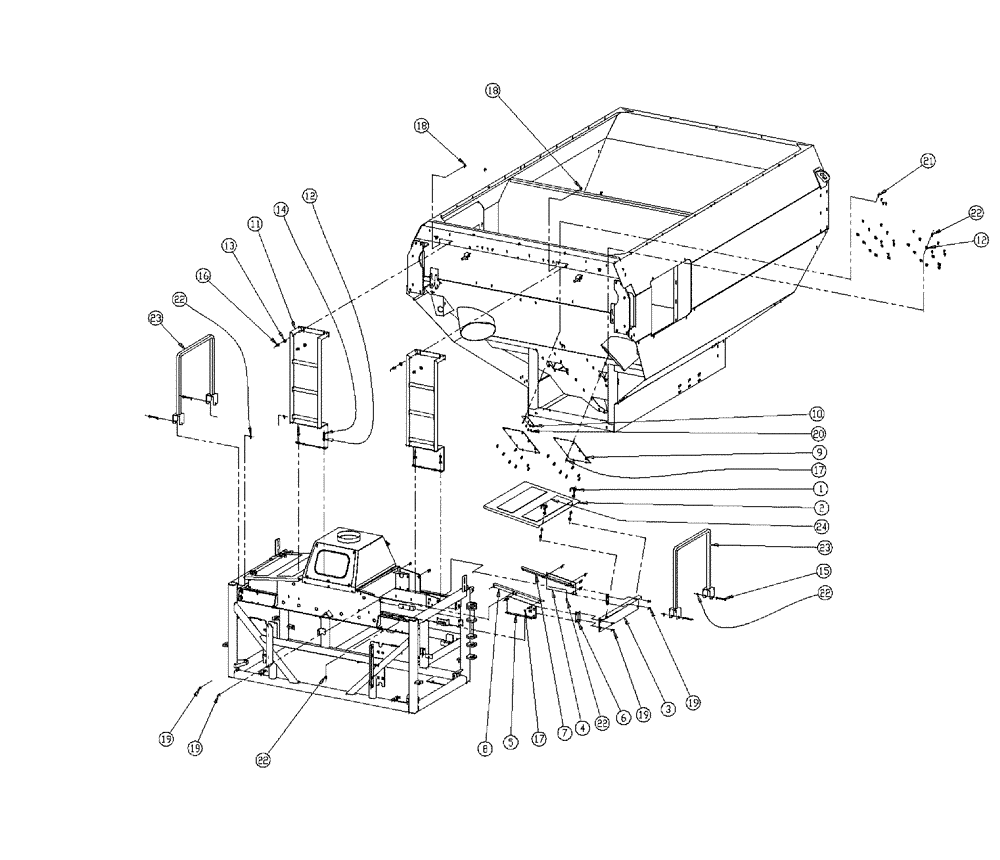

Схема запчастей Case IH 438 - (02-001) - SINGLE BIN GROUP Bin Group
23
19
23
15
8
2
16
17
3
24
12
22
1
22
20
19
9
17
11
12
18
22
14
22
4
22
19
6
21
19
5
7
13
18
10

Артикул

Название

Примечание

Количество

1

342478A1

LATCH

Swell

4шт.

2

BN307755

COVER

Single Bin

2шт.

3

BN307756

COVER

Support

2шт.

4

BN307757

COVER

Support, RH

2шт.

5

BN307758

COVER

Side, Support, LH

2шт.

6

BN307759

COVER

Angle, End, Support

4шт.

7

BN307760

COVER

Side, Support, RH

2шт.

8

BN307762

COVER

Side, Support, LH

2шт.

9

BN309886

COVER

Auxiliary Auger Hole

2шт.

10

BN309887

COVER

Sensor Hole

1шт.

11

BN35731

LADDER

Single Bin

2шт.

12

BN50142

WASHER,5/16", Stainless Steel

20шт.

13

BN50146

WASHER,3/8", Stainless

4шт.

14

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

4шт.

15

BN50242

BOLT,5/16"-18 X 3-1/4", Stainless Steel

4шт.

16

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

17

BN50476

BOLT,5/16"-18 x 0.75", Stainless

18шт.

18

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

19

BN50767

WASHER

SCR, 1/4" X 3/4", HH, STP

32шт.

20

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

4шт.

21

BN55359

LOCK NUT,1/4"-20, SS

4шт.

22

BN55361

NUT,5/16"-18, Nylon, Stainless

26шт.

23

BN65393

HANDRAIL

Flex-Air

2шт.

24

BN65578

STRIP

Flex Tred, 6 X 26

4шт.

Выбрано товаров: 24
