(17-001) - DASH PANEL GROUP, RH FLEX

Запчасти Case IH 438 (17-001) - DASH PANEL GROUP, RH FLEX (16) - FOAM MARKER

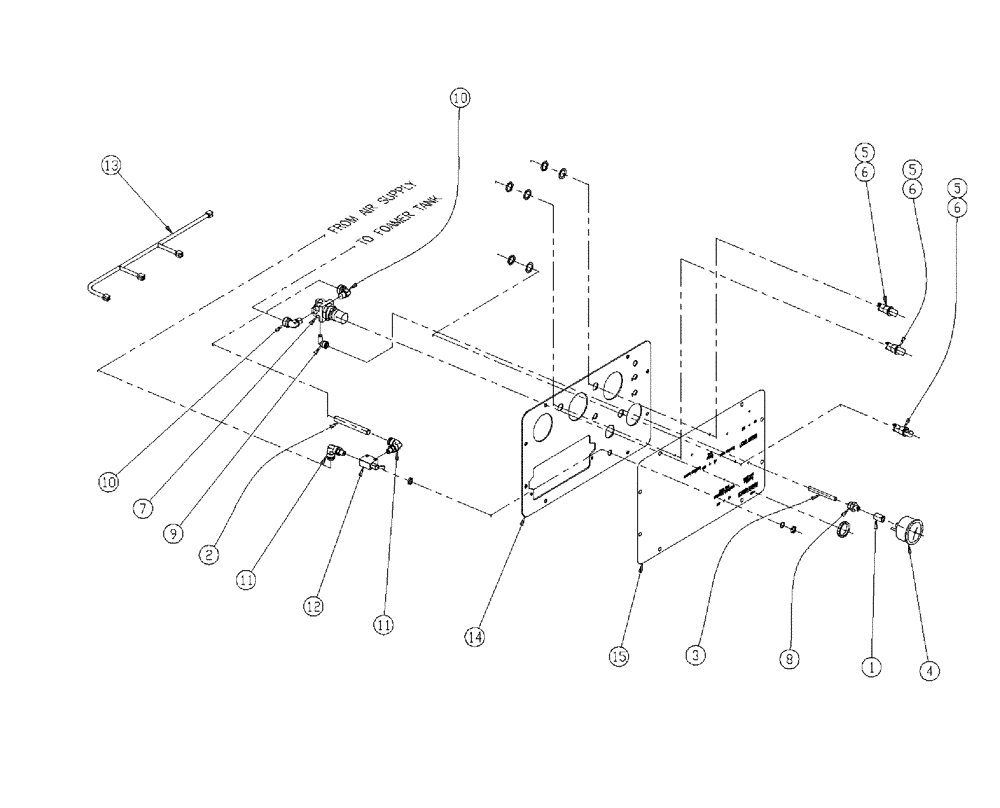

Схема запчастей Case IH 438 - (17-001) - DASH PANEL GROUP, RH FLEX (16) - FOAM MARKER
11
6
14
6
11
7
3
9
15
13
5
2
10
6
1
5
12
4
10
8
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN338422

1/8 STD

1шт.

2

BN2292088

AIR INTAKE TUBE

3/8" Black

1шт.

3

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

1шт.

4

BN2296768

GAUGE

Air Pressure 0 - 60

1шт.

5

BN2297225

LIGHT

39F3462

3шт.

6

BN2390267

BULB

ML1815T 3-1/4"

3шт.

7

87388151

REGULATOR

Air Pressure

1шт.

8

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

9

BN2399405

90 ELBOW

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

10

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

2шт.

11

BN2399413

HYD CONNECTOR

Tube ME380180

2шт.

12

BN2402091

VALVE

Air Toggle 3-Way

1шт.

13

BN305131

WIRE HARNESS

RH Dash Lights

1шт.

14

BN310698

PANEL

RH Dash

1шт.

15

BN310699

DECAL

RH Dash, Flex-Air

1шт.
