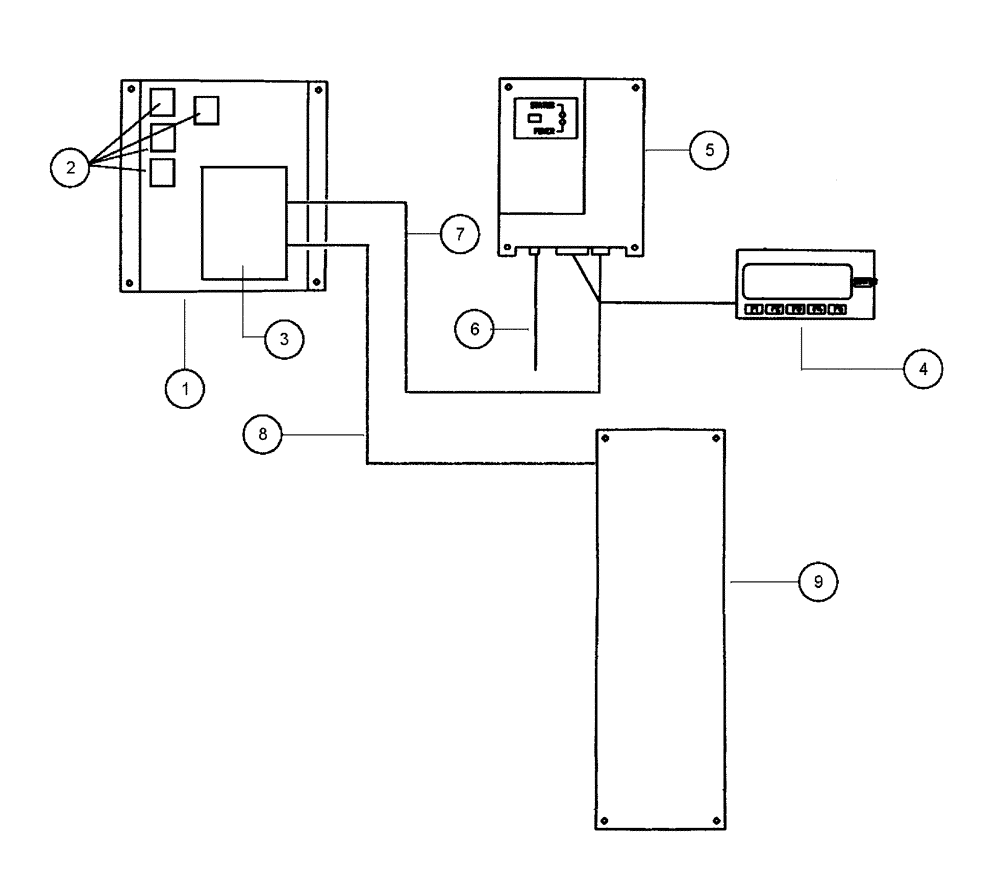

Запчасти Case IH 438 (22-003) - ASSEMBLY - FLEX-AIR CONTROL (06) - ELECTRICAL

1

BN15745

Relay-Panel Assembly

1шт.

2

BN24056

RELAY

SPDT 30/20 AMP BOSC

4шт.

3

BN16269

MODULE

Interface, Flex-Air 1400

1шт.

4

BN302908

HEAD

Flex Display LS

1шт.

Must Be Used With 4312 Software

1шт.

5

BN35845

CONTROL UNIT

Flex Air DC2

1шт.

6

BN16227

CABLE

DC2 Serial

1шт.

7

BN35833

WIRE HARNESS

Flex, Cab/Controller

1шт.

8

BN35834

WIRE HARNESS

Flex, Cab/Solenoid

1шт.

9

NSS

NOT SOLD SEPARAT

Flex-Air Control Panel

1шт.

See Fig. 22-001

1шт.
