Запчасти Case IH 438 (22-001) - FLEX-AIR CONTROL PANEL (06) - ELECTRICAL

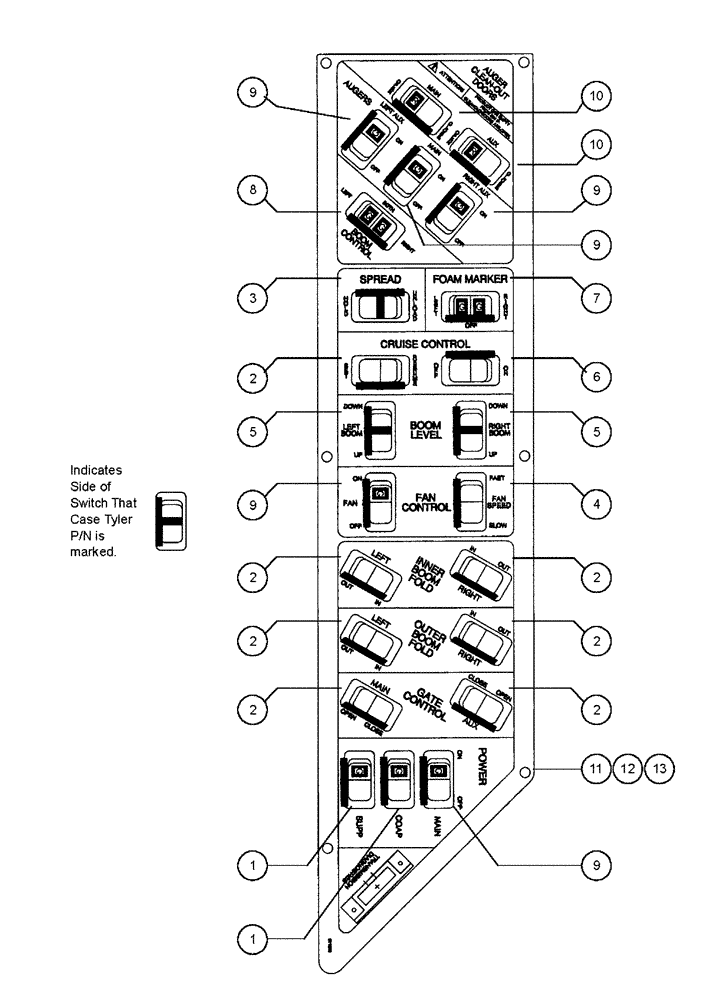

Схема запчастей Case IH 438 - (22-001) - FLEX-AIR CONTROL PANEL (06) - ELECTRICAL
2
4
2
6
9
9
5
1
5
1
2
12
10
9
2
7
2
2
9
2
10
3
11
9
8
13

Артикул

Название

Примечание

Количество

1

BN310464

SWITCH

DPST, On-None-Off

2шт.

2

BN310461

SWITCH

DPDT, (On)-Off-(On)

7шт.

3

BN310459

SWITCH

DPDT, (On)-Off-On

1шт.

4

BN310640

SWITCH

DPDT, (On)-Off-(On)

1шт.

5

BN310462

SWITCH

DPDT, (On)-Off-(On)

2шт.

6

BN310463

SWITCH

DPDT, On-None-On

1шт.

7

BN310460

SWITCH

DPDT, On-Off

1шт.

8

BN310465

SWITCH

DPDT, On-Off-On

1шт.

9

BN310458

SWITCH

SPST, On-None-Off

5шт.

10

BN313883

SWITCH

DPDT, On-None-On

2шт.

11

BN311112

RIVET

1/4"-20 x .75, BHCS

6шт.

12

BN311215

PANEL

Dash

1шт.

13

BN311218

DECAL

Panel, Dash

1шт.

Выбрано товаров: 13
