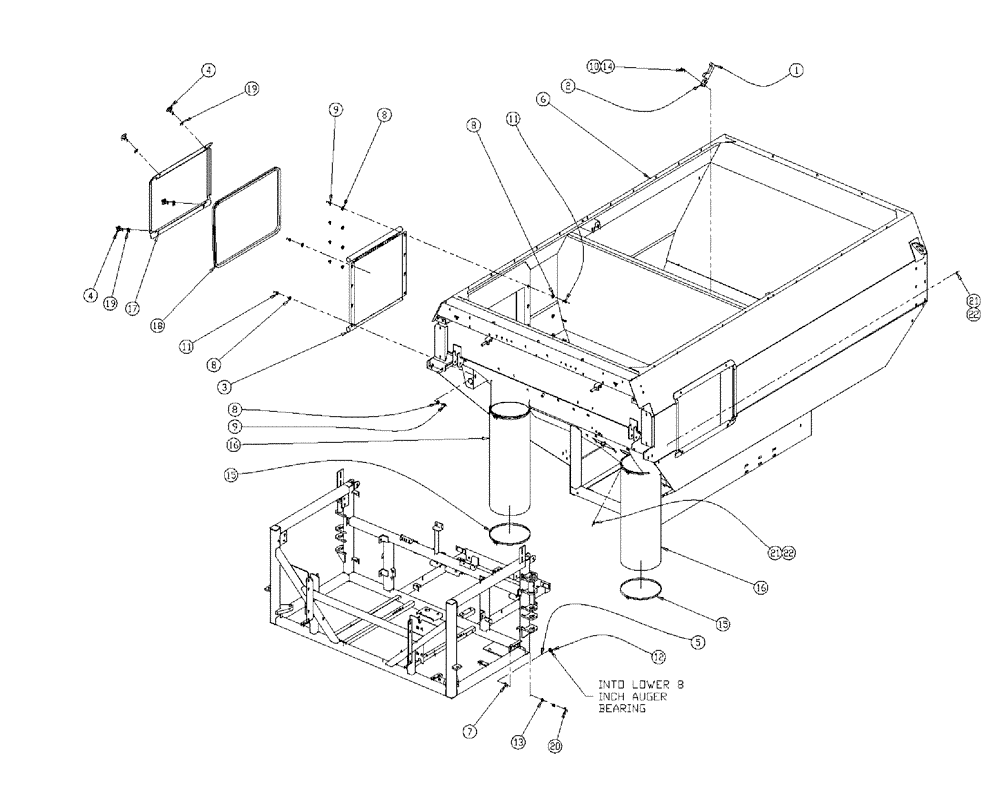

Запчасти Case IH 438 (01-005) - BOX PARTS GROUP Basic Unit

1

BN23002

SENSOR

Low Hopper - DJ100

1шт.

2

BN23298

COVER

14 GA 304 1.5 X 2.0

1шт.

3

BN24984

OIL COOLER

Hydraulic

2шт.

4

BN29392

KNOB

3" With 3/8"-16 Female Thread

8шт.

5

BN311096

HOSE

Grease, 104.0, Swivel

1шт.

6

BN35592

Body - Flex Air

1шт.

7

BN35805

ADAPTER

STR 1/8 NPSM - NPTF

1шт.

8

BN50146

WASHER,3/8", Stainless

24шт.

9

BN50254

BOLT,3/8"-16 x 1", Stainless

12шт.

10

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

11

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

12шт.

12

BN311142

ELBOW

1/4-28 UNFT x 1/8-27 NPTF 90

1шт.

13

BN53570

BHD LOCK NUT

1шт.

14

BN55359

LOCK NUT,1/4"-20, SS

2шт.

15

BN66817

CLAMP

Hose, 12 Inch

4шт.

16

BN66818

HOSE

12" OD x 35 Rings, 34 Min

2шт.

17

BN68830

SCREEN

Side Cooler

2шт.

18

BN68831

SEAL

Side Cooler Screen

2шт.

19

BN68832

CLIP

J-Type, 3/8-16

8шт.

20

BN69951

CAP

Grease

1шт.

21

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

2шт.

22

BN9990114

STRAP

"Eye Ty" 06205 3M

2шт.
