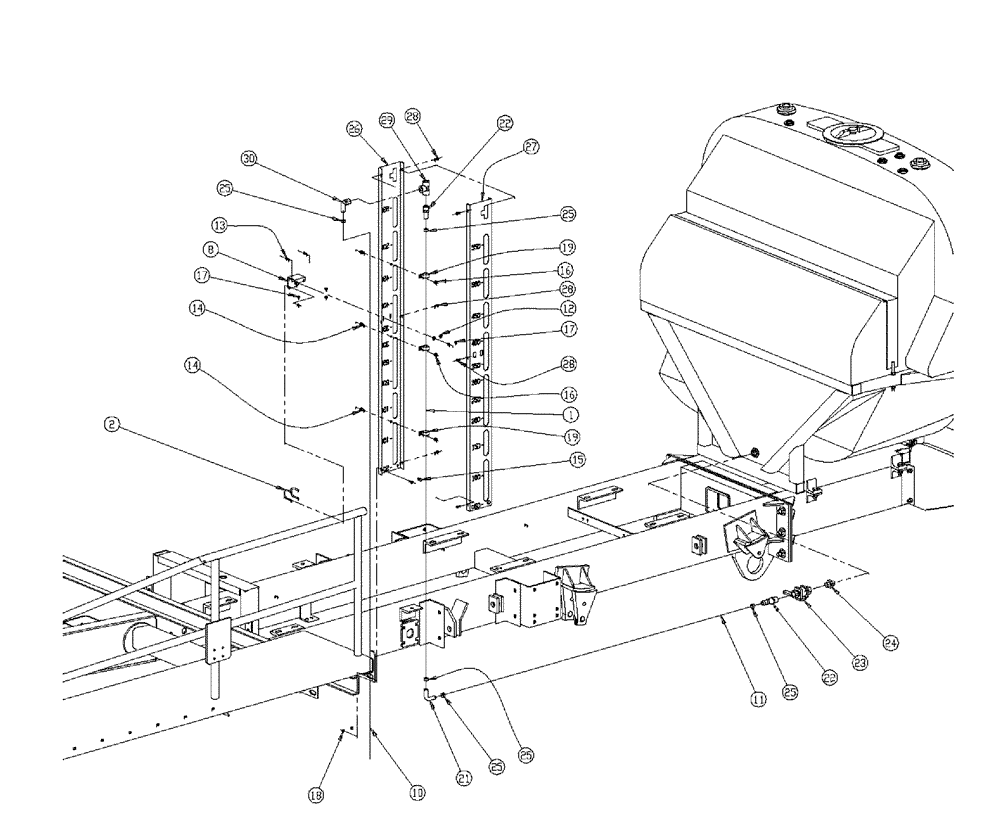

Запчасти Case IH 438 (18-013) - SIGHT GAUGE GROUP Wet Kit

1

BN23414

.75" X 72" Eva Plastic

1шт.

2

BN304156

U-1/4-20

2шт.

8

BN319807

MOUNTING PLATE

Sight Gauge

1шт.

10

BN310323

3/4 X 100 Eva Plastic

1шт.

11

BN310324

3/4" EPDM x 190"

1шт.

12

BN50138

WASHER,1/4", SS

2шт.

13

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

14

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

3шт.

15

BN50476

BOLT,5/16"-18 x 0.75", Stainless

2шт.

16

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

3шт.

17

BN55359

LOCK NUT,1/4"-20, SS

6шт.

18

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.

19

87035382

CLAMP,30.2mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

21

BN73559

FITTING

3/4" 90 Degree H/Barb POL

1шт.

22

BN73561

FITTING

3/4 NPT X 3/4 HS

2шт.

23

BN73564

VALVE

3/4" Ball Poly 2 Way

1шт.

24

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

1шт.

25

BN310446

HOSE CLAMP

#12, Stainless Steel

5шт.

26

BN320121

GAUGE

Sight, Inner Post

1шт.

27

BN312798

SIGHTGLASS

Post, Outer

1шт.

28

BN50767

WASHER

1/4" X 3/4", HH, STP

6шт.

29

BN73560

TEE

3/4" NPT, Poly

1шт.

30

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

1шт.
