Запчасти Case IH 438 (18-011) - PUMP STATION GROUP, VALVES Wet Kit

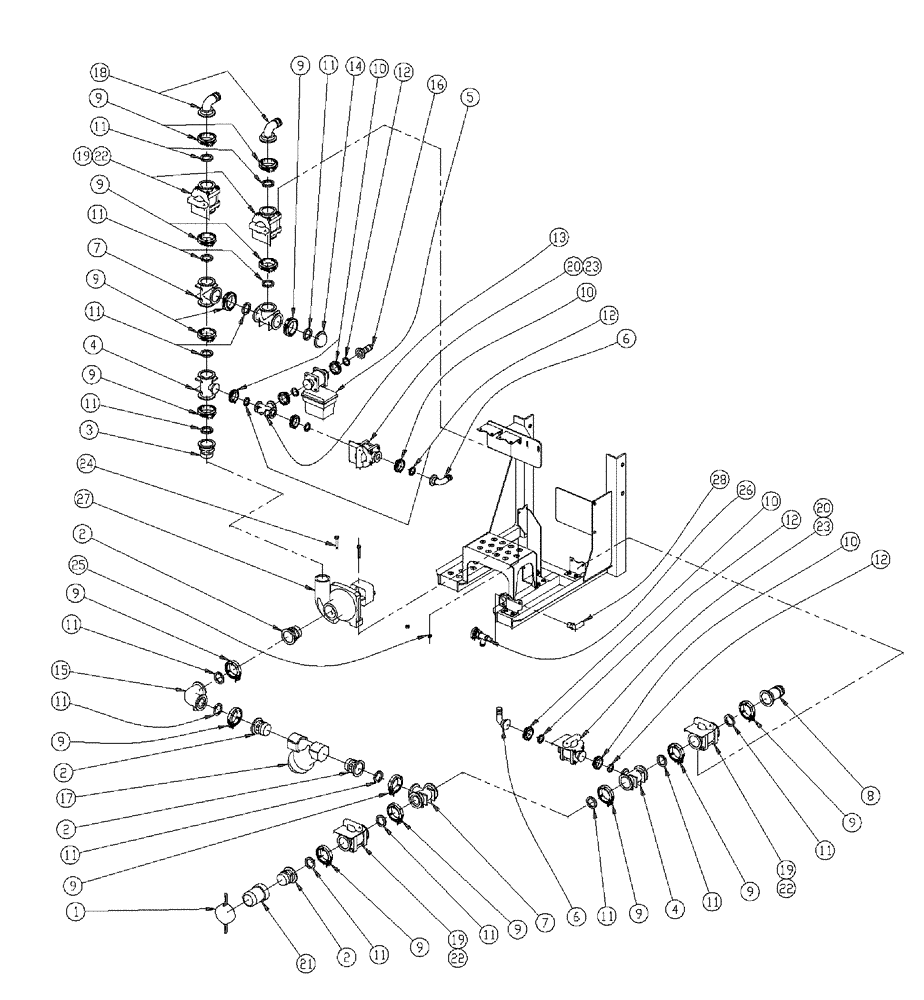

Схема запчастей Case IH 438 - (18-011) - PUMP STATION GROUP, VALVES Wet Kit
22
9
12
2
2
11
11
11
9
11
20
9
10
16
19
11
26
9
11
23
2
19
9
3
4
14
20
19
18
6
11
9
11
12
28
12
12
24
4
22
22
27
11
1
10
11
21
11
25
8
17
15
11
7
9
2
10
9
6
7
13
23
11
9
9
5
9
10
9

Артикул

Название

Примечание

Количество

1

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

2

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2" Flange x 2" NPT

4шт.

3

BN303190

FITTING,2" Flange x 1-1/2" NPT, Poly

2" Flange x 1-1/2" NPT, Poly

1шт.

4

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

2 FL x 1 FL

2шт.

5

BN303193

VALVE,STD Port Regulating 1”, 4 Second, 2 Wire ARBBCWDG

electric 2 way 1"

1шт.

6

435587A1

FITTING,1" Flange x 1" 90 Degree Hose Barb Elbow

1" Flange x 1" Hose Barb, Poly

2шт.

7

405779A1

TEE,2" Port Flanged Tee

Poly 2" Flange Manifold

3шт.

8

405780A1

FITTING,2" Flange x 2" Hose Barb

2" Flange x 2" Hose Barb, Poly

1шт.

9

BN303199

CLAMP,2" Flange

2" Standard Flange

16шт.

10

BN303203

CLAMP,1" Flange

1 FL

7шт.

11

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

16шт.

12

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

7шт.

13

405787A1

TEE,1" Flanged Tee

poly 1 flange manifold

1шт.

14

86984085

PLUG,2" Flange Plug

2" Manifold

1шт.

15

BN304318

COUPLING,90 Degree Elbow, 2" Flange x 2" Flange, Poly

2" flange, 90

1шт.

16

BN304319

FITTING,1" Flange x 1" Hose Barb, Poly

1" Flange x 1" Barb

1шт.

17

BN304320

FILTER STRAINER,2" x 2" Y Strainer

Line, 2, 12 Mesh

1шт.

18

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" Hose Barb, Poly

2шт.

19

BN304328

VALVE,2" FP Valve w/C-Flng & T Handle

Ball, 2" FL, W/T Handle

4шт.

20

BN304329

VALVE,1"FP Valve w/C-Flng & T Handle

Ball, 1" FL, W/T-Handle

2шт.

21

BN304330

ADAPTER

2" Cam X 2" NPT

1шт.

22

BN320997

BRACKET

Decal Mount (SS)

4шт.

23

BN320998

PLATE

Decal Mount (SS)

2шт.

24

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

2шт.

25

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

26

BN53817

DRAIN VALVE

Plastic, 1/2" NPT

1шт.

27

NSS

NOT SOLD SEPARAT

Pump-Hypro, 2" Inlet HM1

1шт.

See Fig. 13-001

1шт.

28

BN73519

ELBOW

1/2" NPT x 3/4" Hose Barb

1шт.

Выбрано товаров: 29
