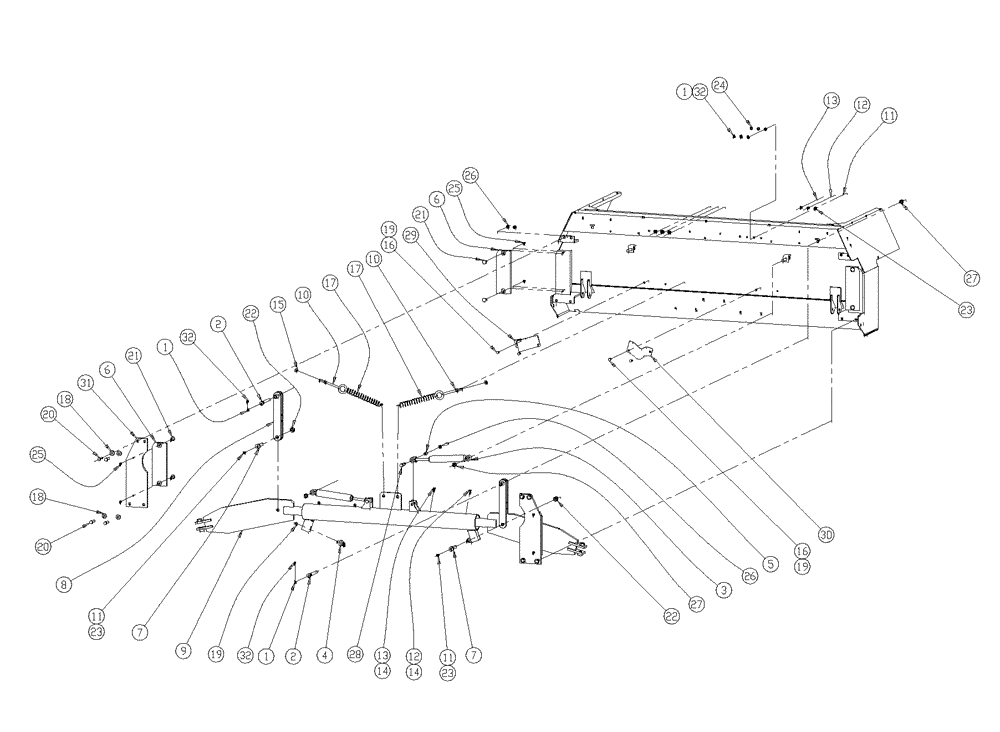

Запчасти Case IH 438 (01-004) - BOOM SWING GROUP Basic Unit

1

BN10057

LUBE NIPPLE,1/4"-28 x 90

8шт.

2

BN15466

BOLT

Grease, 5/8"-11 x 6.0

2шт.

3

BN21565

SHOCK ABSORBER

2шт.

4

BN25232

BUMPER

1.56" Dia - Urethane

2шт.

5

BN29612

BUSHING

5/8" od x 17 ga x 1.31" Long

2шт.

6

BN301598

WEAR PLATE

Boomswing, .75

4шт.

7

BN311095

BOLT

3/4-10 X 3

2шт.

8

BN35452

ARM

boomswing

2шт.

9

BN35456

BOOM

1шт.

10

BN35463

EYEBOLT

1/2-13 UNC X 6

2шт.

11

BN35808

HOSE,0.13" ID x 30.00", SAE 100R7

30"

2шт.

12

BN35809

HOSE,0.13" ID x 20.00", SAE 100R7

Grease

2шт.

13

BN35810

HOSE,0.13" ID x 16.00", SAE 100R7

Grease

2шт.

14

BN35811

ADAPTER

45º, Style 2

4шт.

15

BN50071

NUT,1/2"-13, Stainless

4шт.

16

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

17

BN50542

SPRING

2.21 OD x 14.312 Wire

2шт.

18

BN50595

WASHER,1/2", Stainless

8шт.

19

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

6шт.

20

BN50786

BOLT,1/2"-13 x 2", Stainless

8шт.

21

BN50930

BOLT,5/16"-18 x 1.5", EH, DOR

8шт.

22

BN50969

NUT

3/4-10, NLN, G5

2шт.

23

BN53569

ELBOW

Grease, 1/8 NPT BH 90

8шт.

24

BN53570

BHD LOCK NUT

6шт.

25

BN55361

NUT,5/16"-18, Nylon, Stainless

8шт.

26

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

10шт.

27

BN55365

LOCK NUT,5/8"-11, Nylon, Stainless

4шт.

28

BN55368

BOLT,1/2"-13 X 2-1/2", Stainless Steel

2шт.

29

BN67139

BUMPER

Stop, FA, RH

1шт.

30

BN67140

COVER

Bumper Stop, FA, LH

1шт.

31

BN68815

PLATE

Bolt On Boomswing

2шт.

32

BN69951

CAP

Grease

8шт.
