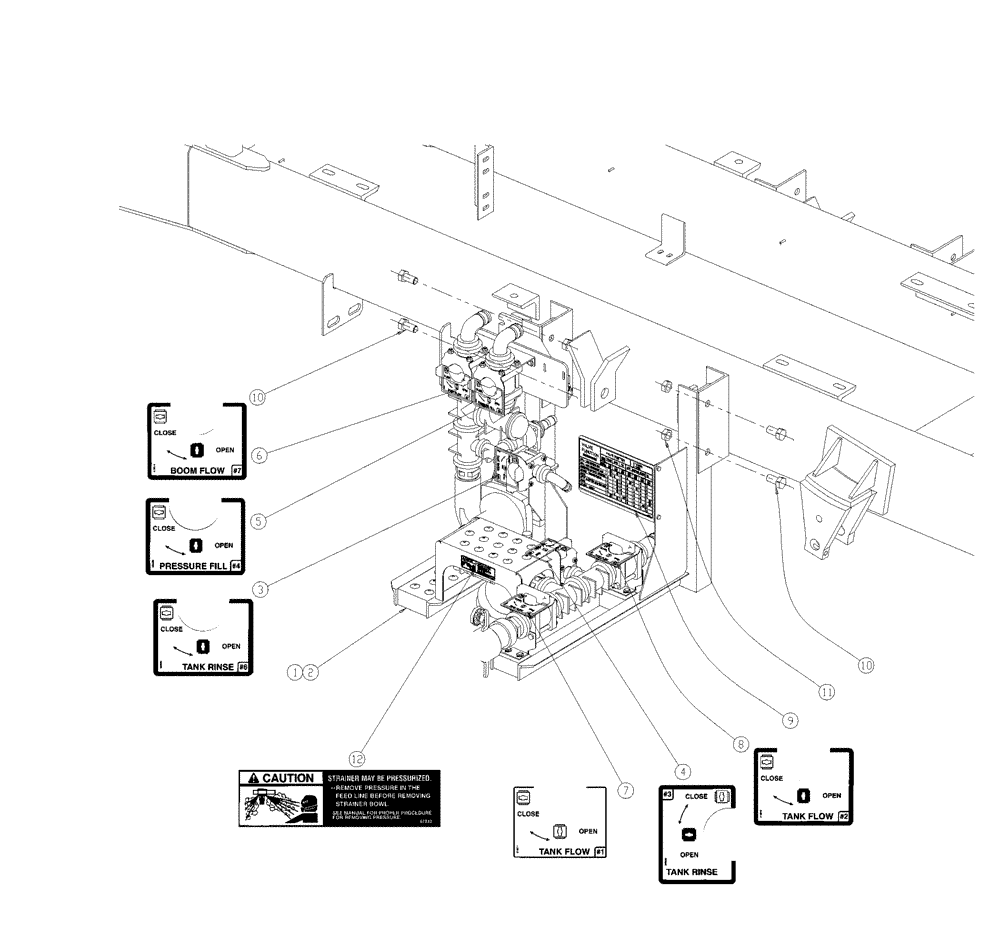

Запчасти Case IH 438 (18-009) - PUMP STATION GROUP Wet Kit

1

NSS

NOT SOLD SEPARAT

Station Group Brackets

1шт.

See Fig. 18-010

1шт.

2

NSS

NOT SOLD SEPARAT

Station Group, Valves

1шт.

See Fig. 18-011

1шт.

3

BN306582

DECAL

tank rinse

1шт.

4

BN306583

DECAL

tank rinse

1шт.

5

BN306585

DECAL

pressure fill

1шт.

6

BN310013

DECAL

Boom Flow

1шт.

7

BN310017

DECAL

Tank Fill, Outside

1шт.

8

BN310018

DECAL

Tank Fill, Inside

1шт.

9

BN310019

DECAL

Valve Control

1шт.

10

BN50330

BOLT

3/4-10 X 1.5, HH, 5, BK

4шт.

11

BN50969

NUT

3/4-10, NLN, G5

4шт.

12

BN67243

DECAL

Strainer Pressure

1шт.
