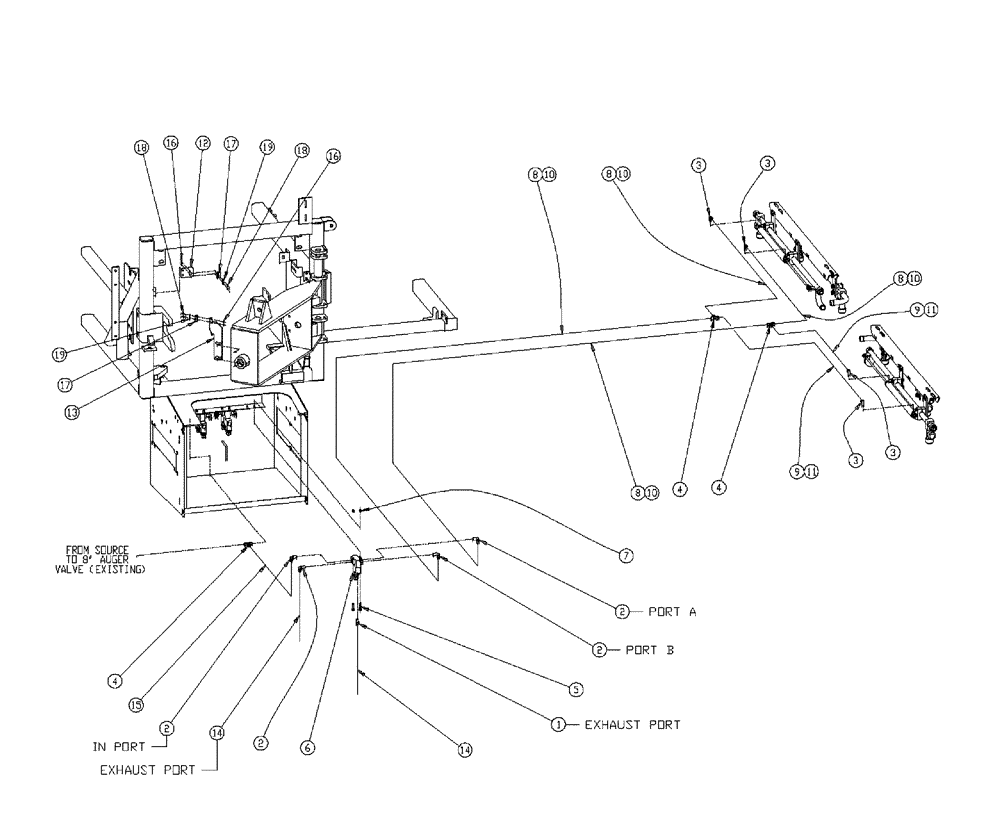

Запчасти Case IH 438 (18-006) - PNEUMATIC GROUP, R SPRAY BAR Wet Kit

1

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

2

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

4шт.

3

BN2399405

90 ELBOW

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

4шт.

4

BN2399408

UNION TEE

Tube UTC140

3шт.

5

BN300403

BOLT

10-32 X 1.25, PHR, SS

2шт.

6

NSS

NOT SOLD SEPARAT

Valve, Air, 12 VDC, 2 Position

1шт.

See Fig. 16-001

1шт.

7

BN303136

NUT

10-32, NLN, G5

2шт.

8

BN303141

AIR HOSE,155.00"

Blue

4шт.

9

BN303142

AIR HOSE,65.00"

1/4, Blue

2шт.

10

BN303180

LOOM

Plastic, 1/4" X 100"

4шт.

11

BN303181

LOOM

Plastic, 1/4" X 100"

2шт.

12

BN303223

BRACKET

Magnetic Switch

1шт.

13

BN303227

BRACKET

Magnetic Switch

1шт.

14

BN303254

AIR HOSE,43.00"

1/4", Black

2шт.

15

BN303257

AIR HOSE,33.00"

1/4", Black

1шт.

16

BN50125

NUT

4-40, HH, G5

4шт.

17

BN68182

ACTUATOR

Magnetic, 12V

2шт.

18

BN68260

SCREW,Hex, #4 - 40 x 1/2", Gr 5

HH, #4-40 x .50, G5

4шт.

19

BN68261

WASHER

#4, Flat, G5

4шт.
