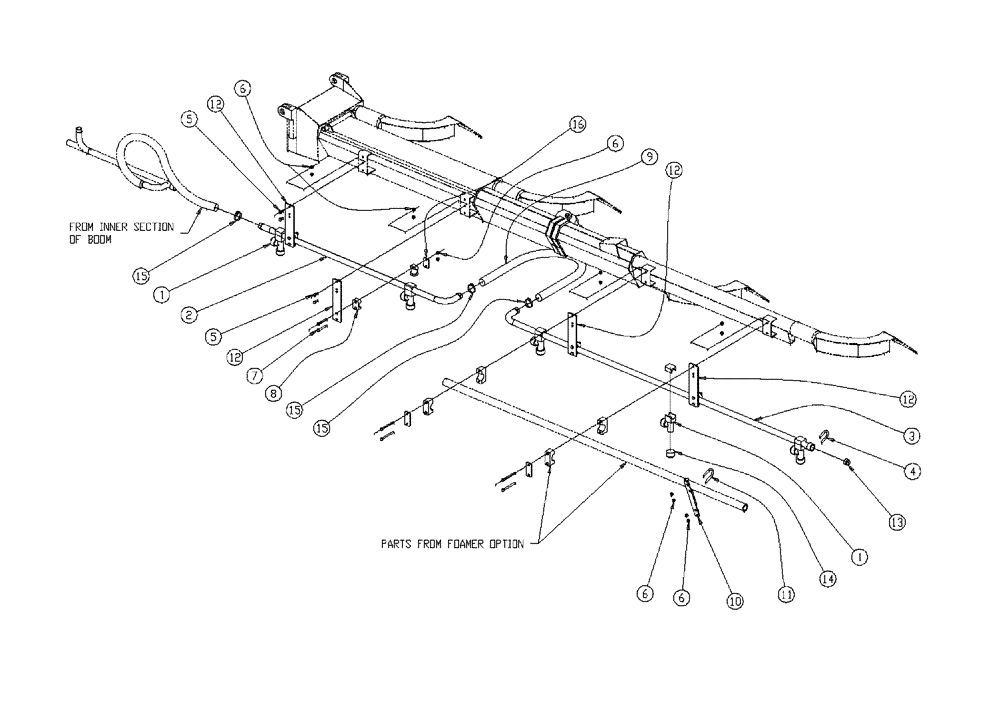

Запчасти Case IH 438 (18-002) - BOOM PLUMBING, 2.5, LH, OUTER Wet Kit

1

BN25237

NOZZLE

Nozzle (1 Way) 3/4" Pipe

5шт.

2

BN300320

BAR

Spray, Mid, LH

1шт.

3

BN300321

BAR

Spray, Outer, LH

1шт.

4

BN34458

U-BOLT

1/4" x 1.12 ID CR RD

1шт.

5

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

6

BN55359

LOCK NUT,1/4"-20, SS

16шт.

7

BN55379

BOLT,1/4"-20 X 2-1/4", Stainless Steel

8шт.

8

BN65324

CLAMP

1" OD, Poly

4шт.

9

BN66858

HOSE

1" EPDM x 31.00"

1шт.

10

BN67983

SUPPORT

Outer Spray Bar

1шт.

11

BN68011

U-BOLT

BOLT "U" 1/4-20 UNC, 1" Pipe

1шт.

12

BN68981

BRACKET

Spray Bar

4шт.

13

BN73553

PLUG

3/4" NPT, Poly

1шт.

14

BN74619

CAP

with gasket tee jet black

5шт.

15

BN310447

HOSE CLAMP

#20, Stainless Steel

3шт.

15

BN75990

HOSE CLAMP

#16, Stainless Steel

3шт.

16

BN311249

PLATE

Top, Single, Size 3

4шт.
