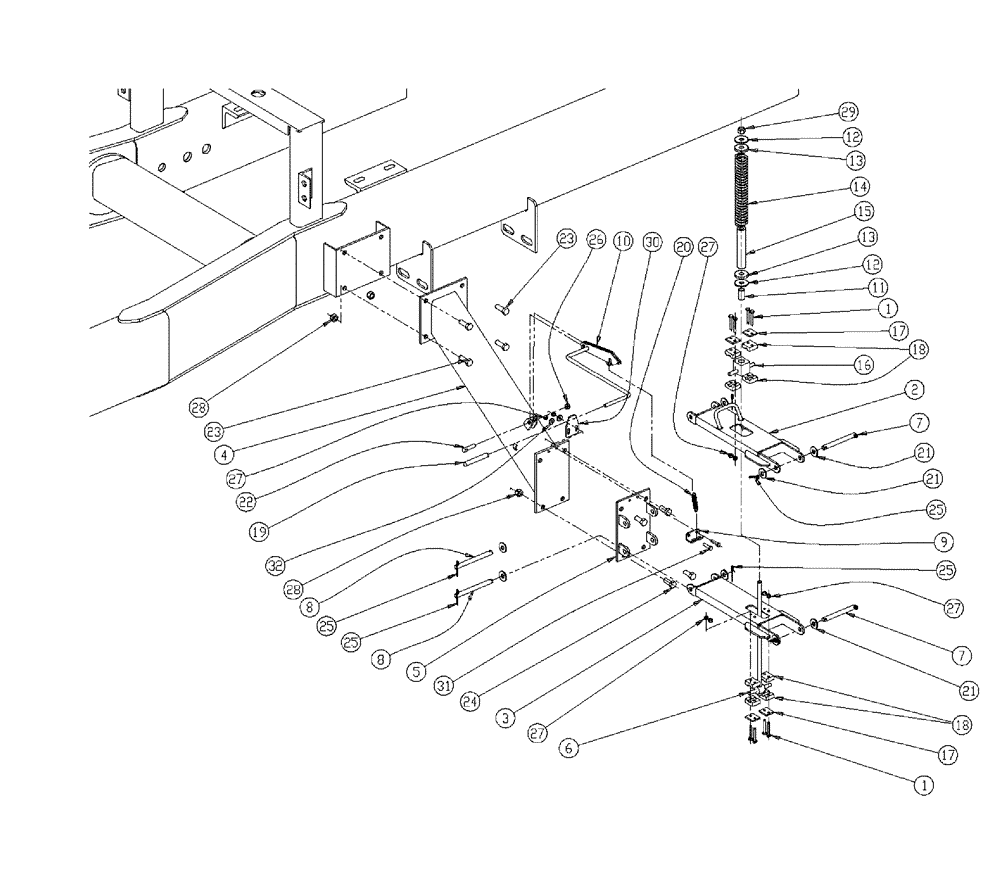

Запчасти Case IH 438 (20-004) - INDUCTOR MOUNT GROUP Reload Control & Chemical Eductor

1

BN300395

BOLT,1/4"-20 x 1-3/4", Stainless Steel

8шт.

2

BN313552

LINK

Inductor, Upper

1шт.

3

BN313553

LINK

Inductor, Lower

1шт.

4

BN312964

BRACKET, SUPPORTING

Mount, Inductor

1шт.

5

BN312965

MOUNTING PLATE

Inductor Links

1шт.

6

BN311873

PIVOT

Rod, Spring

1шт.

7

BN311876

Upper Pivot

2шт.

8

BN311877

PIN

Lower Pivot

2шт.

9

BN312966

BRACKET

Latch Spring

1шт.

10

BN311879

LATCH

And Handle

1шт.

11

BN311880

PIVOT

Spring

1шт.

12

BN311881

WASHER

1.63 X 10 GA

2шт.

13

BN311882

WASHER

1.63 X .25 Rubber

2шт.

14

BN311883

SPRING

1.55 X 9.75 X .207, SS

1шт.

15

BN311884

BUSHING

Inductor Stop

1шт.

16

BN313394

PIVOT

Block, Shaft

1шт.

17

BN311886

PLATE

Top, Single, Size 1

4шт.

18

BN311887

Single, 3/8 Tube

4шт.

19

BN311888

CAP

Round, .375 ID X 3, BLK

1шт.

20

BN311889

SPRING

.50 X 2.00 X .067, SS

1шт.

21

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

8шт.

22

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

1шт.

23

50285

BOLT Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

24

50283

BOLT Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

25

BN50604

COTTER PIN

1/8 X 1&1/2

8шт.

26

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

1шт.

27

BN55359

LOCK NUT,1/4"-20, SS

10шт.

28

BN55362

LOCK NUT

1/2-13, NLN, G5

8шт.

29

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

1шт.

30

BN312967

LATCH

Stop

1шт.

31

BN50688

BOLT,Hex, 1/4" - 20 x 1-1/4", SST

1/4"-20 X 1-1/4", Stainless Steel

2шт.

32

BN50138

WASHER,1/4", SS

2шт.
