(01-002) - GATE GROUP, AUXILARY BIN

Запчасти Case IH 438 (01-002) - GATE GROUP, AUXILARY BIN Basic Unit

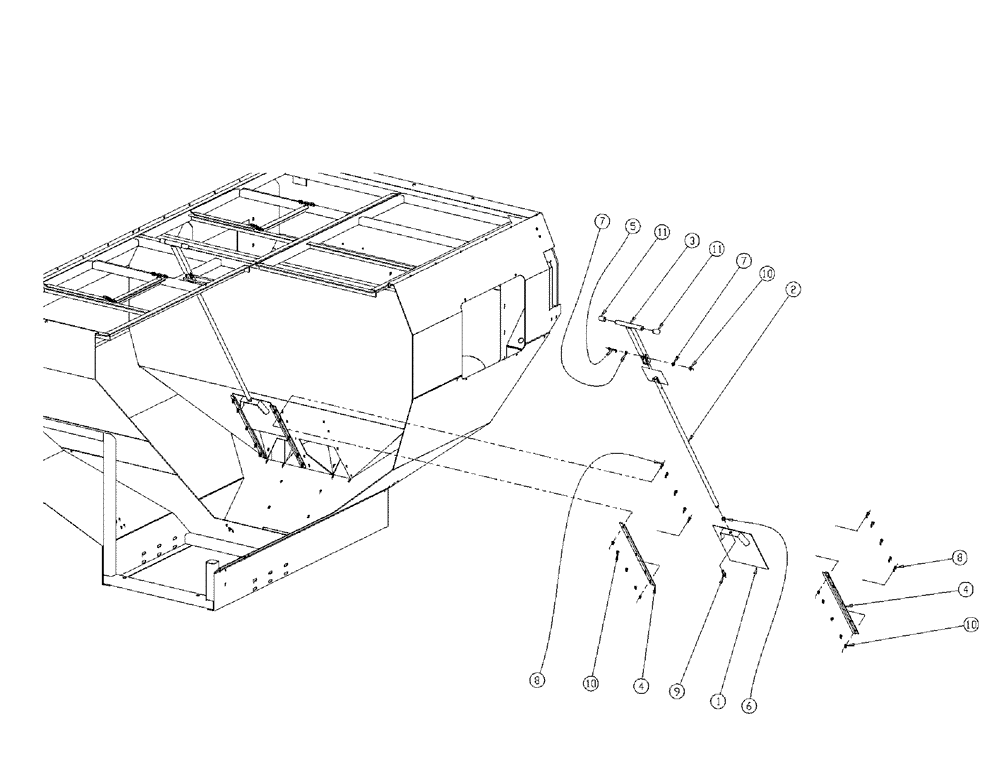

Схема запчастей Case IH 438 - (01-002) - GATE GROUP, AUXILARY BIN Basic Unit
9
1
10
4
10
11
7
2
10
5
11
8
7
4
6
8
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN311028

GATE ASSY

Auxiliary Bin

2шт.

2

BN311029

ROD

Auxiliary Bin Gate

2шт.

3

BN311030

HANDLE

Auxiliary Bin Gate

2шт.

4

BN311036

SLIDE

Auxiliary Bin Gate

4шт.

5

BN311038

NUT

5/16-18 X 2, HH, SS

2шт.

6

BN50071

NUT,1/2"-13, Stainless

2шт.

7

BN50142

WASHER,5/16", Stainless Steel

4шт.

8

BN50476

BOLT,5/16"-18 x 0.75", Stainless

20шт.

9

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

2шт.

10

BN55361

NUT,5/16"-18, Nylon, Stainless

22шт.

11

BN65712

CAP

Round, .937 ID x 1.50 IL

4шт.
