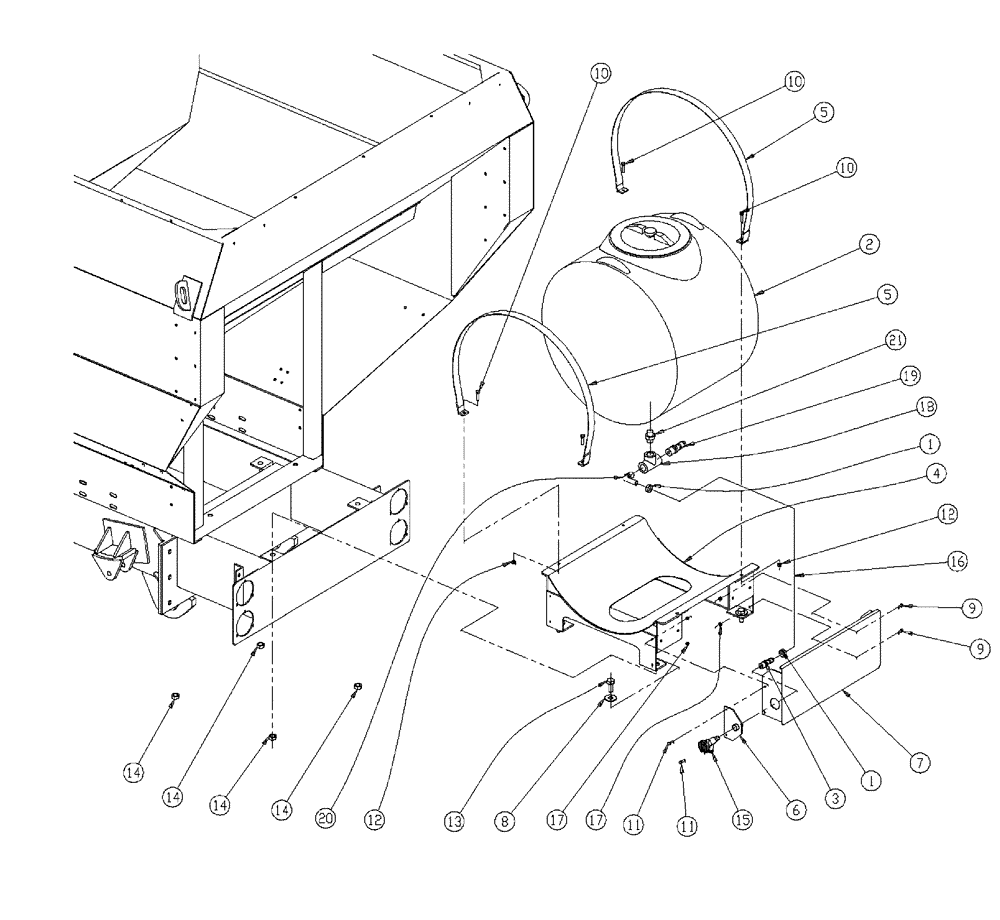

Запчасти Case IH 438 (21-009) - TANK & CRADLE GROUP, PRESSURE WASHER Pressure Washer

1

BN310446

HOSE CLAMP

#12, Stainless Steel

2шт.

2

BN311561

TANK

Poly, 65 Gallon

1шт.

3

BN322536

ADAPTER,1/2" Male NPT x 3/4" Hose Barb, Poly

1/2" MPT x 3/4" Hose Barb, Poly

1шт.

4

BN320719

SUPPORT

Cradle, 65 Gallon Tank

1шт.

5

BN312120

STRAP

65 Gallon Tank

2шт.

6

BN312121

MOUNTING PLATE

Water Valve

1шт.

7

BN312122

COVER

Tank Cradle Back

1шт.

8

BN50157

WASHER

3/4, G5

4шт.

9

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

10

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

4шт.

11

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

2шт.

12

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

13

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

4шт.

14

BN50969

NUT

3/4-10, NLN, G5

4шт.

15

BN53817

DRAIN VALVE

Plastic, 1/2" NPT

1шт.

16

BN53863

EPDM 3/4" ID x 21"

1шт.

17

BN55359

LOCK NUT,1/4"-20, SS

4шт.

18

BN73560

TEE

3/4" NPT, Poly

1шт.

19

BN73561

FITTING

Barb, 3/4 NPT X 3/4 HS

1шт.

20

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

1шт.

21

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

1шт.
