Запчасти Case IH 438 (21-008) - PRESSURE WASHER W/WET KIT PLMBG Pressure Washer

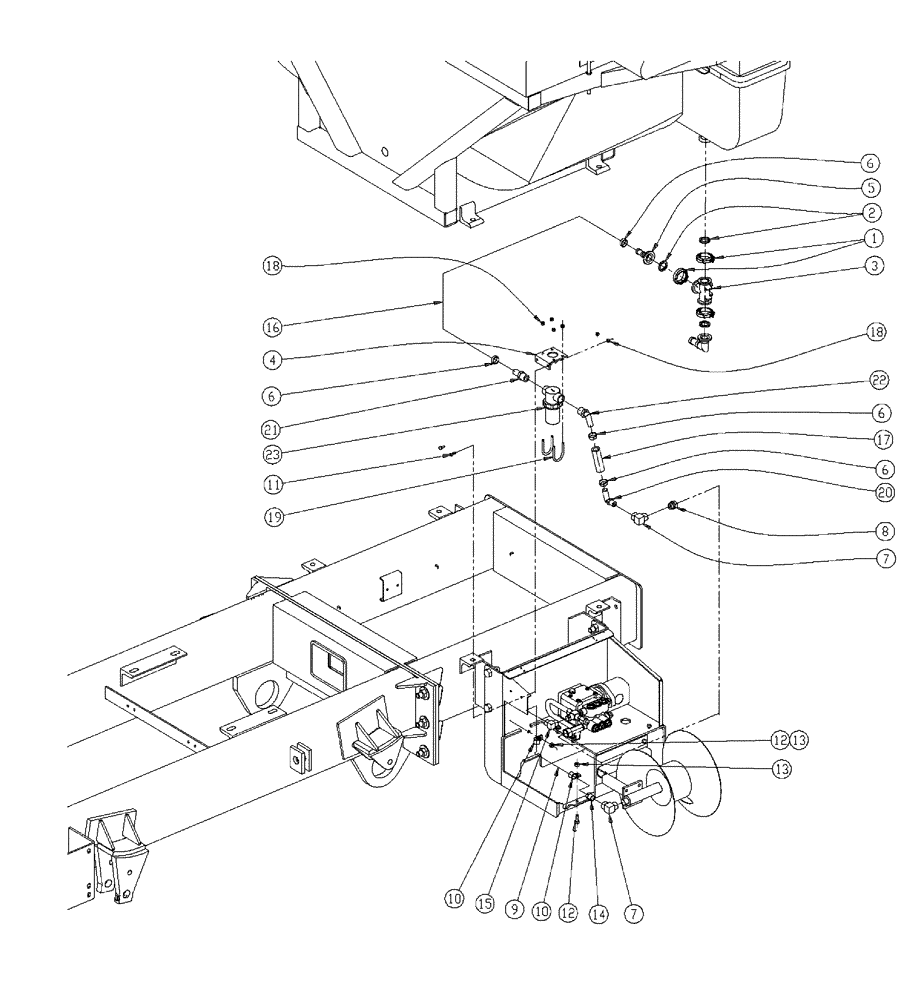

Схема запчастей Case IH 438 - (21-008) - PRESSURE WASHER W/WET KIT PLMBG Pressure Washer
8
12
13
2
10
15
3
18
7
12
9
1
17
6
7
16
6
13
5
18
6
19
23
4
22
10
14
6
20
21
11

Артикул

Название

Примечание

Количество

1

BN303203

CLAMP,1" Flange

1 FL

2шт.

2

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

2шт.

3

405787A1

TEE,1" Flanged Tee

poly 1 flange manifold

1шт.

4

BN304533

MOUNTING PLATE

Strainer

1шт.

5

BN306904

FITTING,1" Flange x 3/4" Hose Barb

STR 1" Flange X.75 HB

1шт.

6

BN310446

HOSE CLAMP

#12, Stainless Steel

4шт.

7

BN311525

FITTING

08 NPTF-08 NPTF 90

2шт.

8

BN311603

COUPLING

3/4-11.5 NHM, 1/2-14 NPTM

1шт.

9

BN311605

HOSE,39.00"

1шт.

10

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

11

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

12

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

13

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

14

BN51102

FITTING

ADPT, 1/2 NPT x 3/8 NPT, STL

1шт.

15

BN51128

ADAPTER

06 NPTF-06 NPTF 90

1шт.

16

BN53914

HOSE,0.75" ID x 60.00"

1шт.

17

BN53916

Hose-3/4" ID EPDM X 4"

1шт.

18

BN55359

LOCK NUT,1/4"-20, SS

6шт.

19

BN68011

U-BOLT

BOLT "U" 1/4-20 UNC, 1" Pipe

2шт.

20

BN73519

ELBOW

1/2" NPT x 3/4" Hose Barb

1шт.

21

BN73561

FITTING

Barb, 3/4 NPT X 3/4 HS

1шт.

22

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

1шт.

23

BN73567

FILTER STRAINER

3/4"

1шт.

Выбрано товаров: 23
