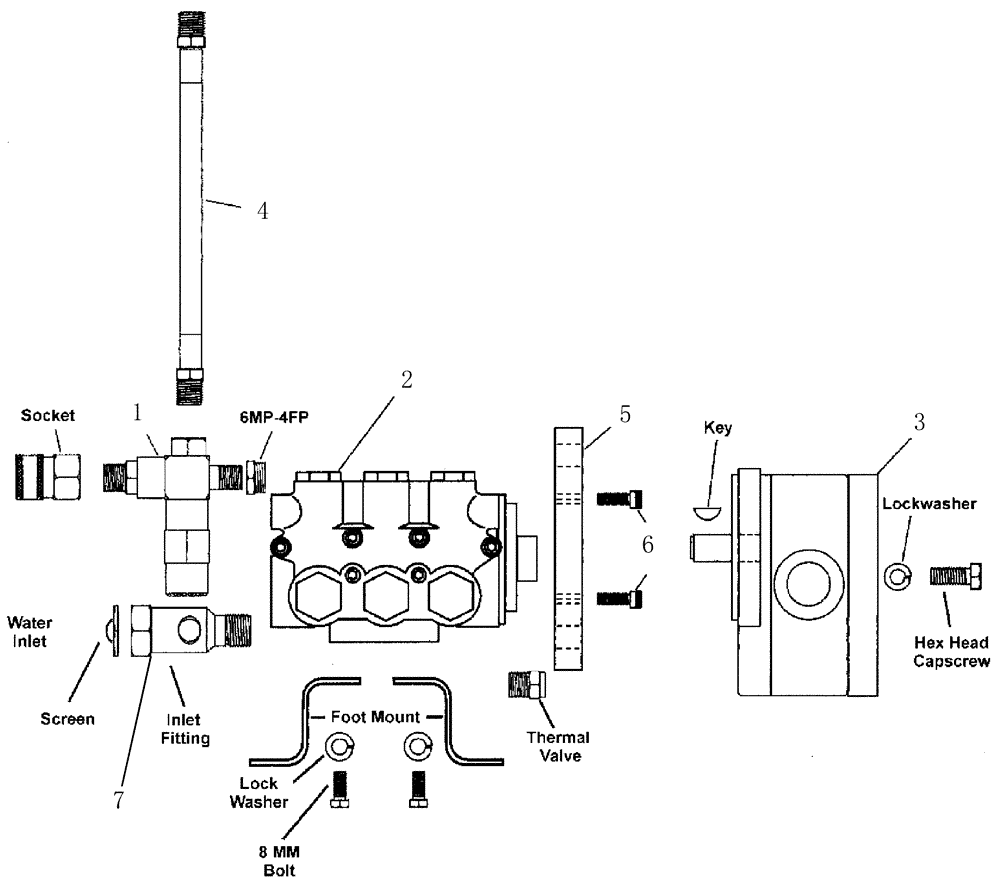

Запчасти Case IH 438 (21-002) - PRESSURE WASHER REPAIR PARTS Pressure Washer

1

BN313234

VALVE

Unloader

1шт.

2

BN313235

PUMP

1шт.

See Fig. 21-004

1шт.

3

NSS

NOT SOLD SEPARAT

1шт.

See Fig. 21-003

1шт.

4

BN311612

HOSE,12.00"

1шт.

5

84160035

PLATE

Pressure Washer Adapter

1шт.

6

NS

NOT SERVICED

SCREW Cap, Socket Head, M6-20

2шт.

7

84285528

FITTING

Inlet, With Screen

1шт.
