(11-005) - FITTING GROUP, FLEX, 4330

Запчасти Case IH 438 (11-005) - FITTING GROUP, FLEX, 4330 Hydraulic Plumbing

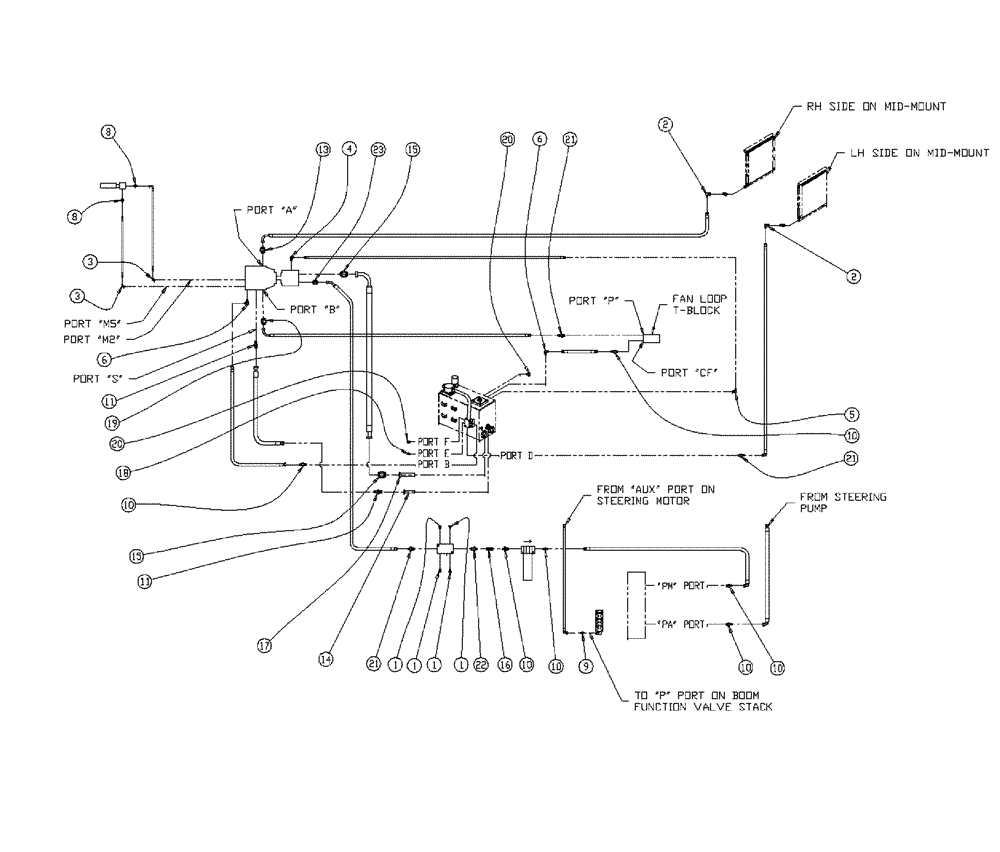

Схема запчастей Case IH 438 - (11-005) - FITTING GROUP, FLEX, 4330 Hydraulic Plumbing
10
8
2
21
8
6
18
1
10
20
11
16
15
15
14
6
21
1
1
5
9
22
21
2
10
11
10
3
4
3
17
1
13
19
20
10
23
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN21243

PLUG

Hex, 7/8"-14, O-Ring

4шт.

2

BN302447

FITTING

16MOR-16FORX90

2шт.

3

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

2шт.

3a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

3b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

4

BN302559

FITTING

8MOR-10MB x 90

1шт.

5

BN302560

FITTING

8MOR-12MB x 90

1шт.

6

BN302568

ELBOW

12MOR-12MB x 90

2шт.

8

BN302647

FITTING

6MOR - 8MB

2шт.

9

BN302650

FITTING

8MOR-8MB

1шт.

10

BN302655

FITTING

12Mor-12Mb

6шт.

11

BN302660

FITTING

20MOR-20MB

2шт.

13

BN302793

REPAIR KIT

Split Flange, 62-61

1шт.

14

BN303528

STRAINER ASSY.

32MB x -20FB, 100

1шт.

15

BN303630

REPAIR KIT

Splt Flange, 2, Code 61

2шт.

16

BN307956

FITTING

12FOR x 12FORX

1шт.

17

BN310209

FILTER STRAINER

48MB-32SF, 100

1шт.

18

BN446025

PLUG

Hex O-Ring 3/4-16

1шт.

19

BN52315

KIT

1" Split Flange Code 62

1шт.

20

BN54270

PLUG

External, W/O-Ring #12

2шт.

21

BN57223

FITTING

STR 1-5/16 12 O-Ring x 1-7/16 12 Male Flat Face

3шт.

22

BN57233

FITTING

12MOR-16MB

1шт.

23

BN67548

REPAIR KIT

Split Flange Code 61

1шт.
