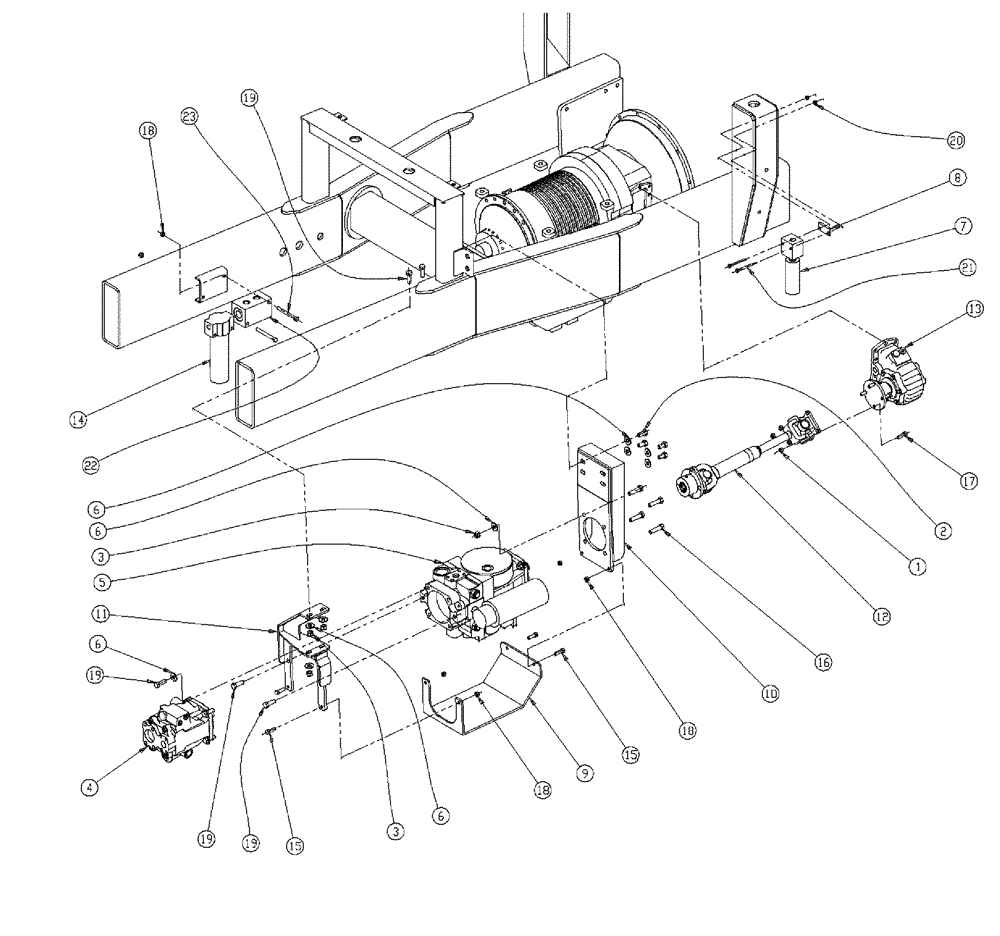

Запчасти Case IH 438 (11-004) - PUMP GROUP, FLEX, 4330 Hydraulic Plumbing

1

BN1470405C

NUT

NC 7/16-14 Flex Lock

4шт.

2

BN300367

BOLT

1/2-20 X 1, HH, G8

4шт.

3

BN300407

FLANGE NUT

Flg, 1/2"-13, G8

8шт.

4

NSS

NOT SOLD SEPARAT

Pump, HYD-Series 45, CW, 14T

1шт.

See Fig. 13-004

1шт.

5

NSS

NOT SOLD SEPARAT

Pump, HYD-Series 90, CW, 14T

1шт.

See Fig. 13-001

1шт.

6

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

16шт.

7

84155893

VALVE POPPET

48 SEC, Motorized Relief

1шт.

8

BN310240

SPACER

Remote Servo

1шт.

9

BN311272

GUARD

Pumps, 4330

1шт.

10

BN311273

BRACKET, SUPPORTING

Mount, Pump, Front, 4330

1шт.

11

BN311274

MOUNTING PLATE

Pump, Rear, 4330

1шт.

12

NSS

NOT SOLD SEPARAT

Driveline, Flex, 4330

1шт.

See Fig. 15-002

1шт.

13

BN311336

PTO

RH W/1.5" SPLN & Flange

1шт.

14

NSS

NOT SOLD SEPARAT

Fairy-Arlon, HI P

1шт.

See Fig. 13-005

1шт.

15

BN50258

BOLT,3/8"-16 X 1.25", Stainless

4шт.

16

BN50378

BOLT

1/2-13 X 2, HH, 8, Bk

4шт.

17

413-718

BOLT,Hex, 7/16" - 14 x 1-1/8", Gr 5

4шт.

18

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

6шт.

19

BN55235

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

10шт.

20

BN55359

LOCK NUT,1/4"-20, SS

2шт.

21

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

2шт.

22

BN67505

MANIFOLD

Meter Filter

1шт.

23

BN68212

BOLT

3/8-16 X 4, HH, SS

2шт.
