(13-003) - PUMP, 75CC, 90 SERIES, AUX-C

Запчасти Case IH 438 (13-003) - PUMP, 75CC, 90 SERIES, AUX-C Hydraulic Components

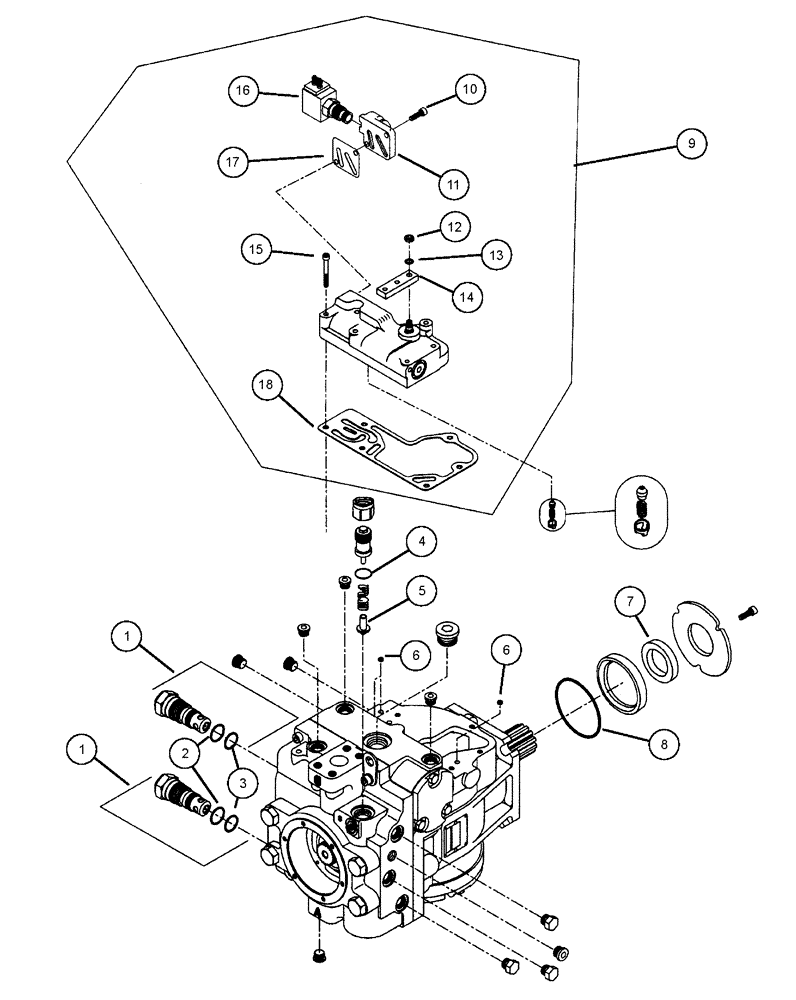

Схема запчастей Case IH 438 - (13-003) - PUMP, 75CC, 90 SERIES, AUX-C Hydraulic Components
1
8
6
17
11
14
9
10
2
3
1
13
12
7
4
16
18
15
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN65540

VALVE

Multi-Function 90 Series

2шт.

Includes 1 Each Of Refs. 2 & 3

1шт.

2

BN65541

O-RING

M/F Valve Upper

2шт.

3

BN65542

O-RING

M/F Valve Lower

2шт.

4

BN313401

O-RING

1шт.

5

BN313402

POPPET

Relief

1шт.

6

BN313403

SCREEN

Filter

2шт.

7

BN65546

SEAL

Lip, Shaft 75 CC

1шт.

8

BN313405

O-RING

1шт.

9

BN306567

CONTROL

With Solenoid Valve

1шт.

Includes 1 Each Of Refs. 10, 11, 12, 13, 14, 15, 16, 17, 18

1шт.

11

NSS

NOT SOLD SEPARAT

Manifold

1шт.

12

NSS

NOT SOLD SEPARAT

Nut

1шт.

13

NSS

NOT SOLD SEPARAT

Toothlock Washer

1шт.

14

NSS

NOT SOLD SEPARAT

Control Handle

1шт.

15

NSS

NOT SOLD SEPARAT

Screw

1шт.

16

BN306569

SOLENOID VALVE

1шт.

17

BN306570

GASKET

Manifold

1шт.

18

BN68509

GASKET

Control Body

1шт.
