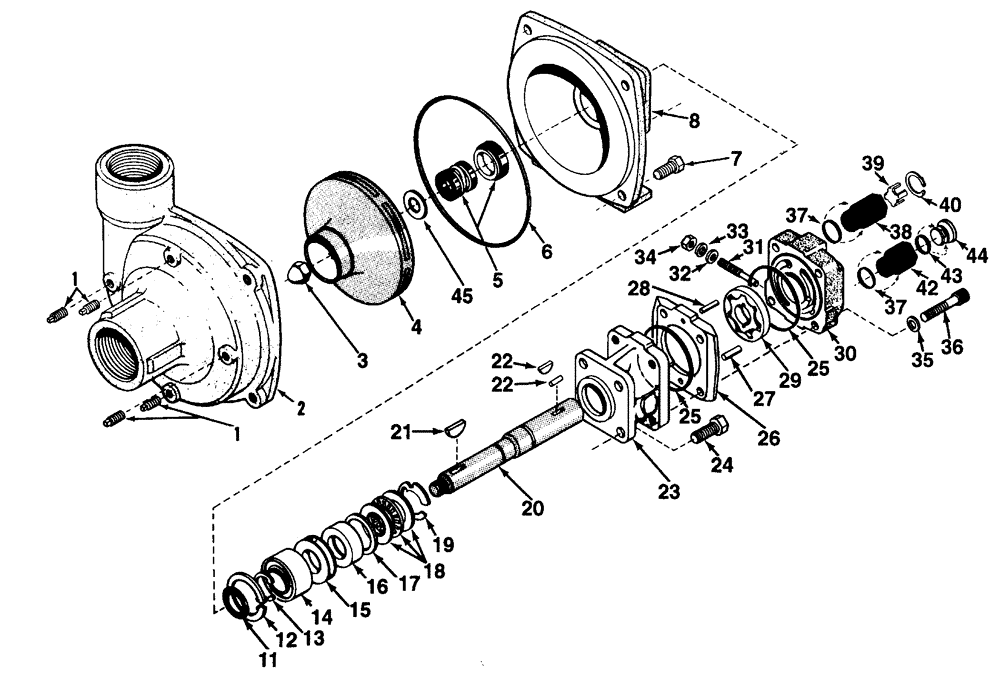

Запчасти Case IH 438 (13-001) - PUMP-HYPRO 2" INLET, 9304C-HM1C Hydraulic Components

BN312974

REPAIR KIT

1шт.

Includes Refs. 5, 6, and 45 (Seal And Geroter Kits)

1шт.

BN312973

SEAL KIT

1шт.

Includes Refs. 14, 16, 32, 33 and 2 each of 25 And 37 (Seal And Geroter Kits)

1шт.

BN53769

REPAIR KIT

Gerotor - HM1 Model

1шт.

Includes Refs. 25, 26 And 29

1шт.

BN53771

HYDRAULIC MOTOR

HM1 (Seal & Geroter Kits)

1шт.

1

NSS

NOT SOLD SEPARAT

Vent Plug (Liquid Pump)

4шт.

2

NSS

NOT SOLD SEPARAT

Casing (Volute) Incl. SS Wear Ring (Liquid Pump)

1шт.

3

BN53693

NUT

Impeller #3 (Liquid Pump)

1шт.

4

BN312971

IMPELLER

(Cast Iron) (Liquid Pump)

1шт.

5

NSS

NOT SOLD SEPARAT

Mechanical Seal (Viton) (Liquid Pump)

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring (Liquid Pump)

1шт.

7

NSS

NOT SOLD SEPARAT

Hex Head Capscrew (Liquid Pump)

4шт.

8

NSS

NOT SOLD SEPARAT

Mounting Flange (Liquid Pump)

1шт.

11

NSS

NOT SOLD SEPARAT

Slinger Ring (Liquid Pump)

1шт.

12

NSS

NOT SOLD SEPARAT

Retaining Ring (Liquid Pump)

1шт.

13

NSS

NOT SOLD SEPARAT

Snap Ring (Liquid Pump)

1шт.

14

NSS

NOT SOLD SEPARAT

Ball Bearing (Liquid Pump)

1шт.

15

NSS

NOT SOLD SEPARAT

Spacer (Liquid Pump)

1шт.

16

NSS

NOT SOLD SEPARAT

Shaft Seal (Liquid Pump)

1шт.

17

NSS

NOT SOLD SEPARAT

Seal Spacer (Liquid Pump)

1шт.

18

NSS

NOT SOLD SEPARAT

Thrust Bearing ASSY (Liquid Pump)

1шт.

NSS

NOT SOLD SEPARAT

Thrust Bearing (Liquid Pump)

1шт.

Parts Of Thrust Bearing Assy.

1шт.

NSS

NOT SOLD SEPARAT

Thrust Bearing Races (Liquid Pump)

2шт.

Parts Of Thrust Bearing Assy.

1шт.

19

NSS

NOT SOLD SEPARAT

Snap Ring (Liquid Pump)

1шт.

20

NSS

NOT SOLD SEPARAT

Shaft (Liquid Pump)

1шт.

21

NSS

NOT SOLD SEPARAT

Woodruff Key (Liquid Pump)

1шт.

22

NSS

NOT SOLD SEPARAT

Roll Pin (Liquid Pump)

1шт.

23

NSS

NOT SOLD SEPARAT

Front Motor Body (Incl. Main Bearing) (Liquid Pump)

1шт.

24

NSS

NOT SOLD SEPARAT

Hex Head Capscrew (Liquid Pump)

4шт.

25

NSS

NOT SOLD SEPARAT

O-Ring (Liquid Pump)

2шт.

26

NSS

NOT SOLD SEPARAT

Gerator Housing (Liquid Pump)

1шт.

27

NSS

NOT SOLD SEPARAT

Dowel Pin (Liquid Pump)

1шт.

28

NSS

NOT SOLD SEPARAT

Dowel Pin (Liquid Pump)

1шт.

29

NSS

NOT SOLD SEPARAT

Gerotor (Liquid Pump)

1шт.

30

NSS

NOT SOLD SEPARAT

Motor End Plate (Incl. Main Bearing) (Liquid Pump)

1шт.

31

NSS

NOT SOLD SEPARAT

Bypass Adjusting Screw (Liquid Pump)

1шт.

32

NSS

NOT SOLD SEPARAT

Gasket (Liquid Pump)

1шт.

33

NSS

NOT SOLD SEPARAT

Washer (Liquid Pump)

1шт.

34

NSS

NOT SOLD SEPARAT

Lock Nut (Liquid Pump)

1шт.

35

NSS

NOT SOLD SEPARAT

Washer (Liquid Pump)

4шт.

36

NSS

NOT SOLD SEPARAT

Capscrew (Liquid Pump)

4шт.

37

NSS

NOT SOLD SEPARAT

O-Ring (Liquid Pump)

2шт.

38

NSS

NOT SOLD SEPARAT

Tank Port Adapter (Liquid Pump)

1шт.

39

NSS

NOT SOLD SEPARAT

Poppet (Liquid Pump)

1шт.

40

NSS

NOT SOLD SEPARAT

Retaining Ring (Liquid Pump)

1шт.

42

NSS

NOT SOLD SEPARAT

Pressure Port Adapter (Liquid Pump)

1шт.

45

NSS

NOT SOLD SEPARAT

Rubber Gasket (Liquid Pump)

1шт.

46

NSS

NOT SOLD SEPARAT

Washer (Liquid Pump)

1шт.
