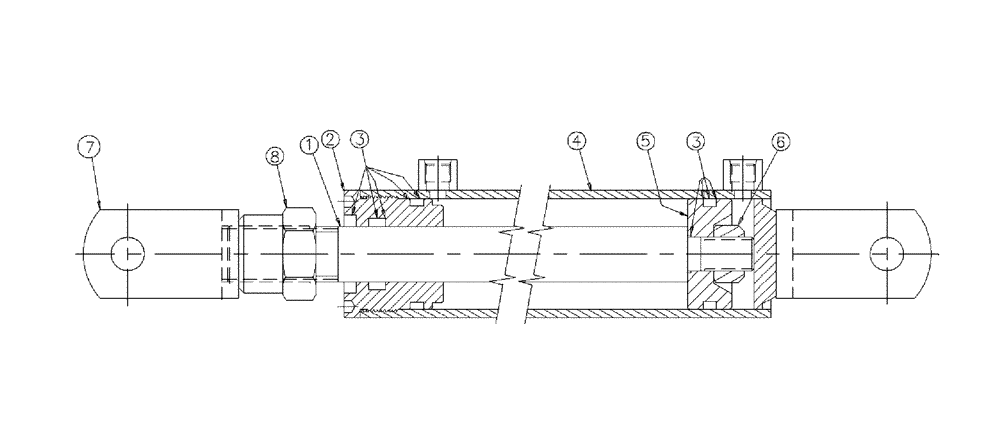

Запчасти Case IH 438 (12-003) - CYLINDER, 2.5 X 20, SAE PORTS Hydraulic Components

0

BN304689

CYLINDER,Double Acting, 31.75mm Rod, 508mm Stroke

Complete

1шт.

1

BN313152

SHAFT

1шт.

2

BN67693

GLAND

End

1шт.

3

BN67694

SEAL KIT

1шт.

4

BN313153

TUBE

1шт.

5

BN67696

PISTON

1шт.

6

BN98093

LOCK NUT

Jam, 3/4"-16

1шт.

7

BN98646

CLEVIS

Threaded

1шт.

8

BN313154

JAM NUT

1-1/4-12 UNF Jam

1шт.
