Запчасти Case IH 438 (10-002) - EXTENSION GROUP, 4-MID, FLEX LIQUID Extensions & Mount Group

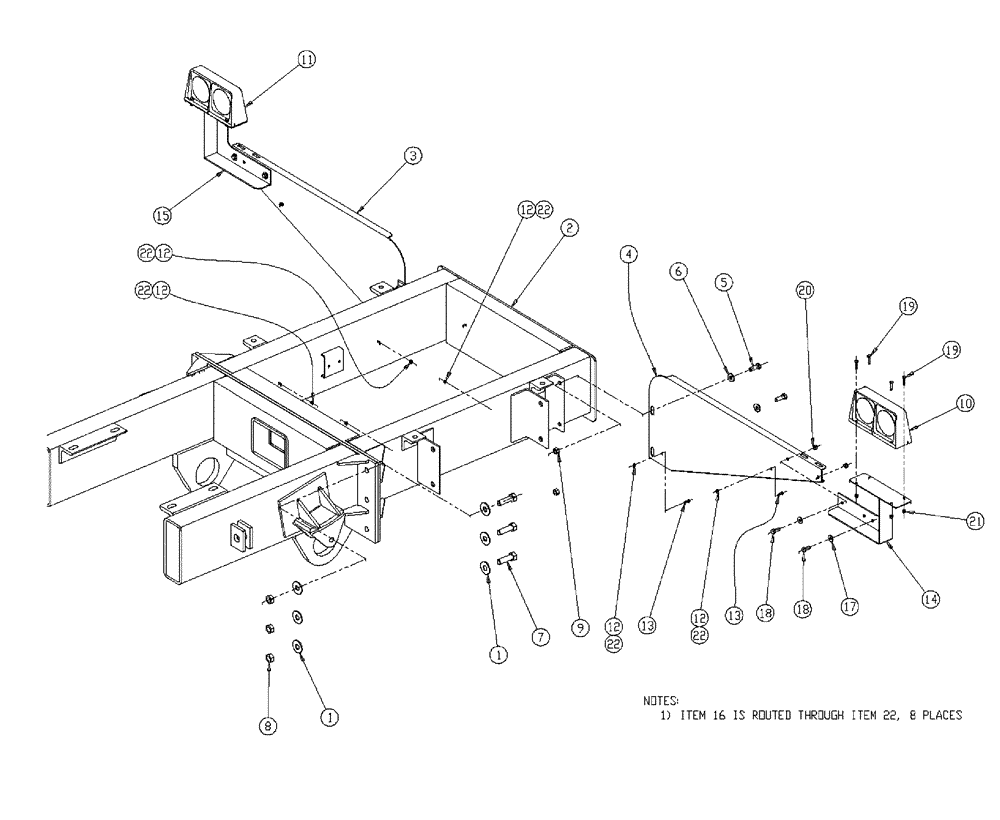

Схема запчастей Case IH 438 - (10-002) - EXTENSION GROUP, 4-MID, FLEX LIQUID Extensions & Mount Group
19
22
20
12
22
12
15
22
12
13
18
19
1
7
8
21
12
3
12
18
13
4
14
22
22
9
10
11
2
17
5
1
6

Артикул

Название

Примечание

Количество

1

BN247218

Hardened 3/4 WA17

12шт.

2

BN307629

REPAIR KIT

EXTN, Wet Kit 44-1/2

1шт.

3

BN309263

TUBE

RH

1шт.

4

BN309264

TUBE

LH

1шт.

5

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

4шт.

6

BN50595

WASHER,1/2", Stainless

4шт.

7

BN50956

BOLT

3/4-10 X 2.5, HH, G8

6шт.

8

BN50999

LOCK NUT

3/4-10 Top, 8, PL

6шт.

9

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

4шт.

10

BN307190

LIGHT

dual- w/brake LH

1шт.

11

BN307191

LIGHT

dual w/brake RH

1шт.

12

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

8шт.

13

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75, BSH, Stainless Steel

4шт.

14

BN312810

MOUNTING PLATE

Light, RH

1шт.

15

BN312811

MOUNTING PLATE

Light, LH

1шт.

16

BN312830

WIRE HARNESS

Rear Lights, Flex

1шт.

17

BN50146

WASHER,3/8", Stainless

4шт.

18

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

19

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

8шт.

20

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

21

BN55359

LOCK NUT,1/4"-20, SS

8шт.

22

BN9990114

STRAP

"Eye Ty" 06205 3M

8шт.

Выбрано товаров: 22
