Запчасти Case IH 438 (10-001) - EXTENSION GROUP, 4-MID Extensions & Mount Group

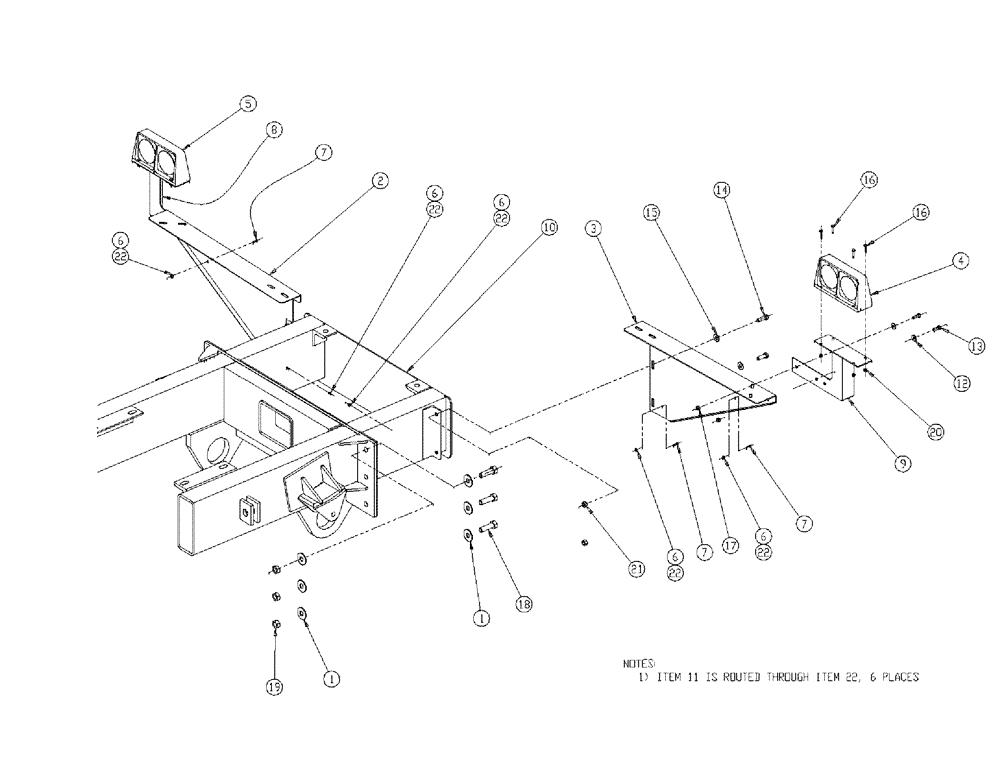

Схема запчастей Case IH 438 - (10-001) - EXTENSION GROUP, 4-MID Extensions & Mount Group
7
22
18
1
22
20
14
21
6
6
3
8
2
7
7
12
13
4
10
1
16
22
15
17
6
6
5
22
6
9
22
19
16

Артикул

Название

Примечание

Количество

1

BN247218

Hardened, 3/4 WA17

12шт.

2

BN300751

SUPPORT TUBE

RH

1шт.

3

BN300752

SUPPORT TUBE

LH

1шт.

4

BN307190

LIGHT

dual- w/brake LH

1шт.

5

BN307191

LIGHT

dual w/brake RH

1шт.

6

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

6шт.

7

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75, BSH, Stainless Steel

4шт.

8

BN312810

MOUNTING PLATE

Light, RH

1шт.

9

BN312811

MOUNTING PLATE

Light, LH

1шт.

10

BN312815

EXTENSION

Flex-Air

1шт.

11

BN312831

WIRE HARNESS

Rear Lights, Flex

1шт.

12

BN50146

WASHER,3/8", Stainless

4шт.

13

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

14

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

4шт.

15

BN50595

WASHER,1/2", Stainless

4шт.

16

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

8шт.

17

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

18

BN50956

BOLT

3/4-10 X 2.5, HH, G8

6шт.

19

BN50999

LOCK NUT

3/4-10 Top, 8, PL

6шт.

20

BN55359

LOCK NUT,1/4"-20, SS

8шт.

21

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

4шт.

22

BN9990114

STRAP

"Eye Ty" 06205 3M

6шт.

Выбрано товаров: 22
