Запчасти Case IH 438 (07-002) - CO-AP WHEELS MID RATE CO-AP Wheels

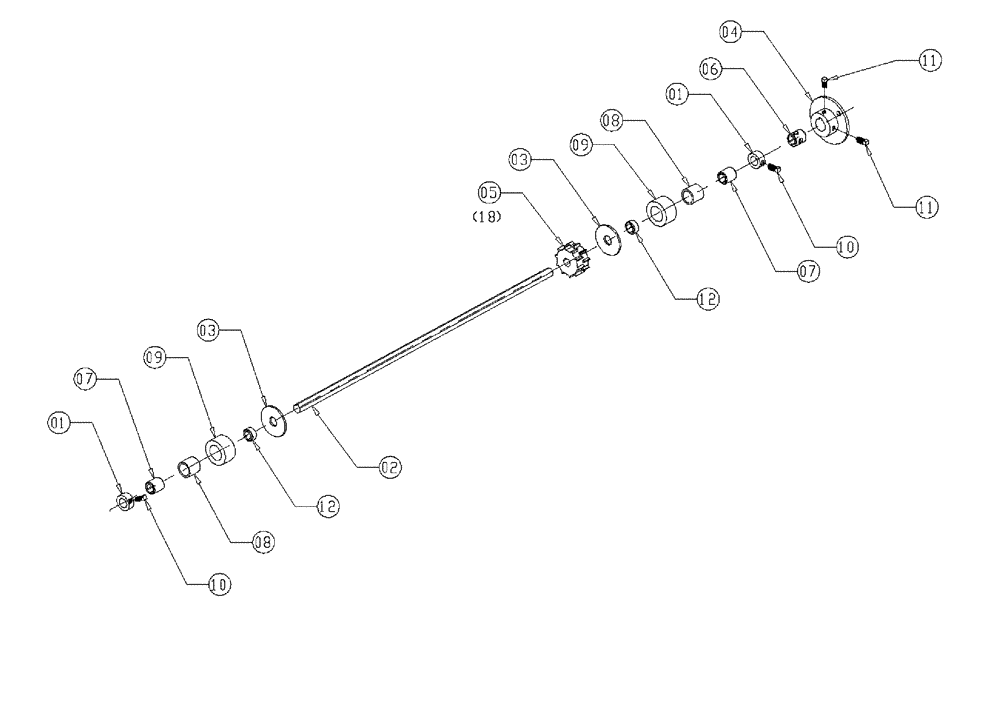

Схема запчастей Case IH 438 - (07-002) - CO-AP WHEELS MID RATE CO-AP Wheels
01
11
12
05
06
08
09
03
01
07
11
10
09
08
03
10
07
12
02
04

Артикул

Название

Примечание

Количество

0

BN65615

WHEEL ASSY

COAP assembly, mid rate

1шт.

1

BN10054

COLLAR

1 1/4" od x 3/4" id HRST

4шт.

2

BN15362

BAR

Hex, 5/8, 304 SS x 29.5

2шт.

3

BN15969

WASHER

Plastic, Co-Ap Wheel

4шт.

4

BN21398A

COUPLING

Machined

2шт.

5

BN23215

WHEEL

Metering, HI M250/Medflex Red

36шт.

6

BN23106

JOURNAL

Steel

4шт.

7

BN23240

JOURNAL

Nylatron

4шт.

8

BN35909

BUSHING,25.58mm ID x 31.75mm OD x 28.45mm L

Inside, Quick Change

4шт.

9

BN35910

BUSHING,31.6mm ID x 51.94mm OD x 28.45mm L

Outside, Quick Change

4шт.

10

BN50421

SET SCREW

5/16"-18 X 1/2"

4шт.

11

BN50399

BOLT

5/16-18 X 1, SH

4шт.

12

BN65658

BUSHING

1.0 OD x .62 Hex, .50

4шт.

13

BN309412

WASHER,3/4, Stainless Steel

8шт.
