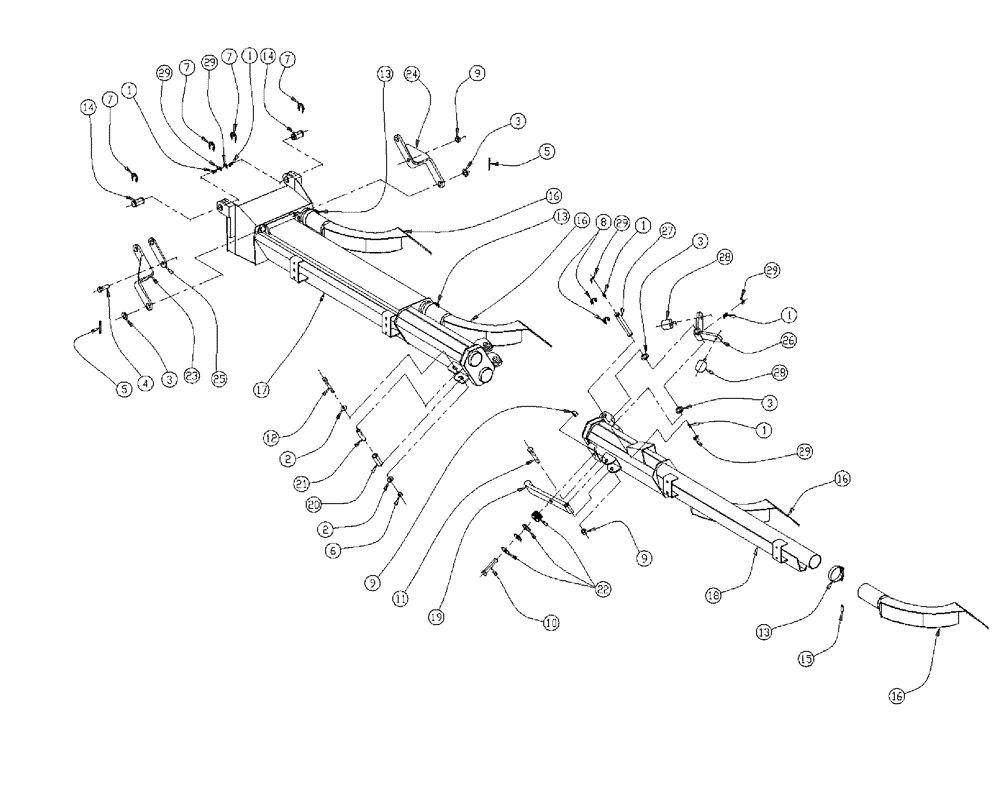

Запчасти Case IH 438 (09-005) - BOOM GROUP, 2.5, OUTER, LH Boom Group

1

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

5шт.

2

BN50146

WASHER,3/8", Stainless

2шт.

3

BN50179

WASHER

WHM, 1.25 OD X .75 ID X 14 GA

4шт.

4

BN50594

BOLT,1/2"-13 x 1.75", Stainless

1шт.

5

BN50604

COTTER PIN

1/8 X 1&1/2

2шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

1шт.

7

BN52335

E-RING,1"

E-Type, 1", SST

4шт.

8

BN52336

CLIP

E-Type, 3/4", SST

2шт.

9

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

3шт.

10

BN55369

BOLT,1/2"-13 x 3", Stainless

1шт.

11

BN55372

BOLT,1/2"-13 x 3.25", Stainless

1шт.

12

BN55373

BOLT,3/8"-16 X 3-1/2", Stainless Steel

1шт.

13

87271751

CLAMP

Hi-Torque

4шт.

14

BN67861

PIN,26.42mm OD x 50.8mm L

Mid Boom Fold

2шт.

15

BN68086

CAP

RND, Rubber, .25 ID x 1.00

4шт.

16

BN68397

DEFLECTOR

2.5, LH

4шт.

17

BN69196

BOOM

Mid, 2.50, LH

1шт.

18

BN69198

BOOM

Outer, 2.50, LH

1шт.

19

BN69290

LINK

Breakaway

1шт.

20

BN69294

ROLLER

Breakaway

1шт.

21

BN69295

SPACER

Breakaway

1шт.

22

BN69452

SPRING

Disc 1.5 X .515 X .07

14шт.

23

BN69456

LINK

Boom Fold, RH

1шт.

24

BN69457

LINK

Boom Fold, LH

1шт.

25

BN69466

SPACER

Boom Fold Links

1шт.

26

BN69467

STOP

Breakaway

1шт.

27

BN69745

PIN,20.07mm OD x 146.05mm L

Outer Boom Fold

1шт.

28

BN25232

BUMPER

1.56" Dia - Urethane

2шт.

29

BN69951

CAP

Grease

5шт.
